- MPQ86760
MPQ86760
Session textval
Session Titefor popup
Description

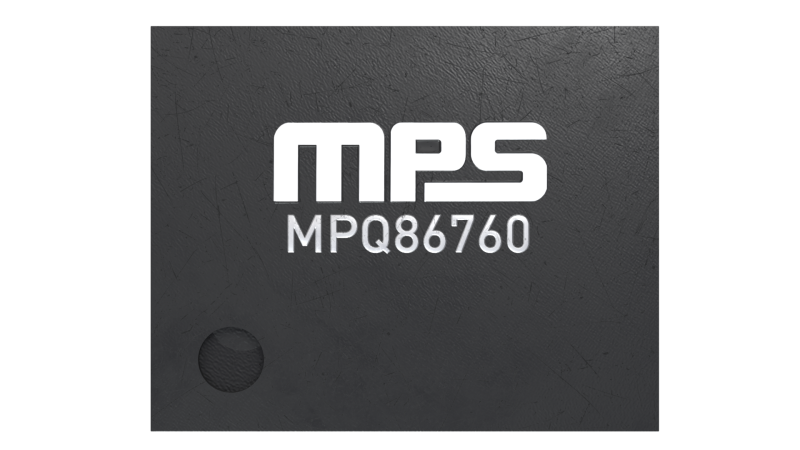

The MPQ86760 is a monolithic half-bridge with built-in internal power MOSFETs and gate drivers. It can achieve up to 45A of continuous output current (IOUT) across a wide input voltage (VIN) range.
The integrated MOSFETs and drivers achieve high efficiency through an optimized dead time (DT) and reduced parasitic inductance.
The MPQ86760 is compatible with tri-state output controllers. It also includes general-purpose current sensing and temperature sensing.
The MPQ86760 is ideal for autonomous driving applications where efficiency and compact size are at a premium. It is available in a TQFN-21 (4mmx5mm) package.
-
Show more
Show less
Features & Benefits
- Wide Operating Input Voltage (VIN) Range
- 45A Output Current (IOUT)
- Accepts Tri-State Pulse-Width Modulation (PWM) Signal
- Built-In Switch for Bootstrap (BST)
- Accu-SenseTM Current Sense
- Temperature Sense
- Current-Limit Protection
- Over-Temperature Protection (OTP)
- Used for Multi-Phase Operation
- Available in a TQFN-21 (4mmx5mm) Package
- Available in AEC-Q100 Grade 1
- Developed for Functional Safety Applications: ISO 26262 Compliant
Active Part Numbers:
MPQ86760GVTE-AEC1-Z MPQ86760GVTE-AEC1-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
