- MPQ86750
MPQ86750
Session textval
Session Titefor popup
Description

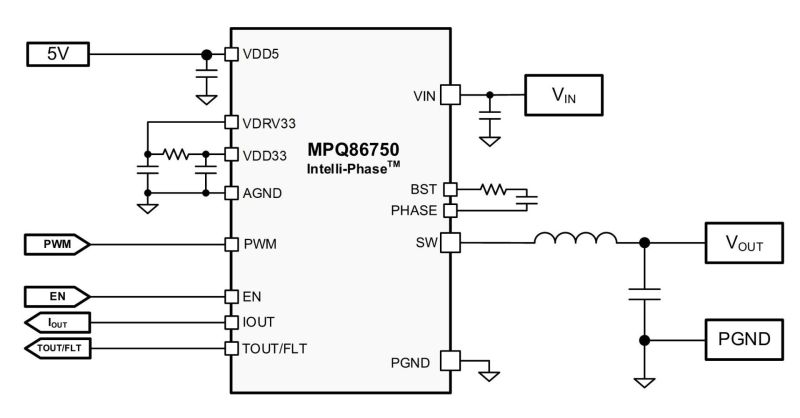

The MPQ86750 is a monolithic, half-bridge Intelli-PhaseTM solution with built-in, internal power MOSFETs and gate drivers. It can achieve up to 50A of continuous output current (IOUT) across a wide input voltage (VIN) range.
The integrated MOSFETs and drivers achieve high efficiency through an optimized dead time (DT) and reduced parasitic inductance.
The MPQ86750 is compatible with tri-state output controllers. It also includes general-purpose current-sensing and temperature-sensing.
The MPQ86750 is ideal for autonomous driving applications, where efficiency and compact size are at a premium. It is available in an LGA-38 (5mmx6mm) package, and is AEC-Q100 qualified.
-
Show more
Show less
Features & Benefits
- Wide Operating Input Voltage (VIN) Range
- 50A of Output Current (IOUT)
- Accepts Tri-State Pulse-Width Modulation (PWM) Signal
- Built-In Switch for Bootstrap (BST)
- Accu-SenseTM Current Sense
- Temperature Sense
- Current-Limit Protection and Fault Flag
- Over-Temperature Protection (OTP) and Fault Flag
- Catastrophic Protection and Fault Flag
- Used for Multi-Phase Operation
- Available in an LGA-38 (5mmx6mm) Package
- Available in AEC-Q100 Grade 1
- MPSafeTM QM: Developed for Functional Safety (Applications: ISO 26262 Compliant)
Active Part Numbers:
MPQ86750GMJT-AEC1-Z MPQ86750GMJT-AEC1-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
