MPQ29252-AEC1
Session textval
Session Titefor popup
Description
The MPQ29252-AEC1 is a digital controller that supports high-current, multi-phase voltage regulators (VRs). The device works together with external power stages to create a hybrid buck or standard multi-phase VR solutions. The MPQ29252-AEC1 can sense current via the inductor's DC resistance (DCR).

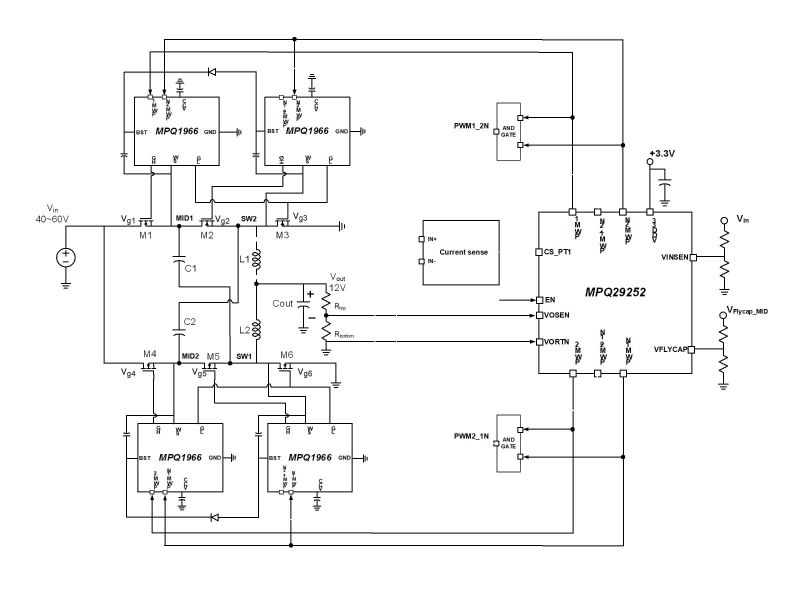

The MPQ29252-AEC1 can be configured for up to 8-phase operation to support 4-block hybrid buck topology with an external AND gate, and can be configured for up to 6-phase operation to support 3-block hybrid buck topology with an internal AND gate (PWMx_xN).
The MPQ29252-AEC1 provides an on-chip non-volatile memory (NVM) to store and restore device configurations. Device configurations and fault parameters can be easily configured or monitored via the PMBus/I2C interface.
The MPQ29252-AEC1 is based on a unique, digital, multi-phase nonlinear control to provide a fast transient response to the load transient with minimal output capacitors. With only one power-loop control method for both steady state and load transient, power loop compensation is very easy to configure.

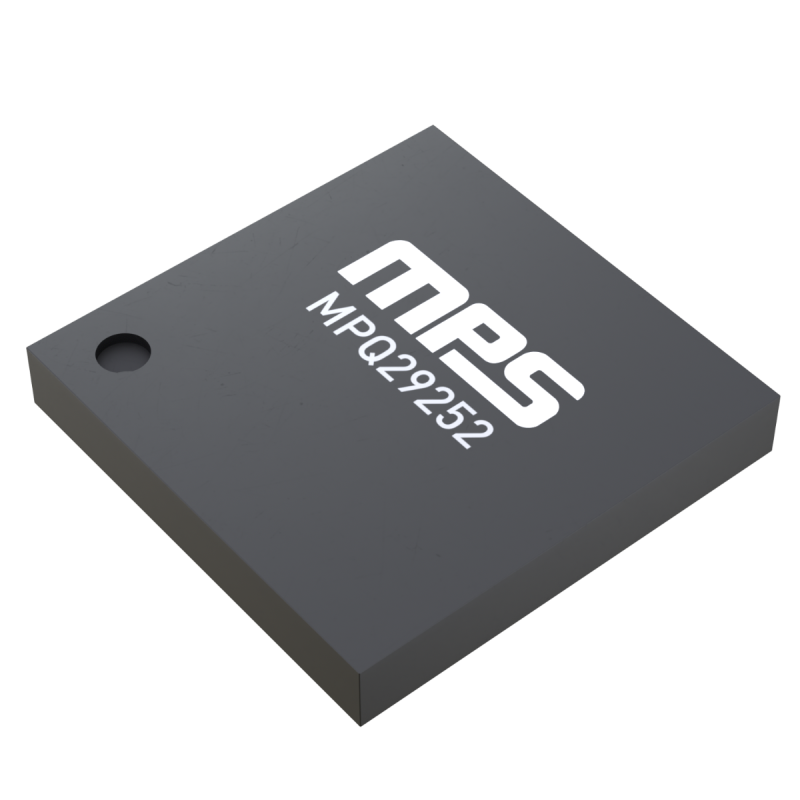

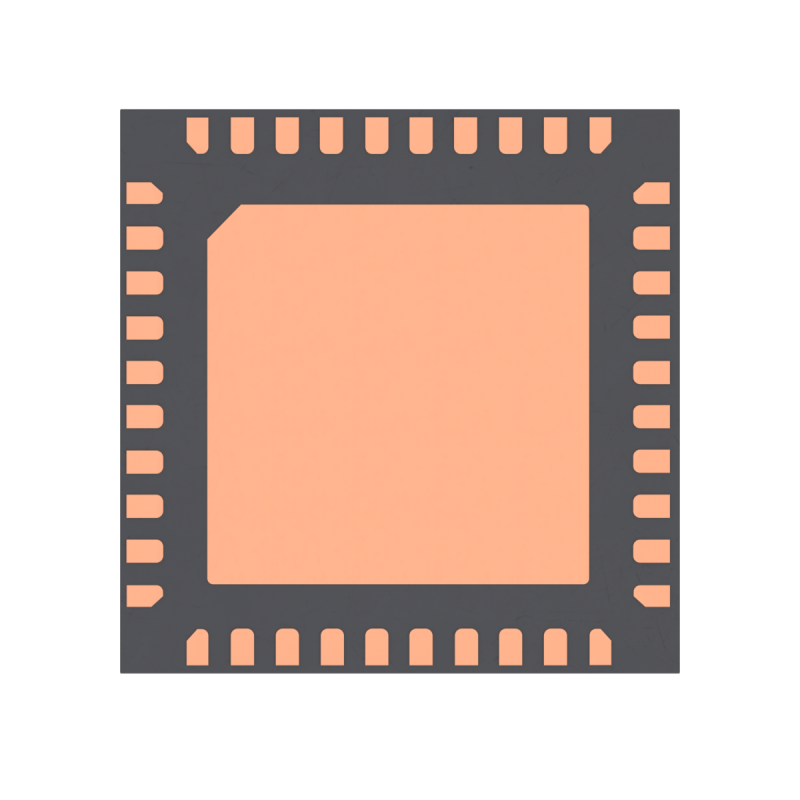

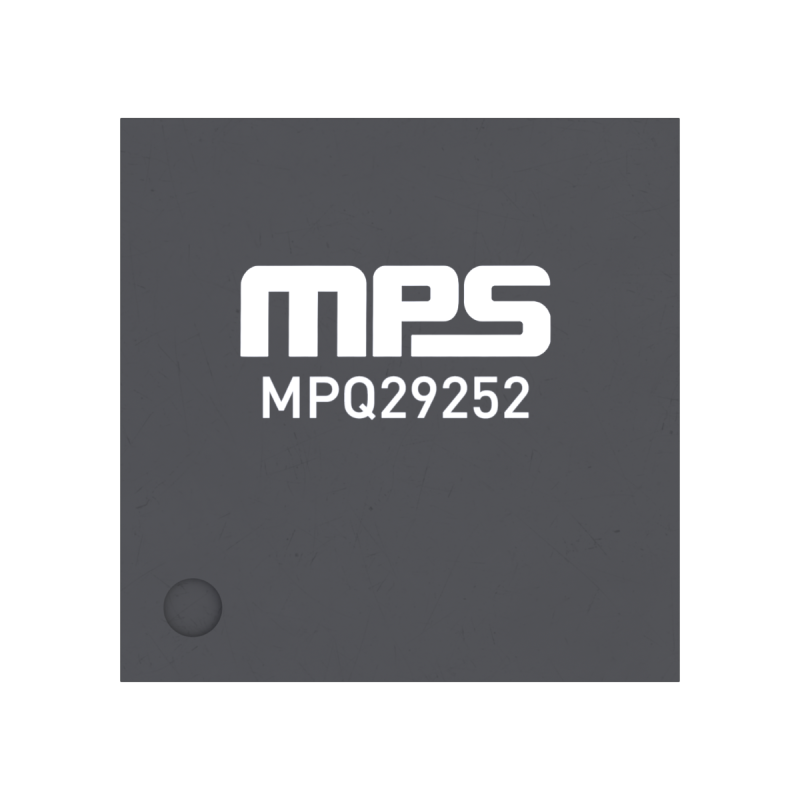

The MPQ29252-AEC1 is available in a TLGA-40 (5mmx5mm) package, and is available in AEC-Q100 Grade 1.
-
Show more
Show less
Features & Benefits
- Up to 8-Phase Digital Controller
- PMBus/I2C Compliant (800kHz Bus Speed)
- Pin-Configurable for PMBus Address
- Built-In Non-Volatile Memory (NVM) to Store Configurations
- 120kHz to 1.5MHz Switching Frequency (fSW)
- Up to 3-Point Block Topology Works with Internal AND Gate
- Up to 4-Point Block Topology Works with External AND Gate
- Automatic Loop Compensation
- Selectable Open-Loop or Closed-Loop Control
- VFLYCAP Under-Voltage (UV) Monitor
- Supports Multi-Configuration for 6 Different Applications
- Active Current Sharing between Modules
- Flexible Output Current (IOUT) Sense via the Inductor's DC Resistance (DCR)
- Phase-to-Phase Active Current Balancing with Configurable Offsets for Thermal Balance
- Input Voltage (VIN), Output Voltage (VOUT), Current, and Power Monitoring
- VIN Under-Voltage Lockout (UVLO), Output Over-Voltage (OVP)/Under-Voltage Protection (UVP), Fast Over-Current Protection (OCP), Slow OCP, Over-Temperature Protection (OTP) with No Action, Latch, or Hiccup Options
- Auto-Records Voltage Regulator (VR) Fault Type to NVM
- Digital Load-Line Regulation
- Overclocking Mode by Adding Offset to VOUT
- Password Lock for Accessing Registers
- Available in a TLGA-40 (5mmx5mm) Package
- Available in AEC-Q100 Grade 1
Active Part Numbers:
MPQ29252GLUT-xxxx-AEC1-Z MPQ29252GLUT-xxxx-AEC1-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
