MPQ86720-AEC1
Session textval
Session Titefor popup
Description
The MPQ86720-AEC1 is a 65V, monolithic, three-level, two-phase driver with built-in power MOSFETs.
The integrated driver and MOSFETS provide high efficiency due to optimal dead time and reduced parasitic inductance. The MPQ86720-AEC1 can operate from 100kHz to 500kHz.
The MPQ86720-AEC1 is ideal for autonomous driving applications where efficiency and small size are at a premium.

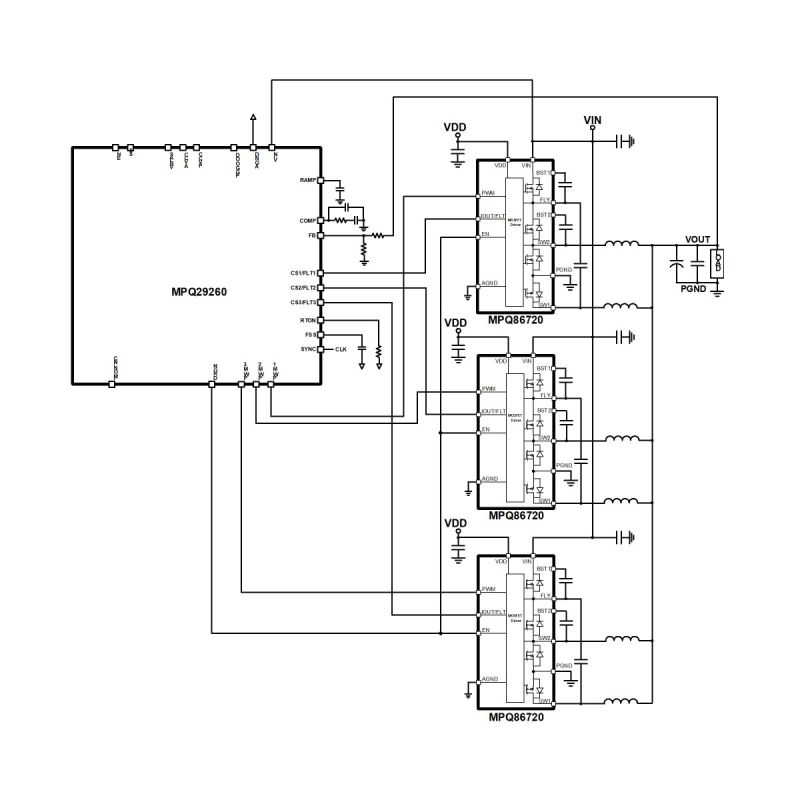

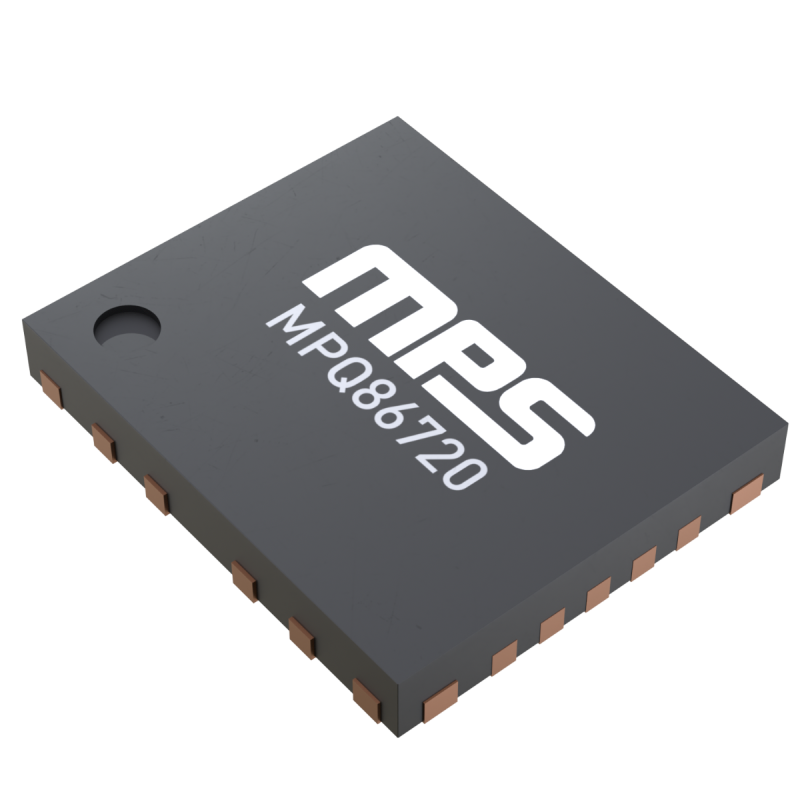

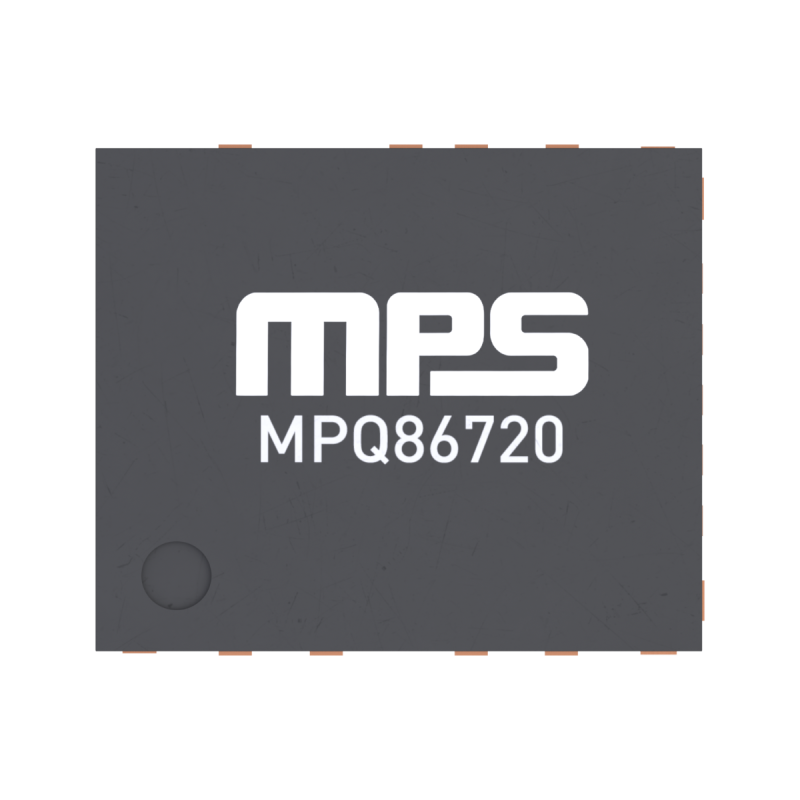

The MPQ86720-AEC1 is available in a TQFN-22 (5mmx6mm) package, and is available in AEC-Q100 Grade 1.
-
Show more
Show less
Features & Benefits
- Three-Level, Two-Phase Driver with Built-in MOSFETs
- Wide 25V to 65V Operating Input Voltage (VIN) Range
- Automatic Average Current Balancing between Phases
- Power-Save Mode at Light Loads (Continuous Conduction Mode Option)
- Built-In Switch for Bootstrap (BST)
- Accu-SenseTM Current Sense
- Current Limit Fault and Protection
- Over-Temperature (OT) Fault and Protection
- Catastrophic Fault Flag and Protection

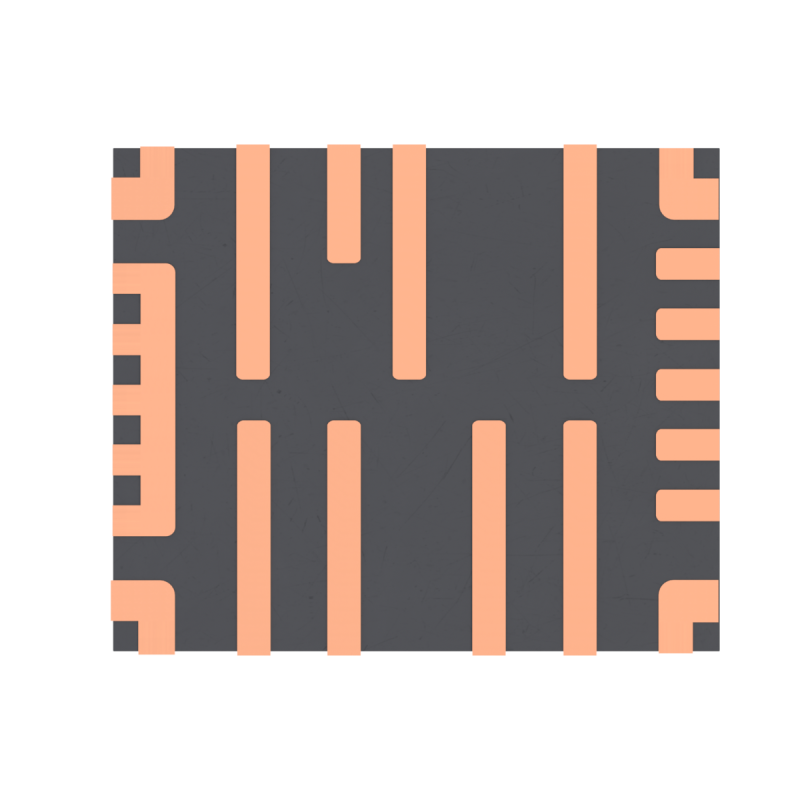

- Available in a TQFN-22 (5mmx6mm) Package
- Available in AEC-Q100 Grade 1
Active Part Numbers:
MPQ86720GQJTE-AEC1-Z MPQ86720GQJTE-AEC1-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
