MPQ79701FS-AEC1

MPQ79701FS-AEC1

MPSafe^TM, ASIL-B, 12-Channel Power Sequencer, AEC-Q100 Qualified

Description

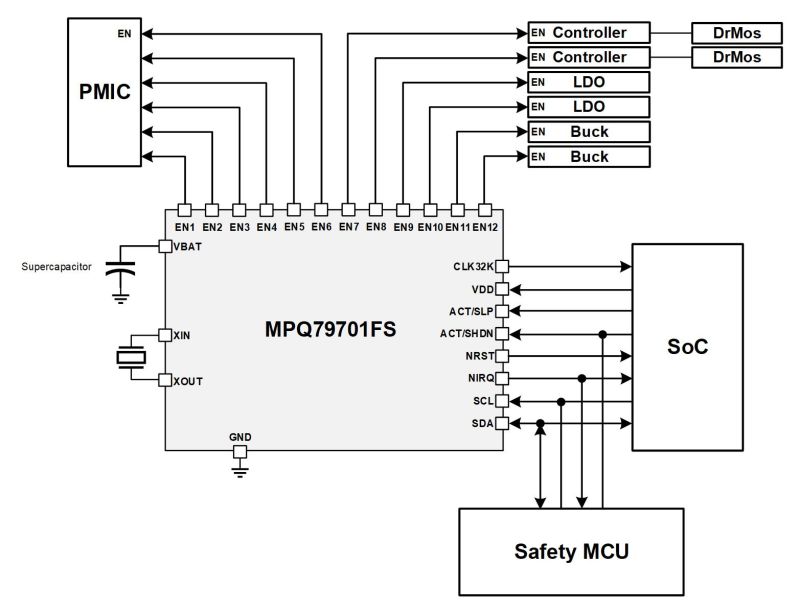

The MPQ79701FS-AEC1 is a 12-channel, functional safety power sequencer engineered to provide precise power sequencing and safety functions for automotive advanced driver-assistance systems (ADAS) and autonomous driving platforms.

The device’s configurability and flexibility enable design reuse across different applications and system-on-chip (SoC) generations.

The MPQ79701FS-AEC1 contains a crystal driver, a real-time clock (RTC) with an alarm function, a configurable watchdog that can be accessed through the I²C interface, and active-low system reset and interrupt outputs.

Safety mechanisms such as built-in self-testing (BIST) provide high diagnostic coverage, which help the system achieve its target ASIL rating.

The MPQ79701FS-AEC1 is available in a QFN-24 (4mmx4mm) package with wettable flanks, and is AEC-Q100 qualified.

Features & Benefits

Designed for Automotive Advanced Driver-Assistance Systems (ADAS) and Autonomous Driving Platforms:
- 2.7V to 5.5V Input Voltage (V_IN) Range
- 12 Enable Outputs
- Time-Slot Based Sequencing
- System Reset Signal
- System Interrupt Signal
Mission-Critical Safety Features:
- Write Protection on Safety Critical Registers
- Advanced Diagnostics
- Built-In Self-Testing (BIST)
- Windowed Watchdog
- Over-Temperature (OT) Shutdown
- Supports Systems Up to ASIL-B
- ISO 26262 Functional Safety Compliant

Application Flexibility with I²C Interface:

Fast Mode I²C Interface with Cyclic Redundancy Check (CRC)
One-Time Programmable (OTP) Memory
Configurable Parameters:
- Sequence Order
- I²C Address
- Watchdog Timing
- Drive Mode for Enable Pins
- Alternate Functions for Enable Pins

Additional Features:

Backup Battery Input
32kHz Crystal Oscillator Driver
Real-Time Clock (RTC)
Available in a QFN-24 (4mmx4mm) Package with a 0.5mm Pitch and Wettable Flanks
Available in AEC-Q100 Grade 1

Active Part Numbers:

MPQ79701FSGRE-xxxx-AEC1-Z MPQ79701FSGRE-xxxx-AEC1-P MPQ79701FSGRE-0000-AEC1-Z MPQ79701FSGRE-0000-AEC1-P

Meaning of P & Z

Related Products

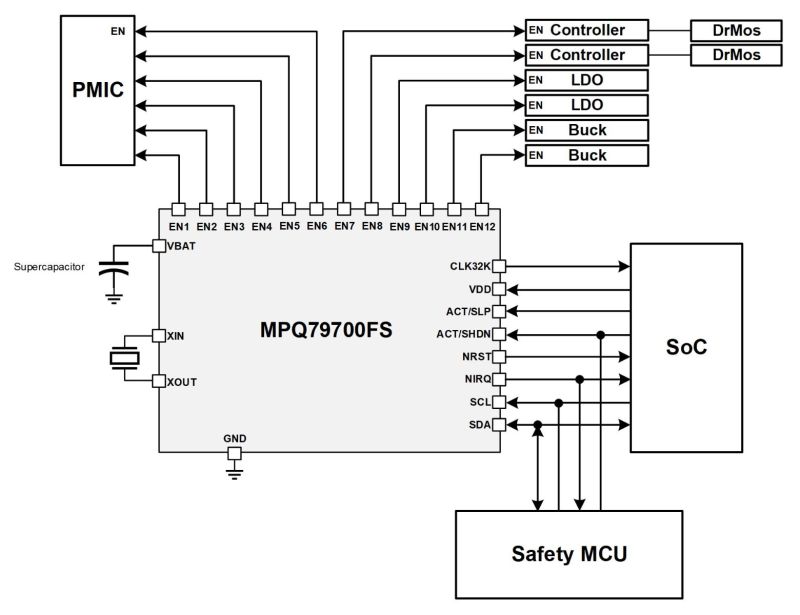

MPQ79700FSGRE-AEC1 MPSafe^TM, ASIL-D, 12-Channel Power Sequencer, AEC-Q100 Qualified
