MPQ79700FS-AEC1

MPQ79700FS-AEC1

MPSafe™ 12-Channel ASIL-D Power Sequencer, AEC-Q100 Qualified

Description

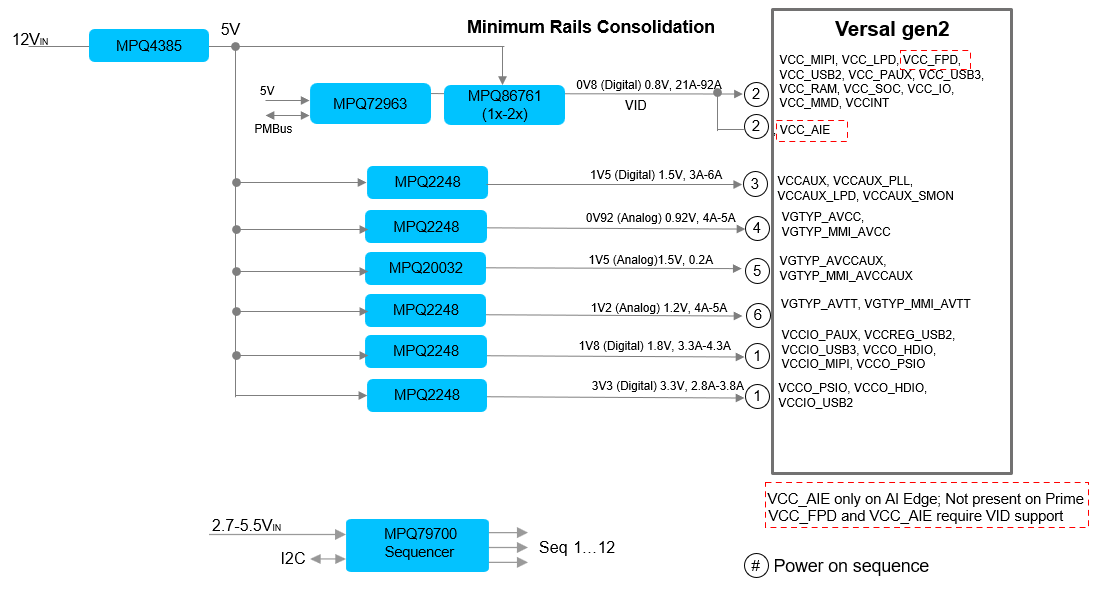

The MPQ79700FS is a 12-channel functional safety power sequencer designed for automotive advanced driver assistance systems (ADAS) and autonomous driving platforms, which provide the essential controls and sequencing for the entire platform.

The device’s configurability and flexibility enable design reuse across different applications and system-on-chip (SoC) generations.

The MPQ79700FS contains a crystal driver, as well as a real-time clock (RTC) with an alarm function. The device also contains a configurable watchdog, which is accessible via the I²C interface, along with active-low system reset and interrupt outputs.

Integrated safety mechanisms such as the built-in self-test (BIST) provide high diagnostic coverage, which allows the system to achieve the target ASIL rating. It is developed under MPS’ advanced MPSafe™ Functional Safety Product Development process, which has been independently certified to meet ISO26262 guidelines.

The MPQ79700FS is available in a QFN-24 (4mmx4mm) package with wettable flanks, and is AEC-Q100 Grade 1 qualified.

Features & Benefits

Designed for Automotive Advanced Driver Assistance Systems (ADAS) and Autonomous Driving Platforms:
- 2.7V to 5.5V Input Voltage (V_IN) Range
- 12 Enable (EN) Outputs
- Time-Slot Based Sequencing
- System Reset Signal
- System Interrupt Signal
Safety Features:
- Write Protection for Critical Safety Registers
- Advanced Diagnostics
- Built-In Self-Test (BIST)
- Supports Systems up to ASIL D
- ISO26262 Functional Safety Compliant
Flexible Application with the I²C Interface:
- Fast Mode I²C Interface with Cycle Redundancy Check (CRC)
- One-Time Programmable (OTP) Memory
- Configurable via the I²C: Sequence Order, I²C Address, Watchdog Timer, Drive Mode for EN Pins, and Alternate Function for EN Pins
Additional Features:
- Backup Battery Input
- 32kHz Crystal Oscillator Driver
- Real-Time Clock
- Window Watchdog
- Thermal Shutdown
- Available in a QFN-24 (4mmx4mm) Package, 0.5mm Pitch
- Available in a Wettable Flank Package
- Available in AEC-Q100 Grade 1

Active Part Numbers:

MPQ79700FSGRE-xxxx-AEC1-Z MPQ79700FSGRE-xxxx-AEC1-P MPQ79700FSGRE-0000-AEC1-Z MPQ79700FSGRE-0000-AEC1-P

Meaning of P & Z

Evaluation Tools

Virtual Bench Pro 4.0 Evaluation Kit Graphical User Interface (GUI) Supported by MPS Used to Configure and Monitor Multiple MPS Digital Power Solutions with an I²C Interface

The Virtual Bench Pro 4.0 is a Graphical User Interface (GUI) supported by MPS used to configure and monitor multiple MPS digital power solutions with an I²C Interface. This GUI is an intuitive tool that can be used with MPS evaluation kits and helps assist in the evaluation and in the testing phases of your design.

Hardware & Software Requirements:

USB to I2C Communication Device EVKT-USBI2C-02
PC running Window 7 or later
.Net Framework 4.0 or later

Features:

Support PMBus open standard protocol. Common commands such as setting the output, switching frequency, etc
Provide tips for the parameter configuration of the digital power solution
Monitor real-time data and displayed values by the GUI such as:
