MPSafe^TM, ASIL-D, 12-Channel Power Sequencer Evaluation Board, AEC-Q100 Qualified

Description

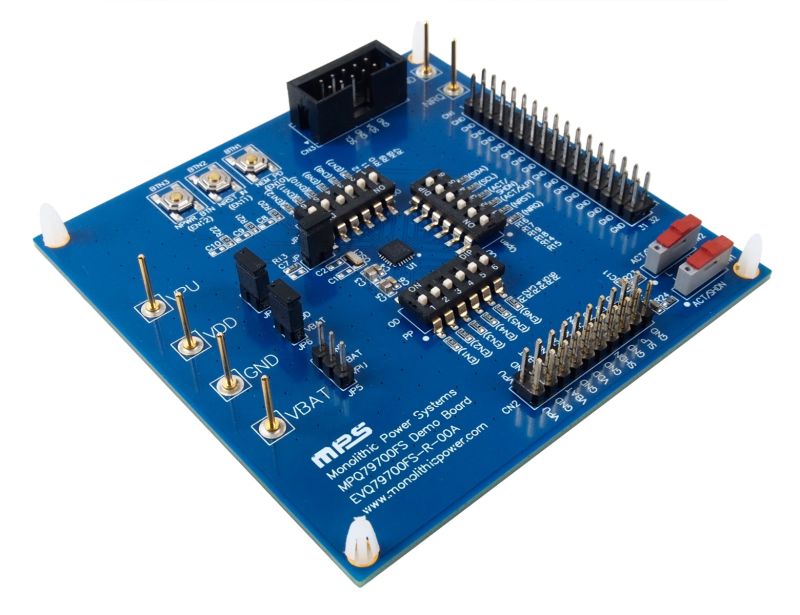

The EVQ79700FS-R-00A evaluation board is designed to demonstrate the capabilities of the MPQ79700FS-AEC1, a 12-channel, functional safety power sequencer. The MPQ79700FS-AEC1 is engineered to provide precise power sequencing and safety functions for automotive advanced driver-assistance systems (ADAS) and autonomous driving platforms.

The MPQ79700FS-AEC1’s configurability and flexibility enable design reuse across different applications and system-on-chip (SoC) generations.

The MPQ79700FS-AEC1 contains a crystal driver, a real-time clock (RTC) with an alarm function, a configurable watchdog that can be accessed through the I²C interface, and active-low system reset and interrupt outputs.

Safety mechanisms such as built-in self-test (BIST) provide high diagnostic coverage, which help the system achieve its target ASIL rating.

The EVQ79700FS-R-00A is a fully assembled and tested evaluation board. The MPQ79700FS-AEC1 is available in a QFN-24 (4mmx4mm) package with wettable flanks.

Product Evaluated

Features & Benefits

Designed for Automotive Advanced Driver-Assistance Systems (ADAS) and Autonomous Driving Platforms:
- 2.7V to 5.5V Input Voltage (V_IN) Range
- 12 Enable Outputs
- Time-Slot Based Sequencing
- System Reset Signal
- System Interrupt Signal
Mission-Critical Safety Features:
- Write Protection on Safety Critical Registers
- Advanced Diagnostics
- Built-In Self-Testing (BIST)
- Window Watchdog
- Over-Temperature Shutdown
- Supports Systems Up to ASIL-D
- ISO 26262 Functional Safety Compliant

Application Flexibility with I²C Interface:

Fast Mode I²C Interface with Cyclic Redundancy Check (CRC)
One-Time Programmable (OTP) Memory
Configurable Parameters:
- Sequence Order
- I²C Address
- Watchdog Timing
- Drive Mode for Enable Pins
- Alternate Functions for Enable Pins

Additional Features:

Backup Battery Input
32kHz Crystal Oscillator Driver
Real-Time Clock (RTC)
Available in a QFN-24 (4mmx4mm) Package with a 0.5mm Pitch and Wettable Flanks
Available in AEC-Q100 Grade 1

Active Part Numbers:

EVQ79700FS-R-00A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$50.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
