MPQ7210-AEC1

MPQ7210-AEC1

60V, 2A, Synchronous, Dual-Buck LED Driver with SPI, AEC-Q100 Qualified

Datasheet

Description

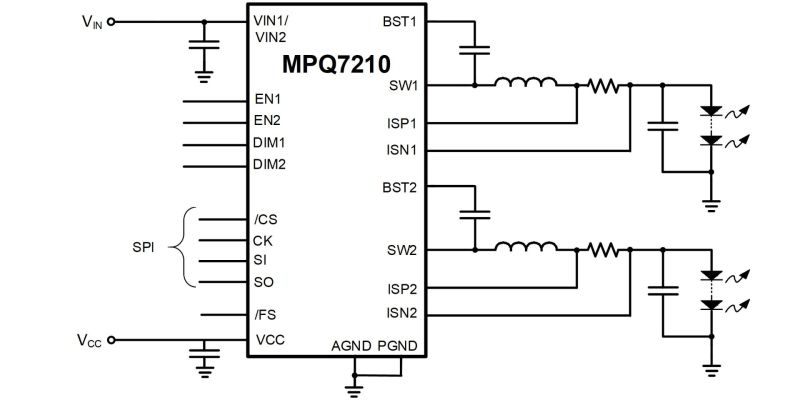

The MPQ7210-AEC1 is a synchronous, dual-buck LED driver designed to operate as a constant current source to drive two independent LED channels. Each channel can support up to 2A of output current (I_OUT), and they can also be connected in parallel to support up to 4A of current.

The 4.5V to 60V input voltage (V_IN) range allows a string of up to 12 LEDs to be connected in series per channel. When paired with a matrix manager, the MPQ7210-AEC1 can achieve an ideal architecture to drive adaptive driving beams or matrix headlights.

The safety protection suite includes a fault (/FS) pin used to report over-current protection (OCP), under-voltage lockout (UVLO), early thermal warning, and thermal shutdown. These features can be used to assist the system in meeting functional safety requirements.

An integrated 10-bit analog-to-digital converter (ADC) monitors V_IN, the output voltage (V_OUT), VCC voltage (V_CC), and junction temperature (T_J), and logs the data into the internal registers. These diagnostics can be read back by a microcontroller (MCU) through the serial peripheral interface (SPI). The SPI can also be used to preset dimming profiles within the registers and mask undesired signals on the fault (/FS) pin.

The MPQ7210-AEC1 minimizes the need for a number of external components and is available in a QFN-26 (5mmx5mm) package. It is available in AEC-Q100 Grade 1.

Features & Benefits

Built for Automotive LED Applications:
- Wide 4.5V to 60V Input Voltage (V_IN) Range
- 2A Dual-Channel Buck
- 4A Single-Channel Buck
- ±3% LED Current Accuracy
- -40°C to +150°C Operating Junction Temperature (T_J)
- 8-Bit Analog Dimming
- 12-Bit Pulse-Width Modulation (PWM) Dimming
Optimized for EMC/EMI:
- Selectable 220kHz, 420kHz, 1.1MHz, and 2.3MHz Switching Frequency (f_SW)
- Frequency Spread Spectrum (FSS)
- CISPR 25 Class 5 Compliant Safety
Safety Protection Suites:
- Analog-to-Digital Converter (ADC) to Monitor V_IN, Output Voltage (V_OUT), VCC Voltage (V_CC), and T_J
- Failsafe (/FS) Pin and Registers
- Output Under-Voltage Protection (UVP)
- Over-Current Protection (OCP)
- Early Thermal Warning
- Thermal Shutdown
- Serial Peripheral Interface (SPI) with Configurable Features
- Current Limit
Additional Features:
- Multi-Page One-Time Programmable (OTP) Memory
- Available in a QFN-26 (5mmx5mm) Package with Wettable Flanks
- Available in AEC-Q100 Grade 1
