MPQ7227-AEC1

MPQ7227-AEC1

24-Channel, 100mA, Smart Linear LED Driver with Digital Adaptive Feedback Control (AFC^TM), AEC-Q100 Qualified

Description

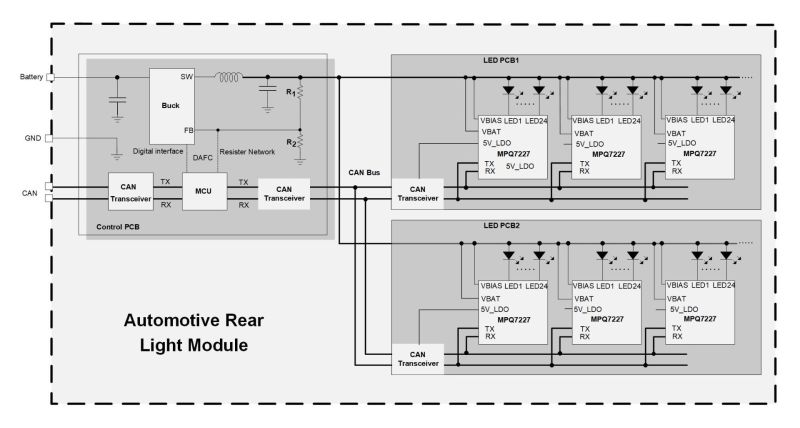

The MPQ7227-AEC1 is a 24-channel, smart linear LED driver. Each channel is rated for up to 100mA of current, and 32 ICs can be cascaded to create a 768-channel solution. The device is optimized for animated or dynamic lighting applications. It employs 12-bit pulse-width modulation (PWM) dimming and a 6-bit analog dimming register per channel, enabling individual control of each channel. The 24 channels can be assigned up to 4 different groups with independent dimming frequencies and duty cycles. The LED (I_LED) current ramp rate and the phase shift between channels during PWM dimming can also be digitally configured. The MPQ7227-AEC1 is designed to function across distant PCBs via a robust high-speed UART-over-CAN interface.

The device features digital adaptive feedback control^TM (DAFC^TM) to maximize system efficiency and thermal performance. An integrated 8-bit analog-to-digital converter (ADC) can sense the LED string voltage (V_LEDX), so the output voltage of the pre-regulator (e.g. buck voltage regulator) can be adjusted based on this sensed voltage. The voltage across the channels can be minimized to a value determined by the headroom voltage.

The MPQ7227-AEC1 protection features include LED open/short protection, ISET pin open/short protection, and over-temperature protection (OTP). If a fault condition occurs, the fault indicator (/FS) pin is pulled low, and a matching fault register is set. A part enters a Limp Home state if communication is lost.

The MPQ7227-AEC1 is available in a TQFP-48 (7mmx7mm) package, and is available in AEC-Q100 Grade 1.

Features & Benefits

Easy Scalability:
- 24 Channels, 100mA/Channel
- Cascade Up to 32 ICs for Up to 768 Channels
- Supports Channels in Parallel
- Pin-Configurable Device Address
- 12-Bit Pulse-Width Modulation (PWM) Dimming
- 6-Bit Analog Dimming from 0% to 100%
- Supports 36V Load Dump
- -40°C to +150° Operating Junction Temperature (T_j)
Cool Thermals and Optimized Efficiency:
- Digital Adaptive Feedback Control^TM (AFC^TM) Optimizes Pre-Regulator Output
- 400mV Headroom Voltage at 100mA
Robust Communication:
- 2Mbps CAN Compatible UART Interface
- Up to 64-Byte Read/Write Command
- Multi-Cast Write for Multiple Devices
- Configurable Watchdog Timer

Optimized for EMI/EMC:

Configurable Phase Shift and Slew Rate
Frequency Spread Spectrum (FSS)
Selectable PWM Dimming Frequency
CISPR 25 Class 5 Compliant

Additional Features:

Multi-Time Configurable (MTP) Memory
2 Analog-to-Digital Converters (ADCs) for LED Binning and Negative Temperature Coefficient (NTC)
Available in a TQFP-48 (7mmx7mm) package
Available in AEC-Q100 Grade 1

Safety Features:

Functional Safety Document Available to Support System in Achieving ASIL Requirements
Limp Home Mode
Failsafe (/FS) Pin
LED String Short (to GND or Battery)
LED String Open
VBIAS Low Voltage Warning
Thermal Warning and Shutdown
ISET Pin Open/Short

Active Part Numbers:

MPQ7227GFN-xxxx-AEC1-T MPQ7227GFN-0000-AEC1-T
