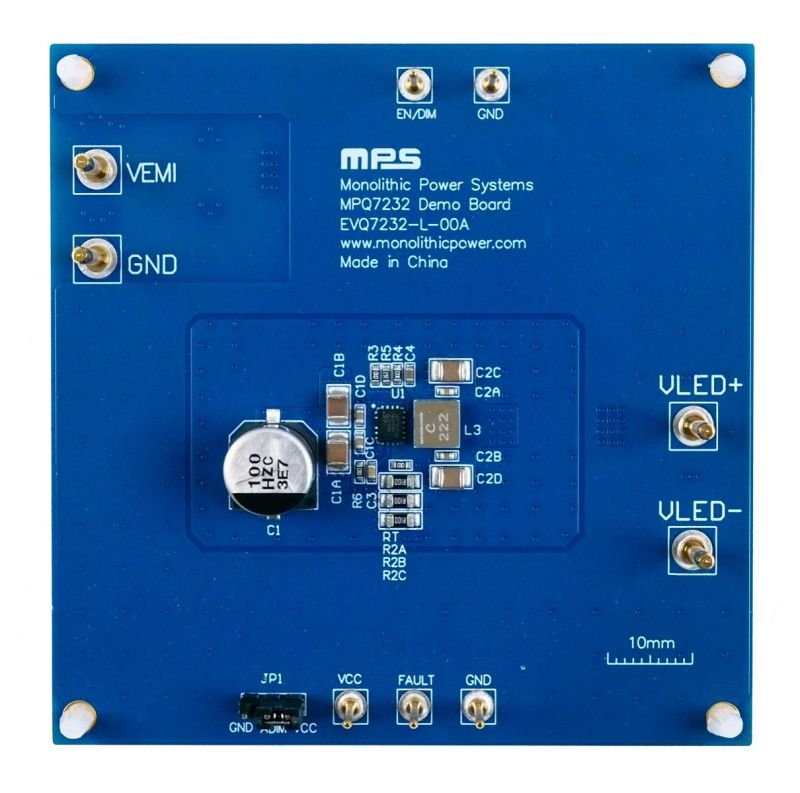

36V, 6A, Synchronous Buck Infrared LED Driver, AEC-Q100 Qualified

Description

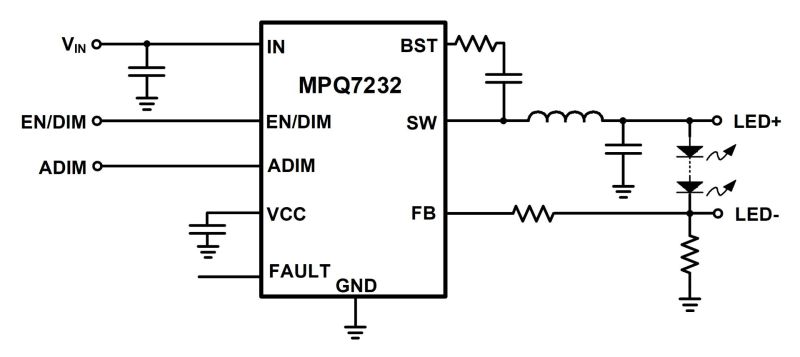

The MPQ7232-AEC1 is a synchronous, step-down, constant-current, infrared (IR) LED driver. It features a compact solution that achieves up to 6A of peak LED current (I_LED). An ideal configuration is to drive one or two IR LEDs. Peak LED current control mode provides fast transient response and eases loop stabilization.

The device supports a 10Hz to 2kHz pulse-width modulation (PWM) dimming frequency range. It is compatible with IR LED applications that require 30fps, 60fps, or 120fps dimming. The MPQ7232-AEC1 also supports analog dimming. It applies a DC voltage between 0.2V and 1.6V on the ADIM pin to linearly adjust the internal LED current reference voltage (V_REF) from 25mV to 200mV. Frequency spread spectrum (FSS) modulation improves EMC performance.

Full protection features include LED short-to-GND protection, LED open protection, thermal shutdown (TSD), and a dedicated fault pin.

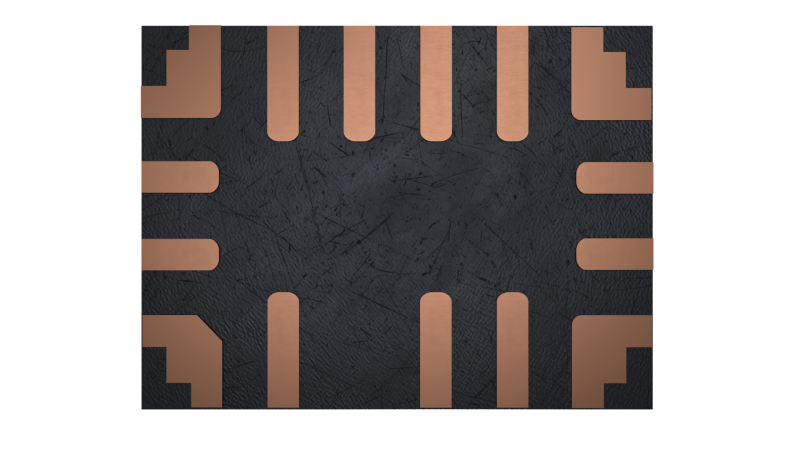

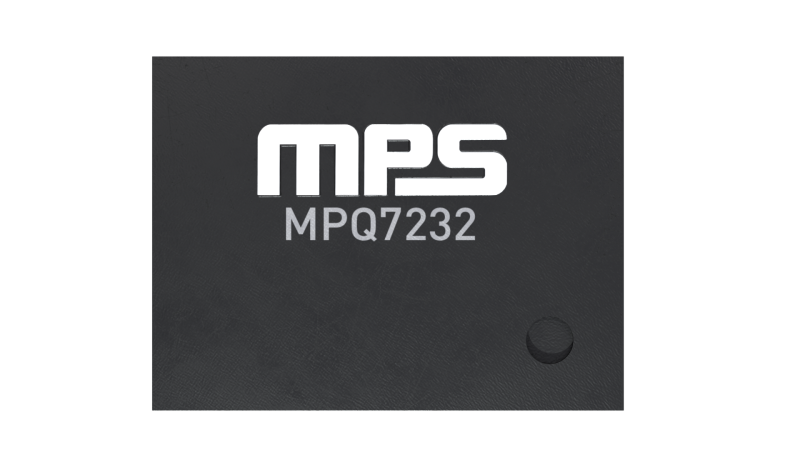

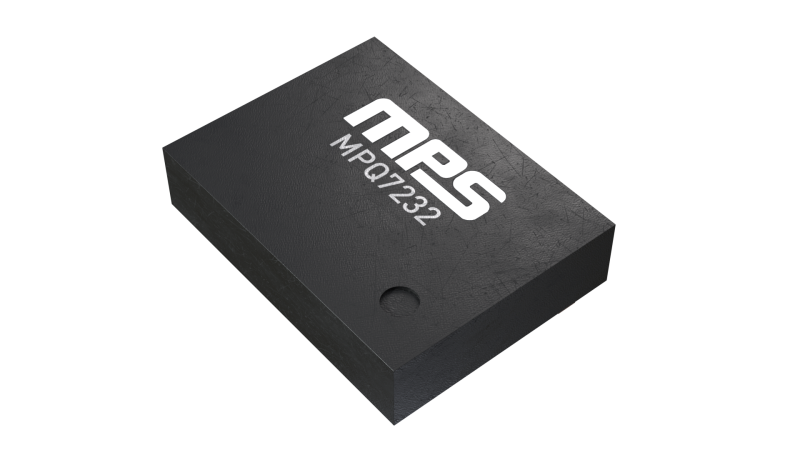

The MPQ7232-AEC1 requires a minimal number of readily available, standard external components. It is available in a space-saving QFN-15 (3mmx4mm) package, and is AEC-Q100 qualified.

Features & Benefits

Designed for Automotive Applications:
- 4.5V to 36V Input Voltage (V_IN) Range
- -40°C to +150°C Junction Temperature (T_J) Rating
Built for IR LED Applications:
- Up to 6A of Peak LED Current (I_LED)
- Configurable I_LED
- 10Hz to 2kHz Pulse-Width Modulation (PWM) Dimming Frequency (f_PWM)
- Compatible with 30fps, 60fps, and 120fps Dimming
- Analog Dimming
