MPQ7250-AEC1

MPQ7250-AEC1

3-Channel, 200mA Linear LED Driver with Thermal Sharing, AEC-Q100 Qualified

Description

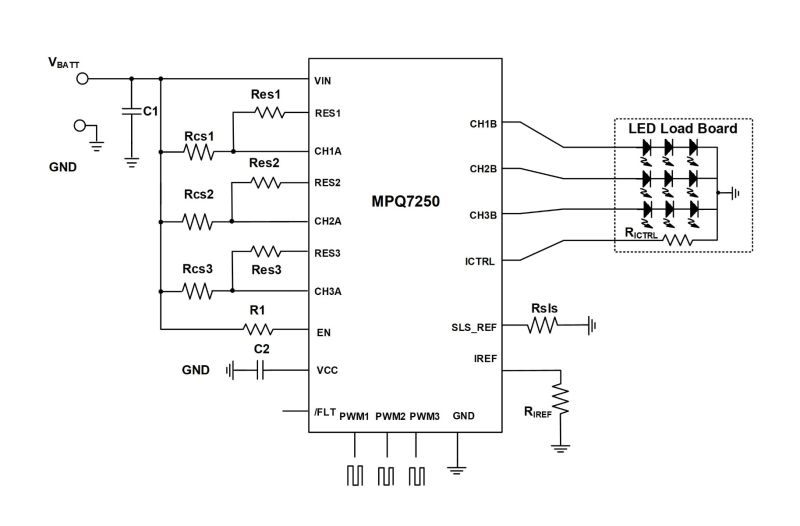

The MPQ7250-AEC1 is a 3-channel, high-side (HS), linear LED driver, ideal for driving LED strings directly from an automotive battery. It outputs a best-in-class 200mA of LED current (I_LEDx) per channel with a unique thermal management design to reduce board temperature. External shunt resistors are leveraged to share output current (I_OUT) and dissipate power out of the driver.

Optimized for compact lighting applications, each channel has a dedicated pulse-width modluation (PWM) dimming input pin to support brightness control. Either a negative temperature coefficient (NTC) resistor for LED temperature monitoring or an LED brightness binning resistor can be connected on the same board or off the board.

Advanced diagnostics and fault protection features include LED open protection, LED short protection, single LED short (SLS) protection, and thermal shutdown. The device can be configured to operate in one-fails-all-fail or one-fails-others-on mode, and can indicate any of these fault conditions through its fault indicator output pin.

The MPQ7250-AEC1 requires a minimal number of external components, and is available in a compact QFN-20 (4mmx4mm) package. It is available in AEC-Q100 Grade 1.

Features & Benefits

Designed for Automotive Applications:
- Wide 4.5V to 36V Input Voltage (V_IN) Range
- -40°C to +150°C Operating Junction Temperature (T_J)
Optimized for Exterior LED Lighting:
- 3 Channels, 200mA/Channel Max
- ±5% Accuracy Over Temperature
- Adjustable LED Current (I_LEDx) via External Resistor
- Input Pulse-Width Modulation (PWM) Dimming Duty Cycle
- Offboard Binning Resistor
- External Negative Temperature Coefficient (NTC) for Current Derating
- Thermal Management with External Shunt Resistors
- 900mV Max Dropout Voltage (V_DROPOUT) at 200mA
Diagnostics and Protection Features:
- LED Open and Short Detection
- Configurable as Either One-Fails-All-Fail or One-Fails-Others-On
- Single LED Short Fault Detection with Auto-Recovery
- LED Current Derating
- Thermal Shutdown
Additional Features:
- Functional Safety Document Available to Support System in Achieving ASIL Requirements
- Failsafe (/FS) Pin and Fault Registers for System Protection and Diagnostics
- One-Time Programmable (OTP) Memory

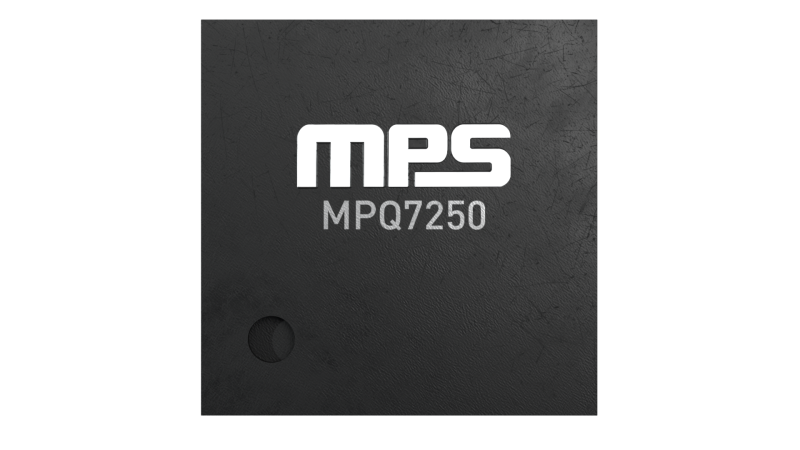

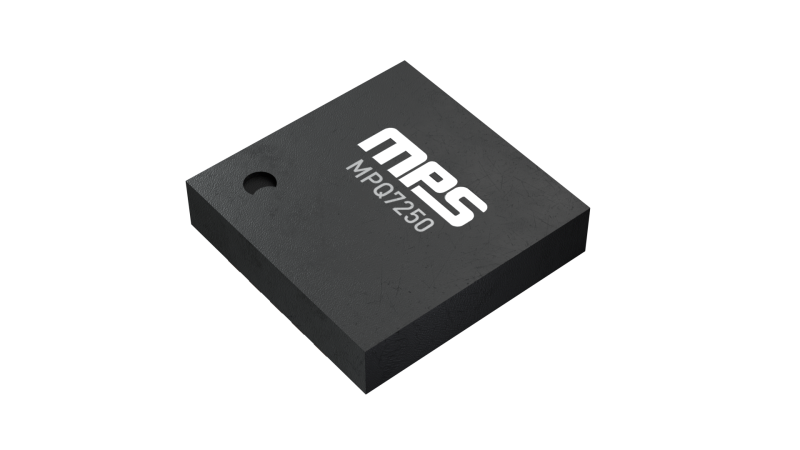

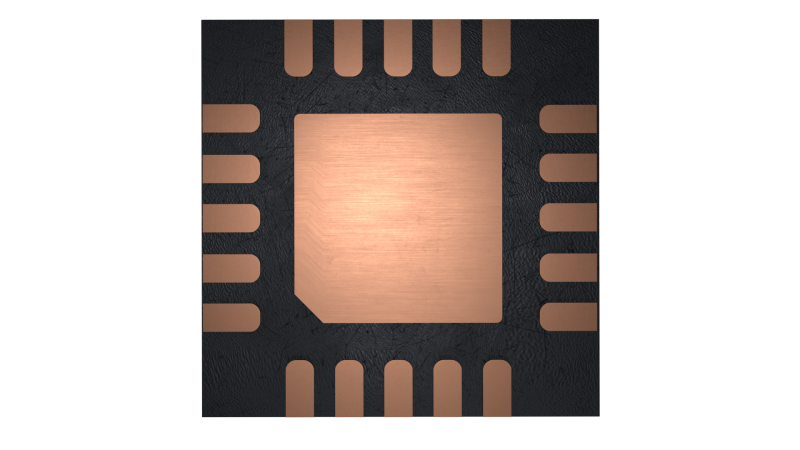

- Available in a QFN-20 (4mmx4mm) Package with Wettable Flanks
- Available in AEC-Q100 Grade 1
