MPQ76300FS-AEC1
MPSafeTM, 24-Channel, 100mA, Smart Linear LED Driver with Digital AFC, AEC-Q100 Qualified
Session textval
Session Titefor popup
Description

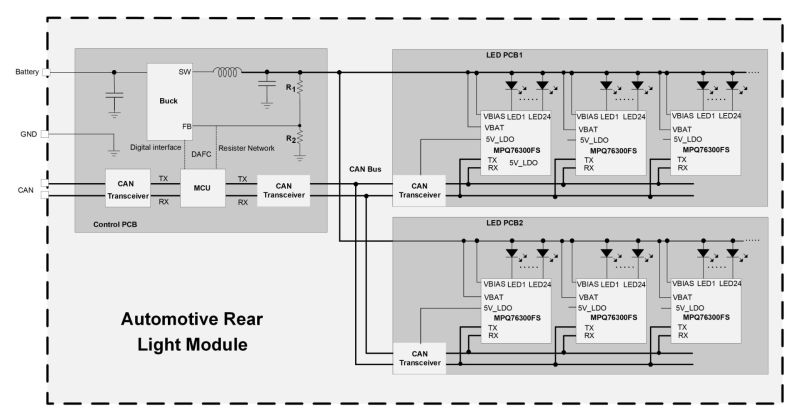

The MPQ76300FS-AEC1 is a 24-channel, smart linear LED driver. Each channel is rated for up to 100mA of current, and 32 ICs can be cascaded together to create a 768-channel solution. The device is optimized for animated or dynamic lighting applications. It employs a 12-bit pulse-width modulation (PWM) dimming register and a 6-bit analog dimming register for each channel, enabling individual channel control. The 24 channels can be assigned to up to 4 different groups with independent dimming frequencies and duty cycles. The LED current (ILED) ramp rate and phase shift between channels during PWM dimming can also be digitally configured. The MPQ76300FS-AEC1 is designed to function across distant PCBs with a robust high-speed UART over CAN interface.
The MPQ76300FS-AEC1 features digital adaptive feedback control (DAFC) to maximize system efficiency and thermal performance. An integrated 8-bit analog-to-digital converter (ADC) can sense the LED string voltage (VLED) so that the pre-regulator's or buck voltage regulator's output voltage can be adjusted based on this sensed voltage. Voltage across the channels can be minimized to a value based on the headroom voltage.
Built-in self-testing (BIST) is implemented to perform self-diagnosis on critical analog and logic functions. It is developed under MPS's advanced MPSafeTM Functional Safety Product Development process, which has been independently certified to meet ISO 26262 guidelines. Protection features include LED open and short protection, ISET pin open and short protection, and over-temperature protection (OTP). If a fault condition occurs, the fault indicator (/FS) pulls low, and a matching fault register is set. A limp home state indicates if communication is lost.
The MPQ76300FS-AEC1 is available in a TQFP-48 (7mmx7mm) package, and is AEC-Q100 qualified.
-
Show more
Show less
Features & Benefits
- Easy Scalability:
- 24 Channels, 100mA/Channel
- Can Cascade Up to 32 ICs for Up to 768 Channels
- Supports Channels in Parallel
- Pin-Configurable Device Address
- 12-Bit Pulse-Width Modulation (PWM) Dimming
- 6-Bit Analog Dimming from 0% to 100%
- Supports 36V Load Dump
- -40°C to +150° Operating Junction Temperature (TJ)
- Cooler Thermals and Optimized Efficiency:
- Digital Adaptive Feedback Control (DAFC) Optimizes Pre-Regulator Output
- 400mV Headroom at 100mA
- Robust Communication:
- 2Mbps CAN-Compatible UART Interface
- Up to 64-Byte Read/Write Command
- Multi-Cast Write for Multiple Devices
- Configurable Watchdog Timer
- Optimized EMI/EMC:
- Configurable Phase Shift and Slew Rate
- Frequency Spread Spectrum (FSS)
- Selectable PWM Dimming Frequency
- CISPR 25 Class 5 Compliant
- Additional Features:
- Multiple-Time Programmable (MTP) Memory
- 2 Analog-to-Digital Converters (ADCs) for LED Binning and Negative Temperature Coefficient (NTC)
- Available in a TQFP-48 (7mmx7mm) Package
- Available in AEC-Q100 Grade 1
- Functional Safety:
- Built-In Self-Testing (BIST)
- FMEDA and Safety Manual Available
- Limp Home Mode
- Failsafe (/FS) Pin
- LED String Short (to GND or Battery)
- LED String Open
- VBIAS Low Voltage Warning
- Thermal Warning and Shutdown
- ISET Pin Open/Short Protection

Active Part Numbers:
MPQ76300FSGFN-xxxx-AEC1-T MPQ76300FSGFN-0000-AEC1-T
