MPQ3432-AEC1
21A, High-Efficiency, Fully Integrated, Synchronous Boost Converter with Configurable Current Limit, AEC-Q100 Qualified
Session textval
Session Titefor popup
Description
The MPQ3432 is 600kHz, fixed-frequency, highly integrated boost converter with a wide input voltage (VIN) range. The MPQ3432 starts up from a VIN as low as 2.7V, and supports up to 20W of load power from a single-cell battery with integrated, low on resistance (RDS(ON)) power MOSFETs.
Constant-off-time (COT) control provides fast transient response. The MODE pin allows the user to select pulse-skip mode (PSM), forced continuous conduction mode (FCCM), or ultrasonic mode (USM) under light-load conditions. The configurable current limit provides accurate overload protection. The low-side MOSFET (LS-FET) limits the cycle-by-cycle inductor peak current, and the high-side MOSFET (HS-FET) eliminates the need for an external Schottky diode.
Full protection features include configurable input under-voltage lockout (UVLO) protection and over-temperature protection (OTP).

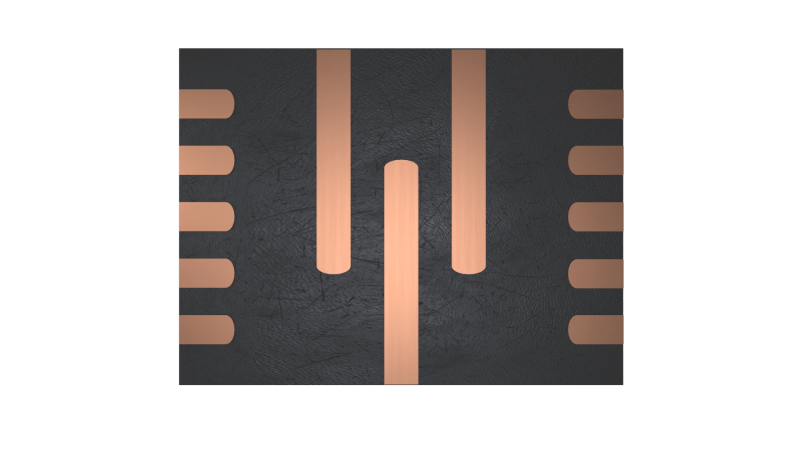

The MPQ3432 is available in a QFN-13 (3mmx4mm) package.
-
Show more
Show less
Features & Benefits
- Guaranteed Industrial/Automotive Temperatures
- 2.7V to 13V Start-Up Voltage (VST)
- 0.8V to 13V Operating Input Voltage (VIN)
- Up to 16V Output Voltage (VOUT)
- Supports 20W Average Power Load and 40W Peak Power Load from 3.3V
- Configurable Switch Peak Current Limit
- Integrated 6mΩ and 9.5mΩ Power MOSFETs
- 95% Efficiency for 3.6V VIN to 9V/3A
- Selectable Pulse-Skip Mode (PSM), >23kHz Ultrasonic Mode (USM), or Forced Continuous Conduction Mode (FCCM) under Light-Load Conditions
- Automatic Pass-Through Function in PSM when VIN > VOUT-SET
- 600kHz Fixed Switching Frequency (fSW)
- Adaptive Constant-Off-Time (COT) Control for Fast Transient Response
- External Soft Start (SS) and Compensation Pins
- Configurable Under-Voltage Lockout (UVLO) Protection and Hysteresis
- 175°C Over-Temperature Protection (OTP)
- Available in a QFN-13 (3mmx4mm) Package
- Available in AEC-Q100 Grade 1
Active Part Numbers:
MPQ3432GLE-AEC1-Z MPQ3432GLE-AEC1-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
