MPQ18914
30V, High-Frequency Transformer Driver for Automotive Applications, AEC-Q100 Qualified
Session textval
Session Titefor popup

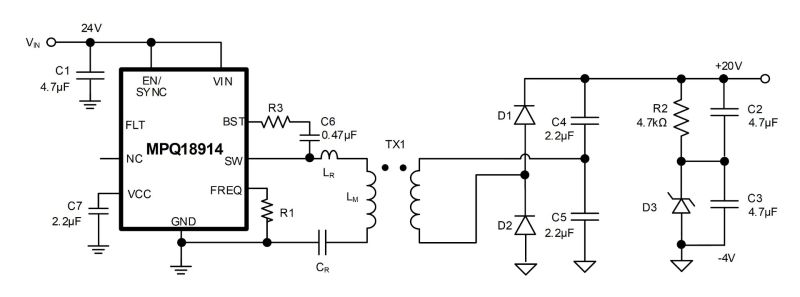

Description
The MPQ18914 is a high-frequency, half-bridge transformer driver. It is ideal for use as the primary-side MOSFET in isolated power supplies for biasing silicon carbide (SiC) field-effect transistors (FETs), silicon FETs, and insulated gate bipolar transistors (IGBTs). The MPQ18914 simplifies isolated biased supply design by integrating the control, switching power stage, and protection circuitry into a single device. This topology supports designs with a high isolation voltage and small interwinding capacitance.
The MPQ18914 features soft switching to optimize EMI performance. It supports a wide 5V to 30V input voltage (VIN) range, and can survive surges of up to 50V. The device has a wide 400kHz to 3MHz configurable switching frequency (fSW) range, which reduces solution size and optimizes efficiency in resonant topologies (e.g. LLC converters).
Full safety and protection features include input over-voltage protection (OVP), over-current protection (OCP), and fault indication. The device’s built-in soft start (SS) controls the inrush current during start-up.
The MPQ18914 is available in a QFN-10 (2mmx2.5mm) package with wettable flanks, and is available in AEC-Q100 Grade 1.
-
Show more
Show less
Features & Benefits
- Advanced Protection Features:
- Over-Current Protection (OCP)
- Short-Circuit Protection (SCP)
- Over-Voltage Protection (OVP)
- Over-Temperature Protection (OTP)
- Fault Reporting
- Under-Voltage Lockout (UVLO)
- Supports Up to 5kV Isolation Voltage
- Low EMI:
- Soft Switching
- Flip-Chip Package
- Low Interwinding Capacitance
- Small Solution Size:
- 400kHz to 3MHz Configurable Switching Frequency (fSW)
- Available in a Tiny QFN-10 (2mmx2.5mm) Package with Wettable Flanks
Active Part Numbers:
MPQ18914GRPE-AEC1-Z MPQ18914GRPE-AEC1-P MPQ18914GRPE-A-AEC1-Z MPQ18914GRPE-A-AEC1-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
