MPF52012

MPF52012

Single USB PD Controller for DRP and Sink Ports, Supports Firmware Updates and Advanced PDP Management

Parameters Description

Vin (min) (V)
4.26
Vin (max) (V)
5.5
Iout (max) (A)
5
Channels
1
Enable
Active High
Output Discharge
Yes
Grade
Catalog
Package (mm)
QFN-22 (3x5)

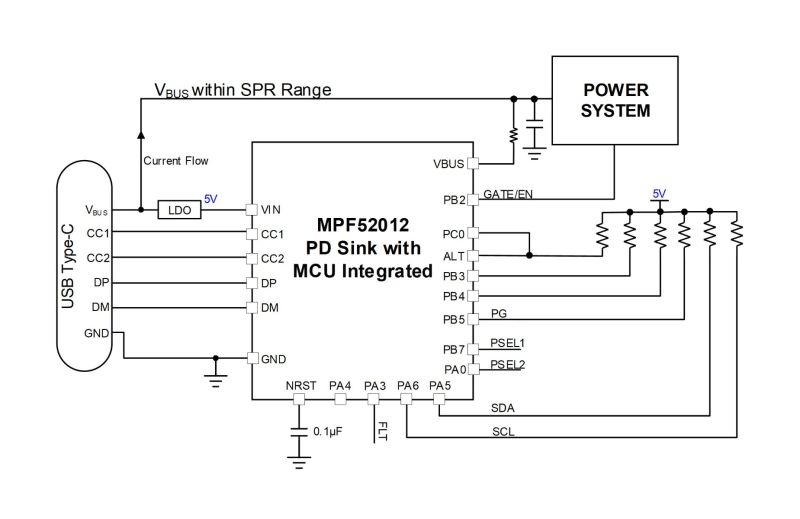

The MPF52012 is a highly integrated USB Power Delivery (PD) controller for dual-role port (DRP) or sink port applications. It integrates a 32-bit, RISC-V core microcontroller (MCU), up to 48MHz operation frequency, a USB Type-C port controller, and legacy charging protocol management. Firmware update functionality is supported via the CC lines.

The MPF52012 supports automatic DRP toggling for DRP applications. The CCx pin supports Rd functionality for dead battery and sink-only applications.

The USB Type-C port supports USB PD Revision 3.2 with an adjustable voltage supply (AVS) and programmable power supply (PPS). In source mode, it supports DCP schemes for Battery Charging Specification (BC1.2), 3A Divider Mode, and 1.2V/1.2V Mode. It also supports QC2.0/3.0/4.0/4.0+, Huawei FCP mode, and Fusion Fast Charging Protocol (UFCS). The MPF52012 provides configurable USB PD management when the battery voltage is low or an over-temperature condition occurs.

Fault protections include I/O pin short to V_BUS/V_BATT protection, output over-current protection (OCP), output over-voltage protection (OVP), and thermal shutdown. The USB Type-C connector I/O pins (OUT, DP, DM, and CCx) support short to battery/V_BUS protection.

The MPF52012 requires a minimal number of readily available, standard external components, and is available in QFN-22 (3mmx5mm) package.

Features & Benefits

4.26V to 5.5V Operating Input Voltage (V_IN) Range
3.3V to 21V Bus Voltage (V_BUS) Range in Standard Power Range (SPR) Mode with Discharge Function
Supports Up to 48V V_BUS in Extended Power Range (EPR) Mode with External V_BUS Resistor Divider
Supports Dual-Role Port (DRP) or Sink-Only Port
Automatic DRP Toggling
CCx Pin Supports Rd Functionality at No Input Power for Dead Battery Applications
Supports SOP’ E-Marker Message
48MHz, 32-Bit RISC-V MCU
64kB Flash with 10kB SRAM
2-Channel UART/LIN/I²C/SPI Interface with Pulse-Width Modulation (PWM) Timer, Direct Memory Access (DMA), 12-Bit Analog-to-Digital Converter (ADC), 11 GPIOs, Watchdog, and JTAG
Compliant with USB Power Delivery (PD) 3.2 with Programmable Power Supply (PPS) and Adjustable Voltage Supply (AVS), USB Type-C 2.4, and TCPC 2.0 Supporting Firmware Updates
