Description
Fitness machines can be a key component of medical treatment and physical wellness. State-of-the-art medical systems often include next-generation user interfaces, real-time sensing and biometrics, and multi-standard connectivity. With growing concerns about the price of healthcare, reliability and cost are also crucial factors for customers. And of course, to help enhance the abilities of healthcare professionals, it is important that fitness machines function with precision and accuracy, and minimize safety concerns such as EMI.
Our comprehensive range of solutions includes PFC & LLC controllers, synchronous rectifiers, step-down and step-up converters, current limit and USB switches, linear regulators, termination regulators, supervisory circuits, stepper and brushed DC motor drivers, operational amplifiers, Class-D audio amplifiers, and WLED drivers. These highly integrated, highly efficient devices save time, board space, and cost to help optimize fitness machine operation and lifespan.
MPS’s cost-effective, innovative power management technology enable cutting-edge capability and efficiency in new fitness machine designs.
Block Diagram
Select parts to expand information in chart below
Components List
Resources
-
DEVELOPING A BATTERY MANAGEMENT SYSTEM SOLUTION FOR ESSReliable and affordable energy sources are required to power the economy and meet daily needs. Without these energy sources, economic growth and development stalls. Dependence on foreign sources for energy can also lead to vulnerability to geopolitical conflicts. With ongoing concerns regarding climate change, ensuring energy security has environmental implications as well, with efforts to increas...
-
ARTIX ULTRASCALE+ AU10P/15P MINIMUM RAILS – HIGHEST POWER REFERENCE DESIGN -

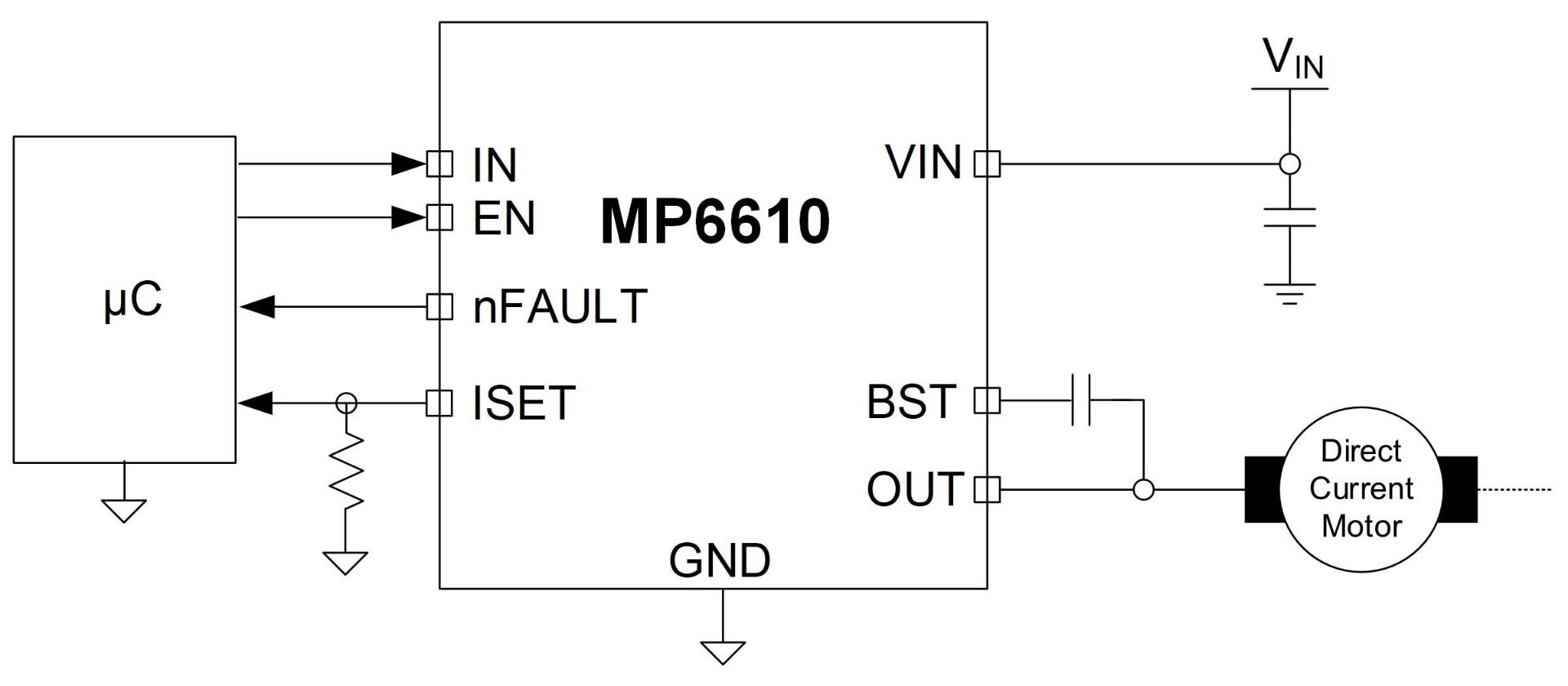

USING CURRENT REGULATION IN DC MOTOR DRIVERSWhen starting a DC motor, large currents can be required that place a burden on the motor driver and power supply. This article will discuss using the current regulation function integrated into many motor driver ICs, while using examples from Monolithic Power Systems (MPS) to address high-current conditions. In many cases, using current regulation can allow designers to use a smaller motor drive...
-
