- MP6900
MP6900
NOT RECOMMENDED FOR NEW DESIGNS
MP6900 continues to be in production for existing customers. Please consider this alternative for new designs:

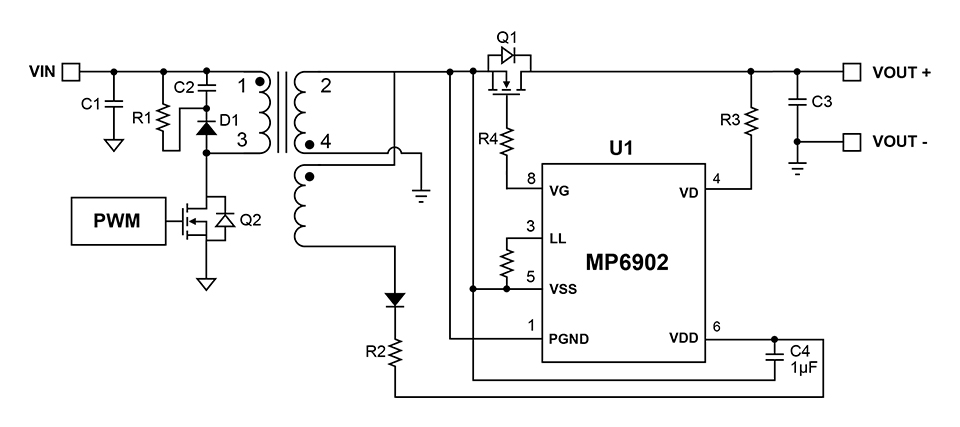

MP6902
MP6902
Fast Turn-Off Intelligent Rectifier with Light-Load Management for Flyback
Features & Benefits
- Supports DCM and Quasi-Resonant Flyback Converters
- Works with 12V Standard and 5V Logic Level FETS
- Compatible with Energy Star, 1W Standby Requirements
- VDD Range From 8V to 24V
- Fast Turn-off Total Delay of 20ns
- Max 400kHz Switching Frequency
- <300μA Quiescent Current at Light Load Mode
- Supports High-side and Low-side Rectification
- Power Savings of Up to 1.5W in a Typical Notebook Adapter
… and many more!
You have a basic account.A myMPS+ account is needed.
Upgrade to myMPS+Session textval
Session Titefor popup
Description
-
Show more
Show less
Features & Benefits
- Works with both Standard and Logic Level FETS
- Compatible with Energy Star, 1W Standby Requirements
- VDD Range From 8V to 24V
- Fast Turn-off Total Delay of 20ns
- Max 400kHz Switching Frequency
- Supports CCM, DCM and Quasi-Resonant Topologies
- Supports High-side and Low-side Rectification
- Power Savings of Up to 1.5W in a Typical Notebook Adapter

Active Part Numbers:
MP6900DJ-LF-P MP6900DJ-LF-Z MP6900DS-LF-P MP6900DS-LF-Z
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
