MP9989A
Session textval
Session Titefor popup

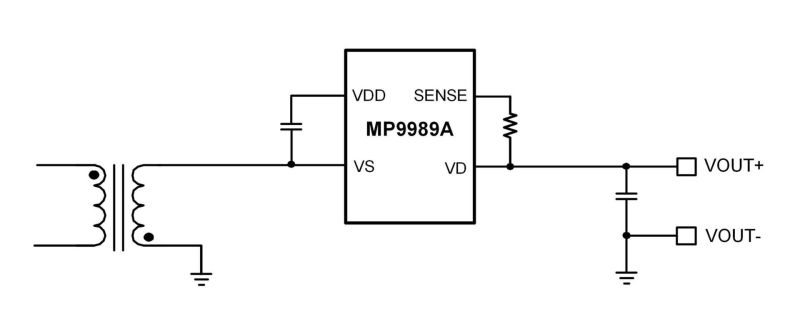

Description
The MP9989A is a fast turn-off, intelligent rectifier for flyback converters, and integrates a 100V MOSFET. It can replace a diode rectifier for higher efficiency and power density. The chip regulates the internal power MOSFET’s forward voltage drop to 40mV and turns off before the drain-source voltage (VDS) reverses.
The MP9989A can generate its own supply voltage without the need for auxiliary winding, which makes it well-suited for charger applications with a low output voltage (VOUT) requirement or any other adapter application with a high-side (HS) set-up. Internal ringing detection circuitry prevents the MP9989A from falsely turning on during discontinuous conduction mode (DCM) or quasi-resonant operation.
The MP9989A is available in a QFN-8 (4mmx5mm) package.
-
Show more
Show less
Features & Benefits
- Integrated 100V/10mΩ MOSFET
- Wide Output Voltage (VOUT) Range Down to 0V
- Does Not Require Auxiliary Winding for High-Side (HS) or Low-Side (LS) Rectification
- Ringing Detection Prevents False Turn-On during Discontinuous Conduction Mode (DCM)
- Compatible with Energy Star
- 110μA Quiescent Current (IQ)
- Supports DCM, Continuous Conduction Mode (CCM), and Quasi-Resonant Operation
- Available in a QFN-8 (4mmx5mm) Package

Active Part Numbers:
MP9989AGV-Z MP9989AGV-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
