MP171A

MP171A

700V, Non-Isolated, Offline Regulator, Up to 60mA Output Current with Improved EMI Performance

Datasheet

Description

The MP171A is a primary-side regulator that provides accurate constant voltage (CV) regulation without an optocoupler. It supports buck, boost, buck-boost, and flyback topologies.

The device’s integrated 700V MOSFET simplifies the structure and reduces cost. This feature optimizes the device for offline, lowpower applications such as home appliances and standby power.

The MP171A is a green-mode operation regulator. Both the peak current and switching frequency lower as the load decreases. This feature provides excellent efficiency at light load, and improves the overall efficiency.

Protection features include thermal shutdown (TSD), VCC under-voltage lockout (UVLO), overload protection (OLP), short-circuit protection (SCP), and open-loop detection.

The MP171A is available in TSOT23-5 and SOIC-8 packages.

Features & Benefits

Primary-Side CV Control
Supports Buck, Boost, Buck-Boost, and Flyback Topologies
Integrated 700V MOSFET and Current Source
Under 30mW No-Load Power Consumption
Up to 2W Output Power
Maximum DCM Output Current below 40mA
Maximum CCM Output Current below 60mA
Low VCC Operating Current
Frequency Foldback
Limited Maximum Frequency
Peak Current Compression
Internally Biased VCC
TSD, UVLO, OLP, SCP, Open-Loop Detection
Available in TSOT23-5 and SOIC-8 Packages

Active Part Numbers:

MP171AGJ-P MP171AGJ-Z MP171AGS-P MP171AGS-Z

Meaning of P & Z

Evaluation Tools

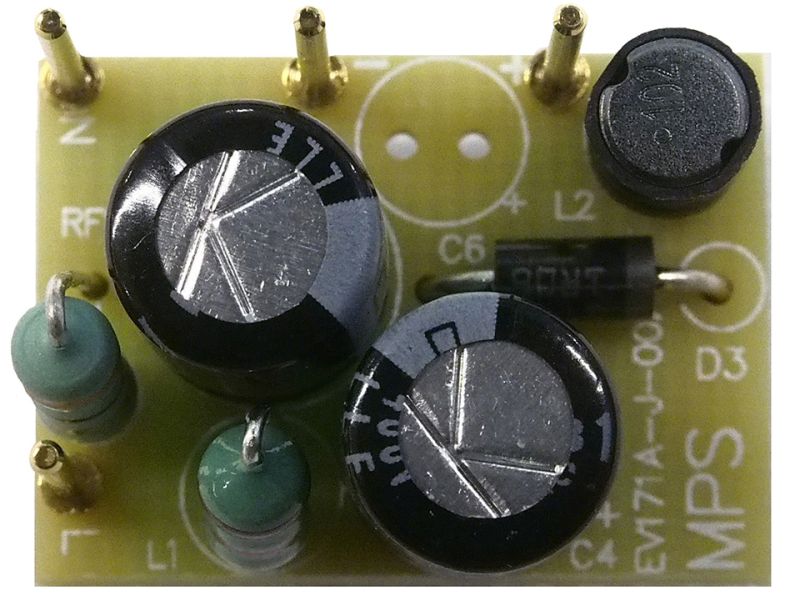

EV171A-J-00A Evaluation Kit Small, Universal Input Non-Isolated Off-Line Regulator With Improved EMI Performance Evaluation Board for TSOT23-5 package type

The EV171A-J-00AEvaluation Board is designed to demonstrate the capabilities of the MP171A. The MP171A is a primary-side constant voltage regulator, which provides accurate constant voltage (CV) regulation without opto-coupler. It supports Buck, Buck-Boost, Boost and Flyback topologies.

The EV171A-J-00A Evaluation Board is designed as Buck application. It typically drives 5V/50mA load from 85VAC to 265VAC input.

The EV171A-J-00A has an excellent efficiency and meets class3 (2kV) IEC61000-4-5 surge immunity and EN55022 conducted EMI requirements. The radiation emission performance gets improved compared with the MP171. The MP171A features various protections, including thermal shutdown (TSD), VCC under-voltage lockout (UVLO), over-load protection (OLP), short-circuit protection (SCP), and open loop detection.

The MP171A is available in TSOT23-5 and SOIC-8 packages.

$25.00
+ tax

EV171A-S-00A

Small, Universal Input Non-Isolated Off-Line Regulator With Improved EMI Performance Evaluation Board for SOIC-8 package type
