MP183

MP183

Non-Isolated, Up to 250mA Output Current, Zero-Standby Buck Regulator

Datasheet

Description

The MP183 is a primary-side regulator that provides accurate constant voltage (CV) regulation without an optocoupler. It supports buck, buck-boost, and flyback topologies. The MP183 has an integrated, 700V MOSFET that simplifies structure and reduces costs, which makes the MP183 well-suited for offline, low-power applications.

The MP183 is a green-mode operation regulator. Both the current limit (I_LIMIT) and the switching frequency (f_SW) decrease as the load decreases, which provides excellent efficiency at light loads, and burst mode prevents audible noise. The MP183 can achieve less than 3mW of no-load consumption under 265V_AC, which is ideal for Internet of Things (IoT) applications, such as smart plugs and wall switches.

The MP183 features various protections, including thermal shutdown (TSD), VCC voltage (V_CC) under-voltage lockout (UVLO), brown-in (B/I), open-loop detection (OLD), overload protection (OLP), and short-circuit protection (SCP).

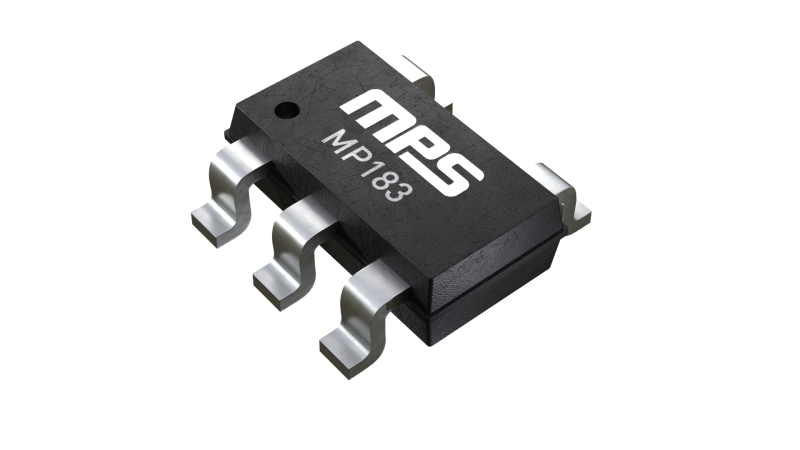

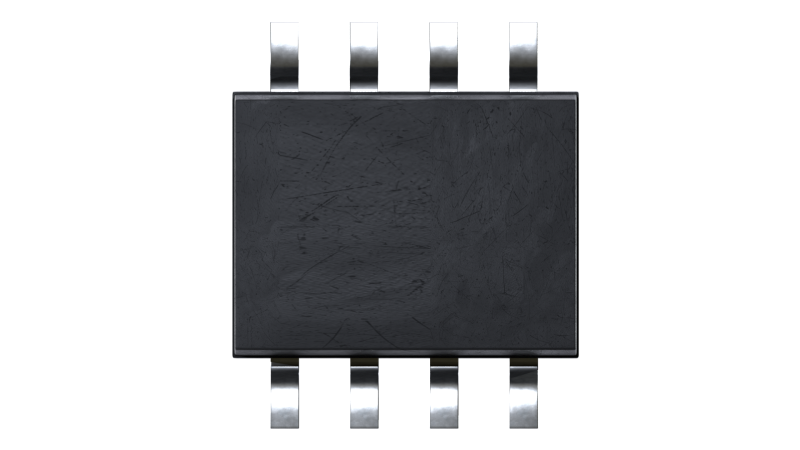

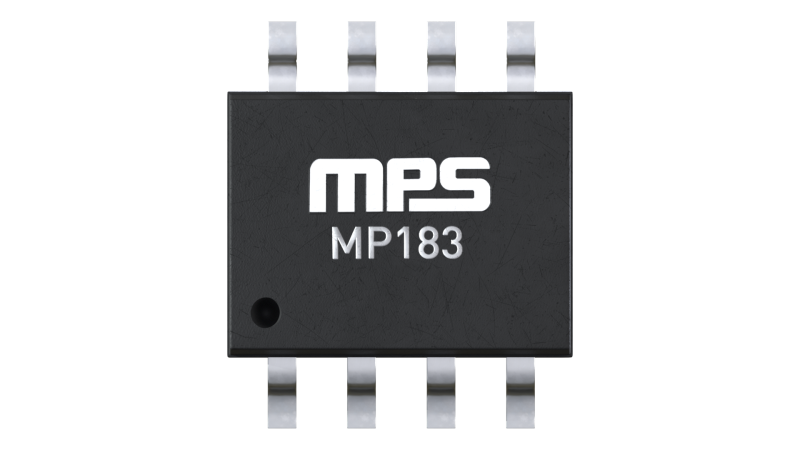

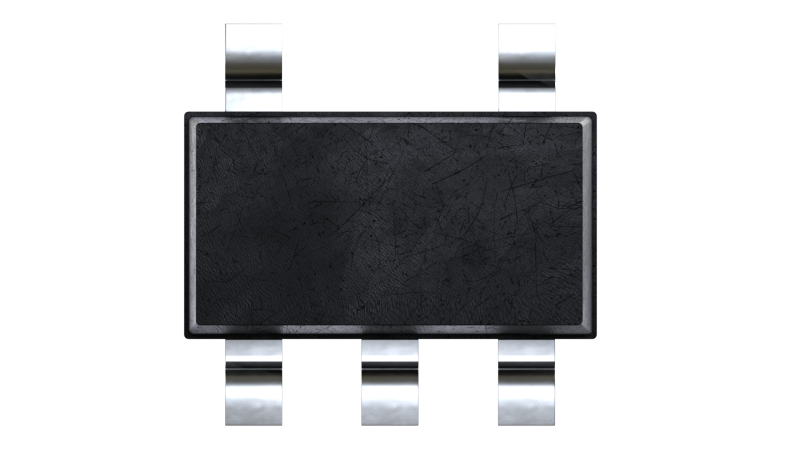

The MP183 is available in TSOT23-5 and SOIC-8 packages.

Features & Benefits

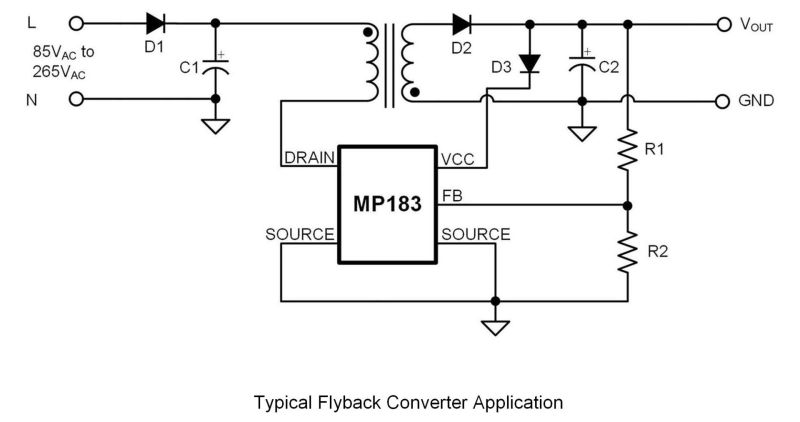

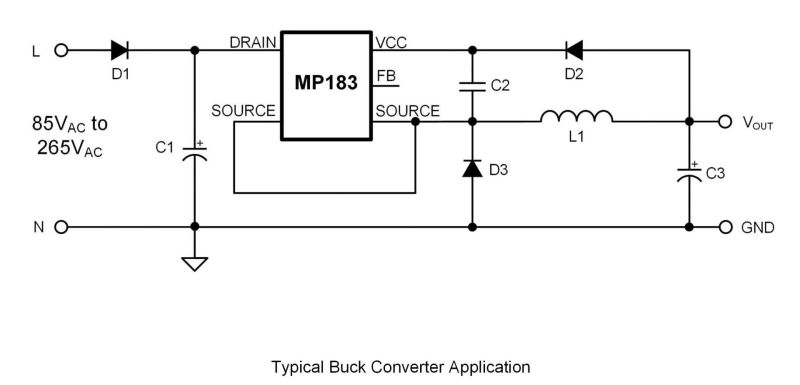

Constant Voltage (CV) Control Supports Buck, Buck-Boost, and Flyback Topologies
Integrated 700V, 17.5Ω MOSFET
Internal High-Voltage (HV) Current Source
Externally Adjustable, or Internally Fixed 12V Output
Improved Electromagnetic Interference (EMI) Performance
<3mW No-Load Consumption at 265V_AC and 5V Output
Anti-Audible Operation with Burst Mode
Frequency Foldback
Thermal Shutdown (TSD), V_CC Under-Voltage Lockout (UVLO), Brown-In (B/I), Open-Loop Detection (OLD), Overload Protection (OLP), and Short-Circuit Protection (SCP)
Available in SOIC-8 and TSOT23-5 Packages

Active Part Numbers:

MP183GJ-Z MP183GJ-P MP183GS-Z MP183GS-P

Meaning of P & Z

Related Products

EV183-J-00A 85V_AC/60Hz to 265V_AC/50Hz, 12V/0.25A Output, Zero-Standby Regulator in TSOT23-5 Package Evaluation Board

The EV183-J-00A is an evaluation board designed to demonstrate the capabilities of the MP183, a primary-side constant voltage (CV) regulator that provides accurate CV regulation without an optocoupler. It supports buck, buck-boost, boost, and flyback topologies.

The MP183 is designed for buck applications. It typically outputs 3W with a 12V/250mA load from an 85V_AC to 265V_AC input. The EV183-J-00A achieves low standby power consumption and high efficiency under full-load and light-load conditions. It can pass the IEC 61000-4-5 surge immunity test and meets EN55022/CISPR 22 Class B standards for conducted emissions. The radiated emissions performance is also improved.

Full protection features include thermal shutdown (TSD), VCC voltage (V_CC) under-voltage lockout (UVLO), brown-in (B/I), overload protection (OLP), short-circuit protection (SCP), and open-loop detection (OLD).

$25.00
+ tax

EV183-S-00A

85V_AC/60Hz to 265V_AC/50Hz, 12V/0.25A Output, Zero-Standby Regulator in SOIC-8 Package Evaluation Board
