2.8 - 22V V_IN, 1A I_OUT, 4-Switch,Integrated Buck-Boost Converter with I²C Interface

Datasheet

概要

The MP8860 is a synchronous, 4-switch, integrated buck-boost converter capable of regulating the output voltage from a 2.8V to 22V wide input voltage range with high efficiency.

The MP8860 uses constant-on-time (COT) control in buck mode and constant-off-time control in boost mode, providing fast load transient response and smooth buck-boost mode transient. The MP8860 provides auto PFM/PWM or forced PWM switching modes, and programmable output constant current (CC) current limit, which supports flexible design for different applications.

Full protection features include over-current protection (OCP), over-voltage protection (OVP), under-voltage protection (UVP), programmable soft start, and thermal shutdown.

The MP8860 is available in a 16-pin QFN (3mmx3mm) package.

機能と利点

Wide 2.8V to 22V Operating Input Voltage Range
1V ⁽¹⁾ to 20.47V Output Voltage Range (5V Default) with 10mV Resolution through I²C
1A Output Current or 4A Input Current
Four Low R_DS(ON) Internal Buck Power MOSFETs
Adjustable Accurate CC Output Current Limit with Internal Sensing MOSFET via I²C
500kHz Switching Frequency
Output Over-Voltage Protection (OVP) Hiccup
Output Short-Circuit Protection (SCP) with Hiccup
Over-Temperature Warning and Shutdown
I²C Interface with ALT Pin
Four Programmable I²C Addresses
One-Time Programmable (OTP) Non-Volatile Memory
I²C Programmable Line Drop Compensation, PFM/PWM Mode, Soft Start, OCP, etc.
EN Shutdown Discharge Programmable
Available in a QFN-16 (3mmx3mm) Package

アクティブ部品番号

MP8860GQ-xxxx-P MP8860GQ-xxxx-Z

P＆Zの意味

Evaluation Tools

EV8860-Q-00A Evaluation Kit 2.8 - 22V V_IN, 1A I_OUT, 4-Switch, Integrated Buck-Boost Converter with I²C Interface

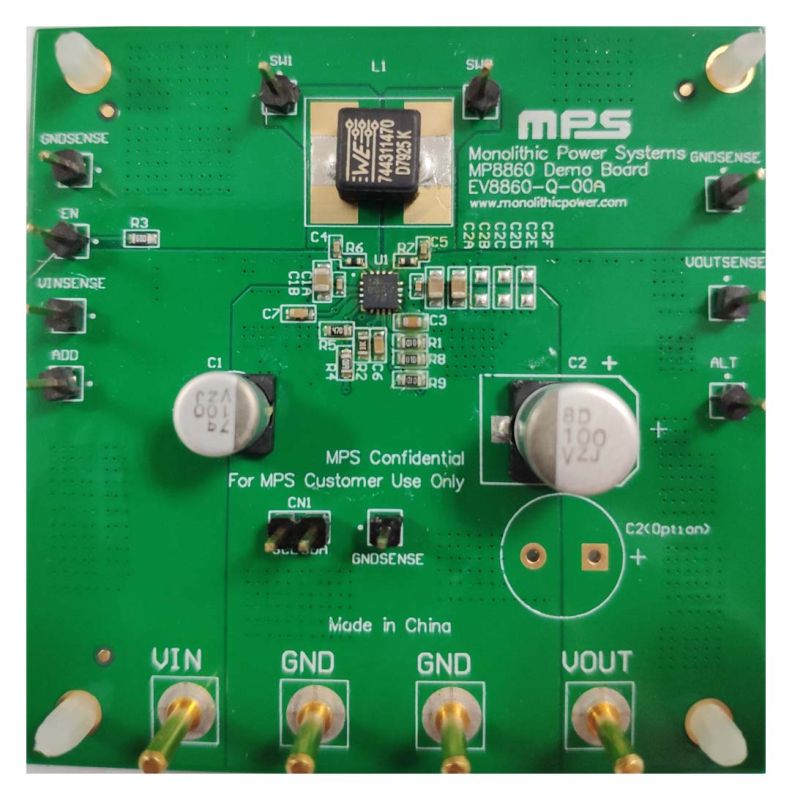

The EV8860-Q-00A is an evaluation board for MP8860, which is a synchronous, 4-switch, integrated buck-boost converter capable of regulating the output voltage from a 2.8V to 22V wide input voltage range with high efficiency. The integrated output voltage scaling and adjustable output current limit functions meet the USB power delivery (PD) requirement.

The MP8860 uses constant-on-time (COT) control in buck mode and constant-off-time control in boost mode, providing fast load transient response and smooth buck-boost mode transient. The MP8860 provides auto PFM/PWM or forced PWM switching modes, programmable output constant current (CC) current limit, which supports flexible design for different applications.

Full protection features include over-current protection (OCP), over-voltage protection (OVP), under-voltage protection (UVP), programmable soft start, and thermal shutdown.

The MP8860 is available in a 16-pin QFN (3mmx3mm) package.
