MP6526

MP6526

Hex Half-Bridge Motor Driver with Serial Input Control

Datasheet

概要

The MP6526 is a six-half-bridge, DMOS, output driver with integrated power MOSFETs that can drive up to six different loads.

The six half-bridges can be controlled separately from a standard serial data interface and have various diagnostic functions. The MP6526 has very low quiescent current in standby mode, making it suitable for a wide range of applications.

Full protection features include short-circuit protection (SCP), under-voltage protection (UVP), and thermal shutdown.

The MP6526 requires a minimal number of readily available, standard, external components and is available in SOIC-28, QFN-24 (4mmx4mm), and QFN-24 (5mmx5mm) packages.

機能と利点

Up to 0.9A Output Current
Total Max Current 2.4A (All Outputs Combined)
R_DS(ON) (HS + LS) Typically 1.1Ω at 25°C, Maximum 2Ω at 150°C
Very Low Quiescent Current I_VS < 6μA in Standby Mode Versus Total Temperature Range
Outputs Short-Circuit Protected
Over-Temperature Protection (OTP) and Pre-Warning
Under-Voltage Protection (UVP)
Serial Data Interface
Various Diagnostic Functions: Shorted Output, Open-Load, Over-Temperature, and Under-Voltage
Fault Output Flag
Daisy-Chaining Possible
Serial Interface Clock Frequency up to 3MHz, 5V Compatible
Available in SOIC-28, QFN-24 (4mmx4mm) and QFN-24 (5mmx5mm) Packages

アクティブ部品番号

MP6526GR-P MP6526GR-Z MP6526GU-P MP6526GU-Z MP6526GY-P MP6526GY-Z

P＆Zの意味

Evaluation Tools

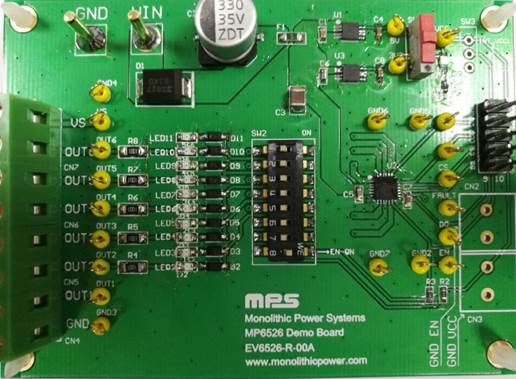

EVQ6526-R-00A Evaluation Kit 0.9A, 28V Six Half-Bridge Motor Driver Evaluation Board

The MPQ6526 is a six half-bridge DMOS output driver with integrated power MOSFETs. It can drive up to six different loads. The input voltage ranges from 7V to 28V, with the up to 0.9A output current capability.

The six half-bridges of MPQ6526 can be controlled separately from a standard serial data interface, and have various diagnostic functions. It has very low quiescent current in standby mode make a wide range of applications possible.

Fully protection includes short-circuit protection, under-voltage protection and thermal shutdown.

￥14,461.00
+ tax

EVQ6526-U-00A

0.9A, 28V Six Half-Bridge Motor Driver Evaluation Board
