MP2125

MP2125

NOT RECOMMENDED FOR NEW DESIGNS

Dual 1.5A, 1.2MHz Synchronous Step-Down Converter

ALTERNATIVE PART

NRFND Datasheet

MP2125 continues to be in production for existing customers. Please consider this alternative for new designs:

MP2122

6V, 2A, Low Quiescent Current Dual, SYNC Buck Regulator

Features & Benefits

Dual 2A-Output Current
>93% Peak Efficiency
>80%Light-Load Efficiency
Wide 2.7V-to-6V OperatingInputRange
80mΩ and 35mΩ Internal Power MOSFET
1MHz Fixed Switching Frequency
Adjustable Output from 0.608V to VIN
180° Phase-Shifted Operation
100% Duty-Cycle Operation
45µA Quiescent Current
Cycle-by-Cycle Over-Current Protection
Short-Circuit Protection with Hiccup Mode
Thermal Shutdown
Available in an 8-pin TSOT23-8 Package

… and many more!

概要

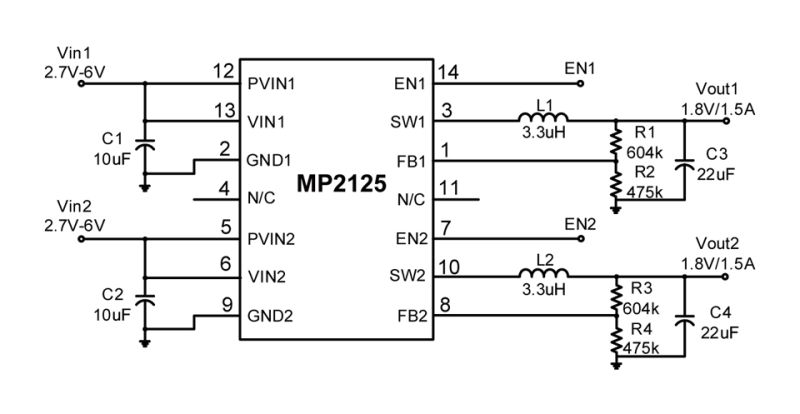

The MP2125 is a fully integrated dual PWM step-down converter with built-in internal power MOSFETs. It is ideal for powering portable equipment that runs from a single cell Lithium-Ion (Li+) Battery, with an input range from 2.7V to 6V. The MP2125 can provide up to 1.5A of load current with output voltage as low as 0.8V for each output. It can also operate at 100% duty cycle for low dropout applications. With peak current mode control and internal compensation, the MP2125 is stable with ceramic capacitors and small inductors. Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown. MP2125 is available in the small 14-pin 3mmx4mm QFN package.
