The MP2721 is a highly integrated, 5A, switch-mode battery management device for single-cell Li-ion or Li-polymer batteries. The narrow-voltage DC (NVDC) power management structure provides a low-impedance power path that optimizes charging efficiency, reduces battery charging time, and extends battery life during discharging.
The device’s input source type identification algorithm supports USB battery charging specification 1.2 (BC1.2) and non-standard adapter detection.
The serial interface offers complete operating control, including charging parameter configuration and status/interrupt monitoring.
The MP2721 supports a fully customizable JEITA profile with configurable temperature windows and actions.
The MP2721 is available in a QFN-22 (2.5mmx3.5mm) package.
- Show more Show less
Features & Benefits
- Supports USB BC1.2 and Non-Standard Adapters
- 26V Sustainable Input Voltage (VIN)
- Configurable 80mA to 5A Charge Current (ICC) via the Serial Interface
- Configurable 100mA to 3.2A Input Current Limit (IIN_LIM) via the Serial Interface
- Minimum VIN Loop for Maximum Adapter Power Tracking
- Comprehensive Safety Features:
- Fully Customizable JEITA Profile
- Additional Negative Temperature Coefficient (NTC) Thermistor Input
- Configurable Die Temperature Regulation from 60°C to 120°C
- Complete Charge and Pre-Charge Safety Timers
- Watchdog Safety Timer
- Lockable Registers for Charging Parameters
- Configurable 750kHz to 1.5MHz Switching Frequency (fSW)
- Integrated 15mΩ Low RDS(ON) Battery MOSFET with Shipping Mode and Reset Mode
- Ultra-Low 8.5μA Battery Discharge Current in Shipping Mode
- Down to 30mA Termination Current Settings for Wearable Applications
- Serial Interface Port for Flexible System Parameter Setting and Status Reporting
- Configurable Boost Converter for Source Mode and USB On-The-Go (OTG):
- Configurable Output Current (IOUT) Limit Loop Up to 3A
- Output Over-Current Protection (OCP)
- Ability to Power in Large Capacitive Loads Up to 2mF
- Configurable 5V to 5.35V Output Voltage (VOUT)
- ±0.5% Battery Regulation Voltage (VBATT_REG)
- ±5% ICC
- ±5% IIN_LIM
- Remote Battery Sensing for Fast Charge Mode
- ±2% Output Regulation in Boost Mode
- Available in a Small QFN-22 (2.5mmx3.5mm) Package
Active Part Numbers:
MP2721GRH-xxxx-Z MP2721GRH-xxxx-P MP2721GRH-0000-Z MP2721GRH-0000-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z

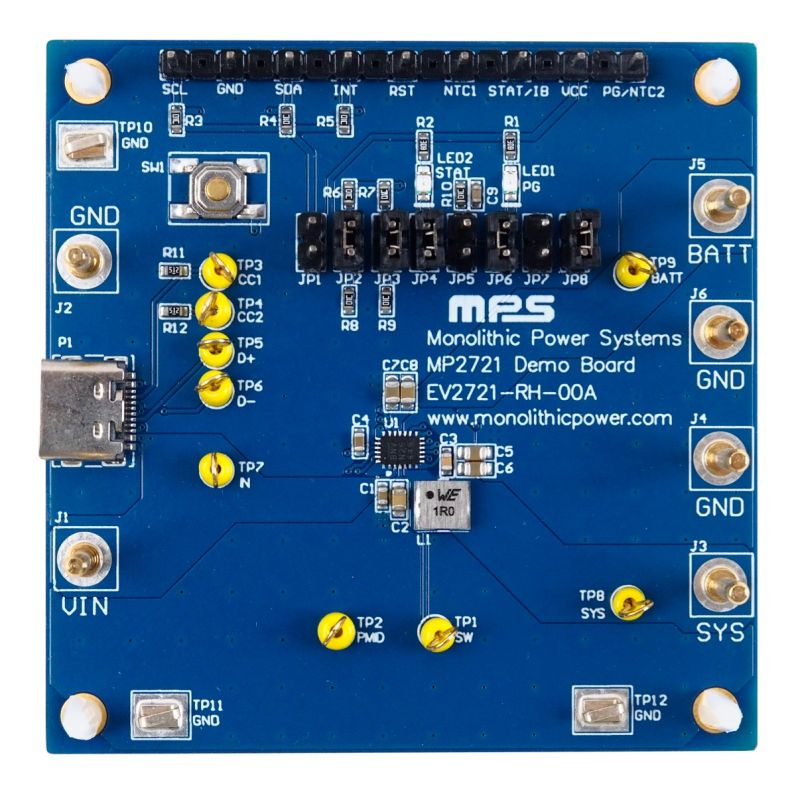

EV2721-RH-00A Evaluation Kit 5A, Single-Cell, NVDC Buck Charger Evaluation Board with Serial Interface Control
The EV2721-RH-00A is an evaluation board designed to demonstrate the capabilities of the MP2721, a highly integrated, 5A, switch-mode battery management device for single-cell Li-ion or Li-polymer batteries. The narrow-voltage DC (NVDC) power management structure provides a low-impedance power path that optimizes charging efficiency, reduces battery charging time, and extends battery life during discharging.
USB Battery Charging Specification 1.2 (BC 1.2) and non-standard adaptor detection are supported by the input source type identification algorithm. The serial interface provides complete operating control, charging parameter configuration, and status/interrupt monitoring. The MP2721 supports a fully customizable JEITA profile with configurable temperature windows and actions.
The EV2721-RH-00A supports input sources up to 16V, including standard USB host ports and high-voltage wall adapters with fast charge capability. The EV2721-RH-00A supports boost mode and USB On-The-Go (OTG) operation by supplying a voltage between 5V and 5.35V at the IN pin, with up to 3A of current.
