EV2721-RH-00A

EV2721-RH-00A

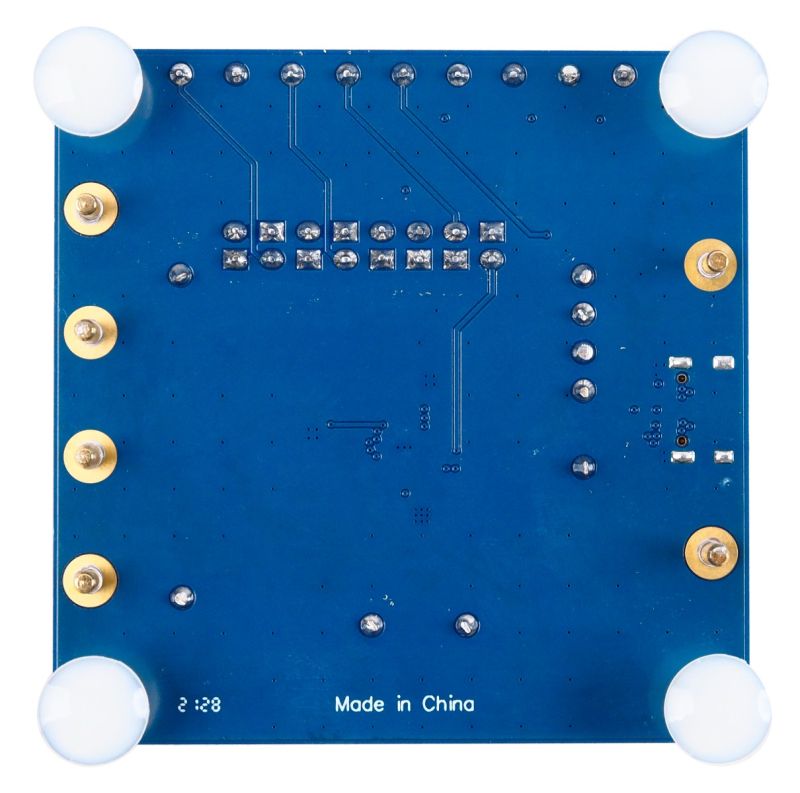

5A, Single-Cell, NVDC Buck Charger Evaluation Board with Serial Interface Control

Datasheet

Description

The EV2721-RH-00A is an evaluation board designed to demonstrate the capabilities of the MP2721, a highly integrated, 5A, switch-mode battery management device for single-cell Li-ion or Li-polymer batteries. The narrow-voltage DC (NVDC) power management structure provides a low-impedance power path that optimizes charging efficiency, reduces battery charging time, and extends battery life during discharging.

USB Battery Charging Specification 1.2 (BC 1.2) and non-standard adaptor detection are supported by the input source type identification algorithm. The serial interface provides complete operating control, charging parameter configuration, and status/interrupt monitoring. The MP2721 supports a fully customizable JEITA profile with configurable temperature windows and actions.

The EV2721-RH-00A supports input sources up to 16V, including standard USB host ports and high-voltage wall adapters with fast charge capability. The EV2721-RH-00A supports boost mode and USB On-The-Go (OTG) operation by supplying a voltage between 5V and 5.35V at the IN pin, with up to 3A of current.

Product Evaluated

Features & Benefits

Supports USB BC 1.2 and Non-Standard Adapters
26V Sustainable Input Voltage (V_IN)
80mA to 5A Charge Current (I_CC), Configurable via the Serial Interface
100mA to 3.2A Input Current Limit (I_{IN_LIM}), Configurable via the Serial Interface
Minimum V_IN Loop for Maximum Adapter Power Tracking
Comprehensive Safety Features:
- Fully Customizable JEITA Profile
- Additional Negative Temperature Coefficient (NTC) Thermistor Input
- Configurable Die Temperature Regulation from 60°C to 120°C
- Complete Charge and Pre-Charge Safety Timers
- Watchdog Safety Timer
- Lockable Registers for Charging Parameters
Configurable 750kHz to 1.5MHz Switching Frequency (f_SW)
Integrated 15mΩ Low-R_DS(ON) Battery MOSFET with Shipping and Reset Modes
Ultra-Low 8.5μA Battery Discharge Current in Shipping Mode
Down to 30mA Termination Current Settings for Wearable Applications
Serial Interface Port for Flexible System Parameter Setting and Status Reporting
Configurable Boost Converter for Source Mode and USB On-The-Go (OTG):
- Configurable Output Current Limit Loop Up to 3A
- Output Over-Current Protection (OCP)
- Ability to Power into Large Capacitive Loads Up to 2mF
- Configurable 5V to 5.35V Output Voltage (V_OUT)
Accuracy:
- ±0.5% Battery Regulation Voltage (V_{BATT_REG})
- ±5% ICC
- ±5% I_{IN_LIM}
- Remote Battery Sensing for Fast Charge
- ±2% Output Regulation in Boost Mode
Available in a Small QFN-22 (2.5mmx3.5mm) Package

Active Part Numbers:

EV2721-RH-00A

Design Resources

Symbol, Footprint & 3D Model

Buy direct from MPS

Standard Pricing

Quantity Price
1

$50.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

MPS I2C Communication kit required

Yes, Add EVKT-USBI2C-02 $50.00

No, I already have one

Quantity

100 Max per Company.
Limited Inventory to support product development.
