MP2625

NOT RECOMMENDED FOR NEW DESIGNS

1.5MHz Switching Li-Ion Charger, with NVDC Power Path Management

ALTERNATIVE PART

NRFND Datasheet

MP2625 continues to be in production for existing customers. Please consider this alternative for new designs:

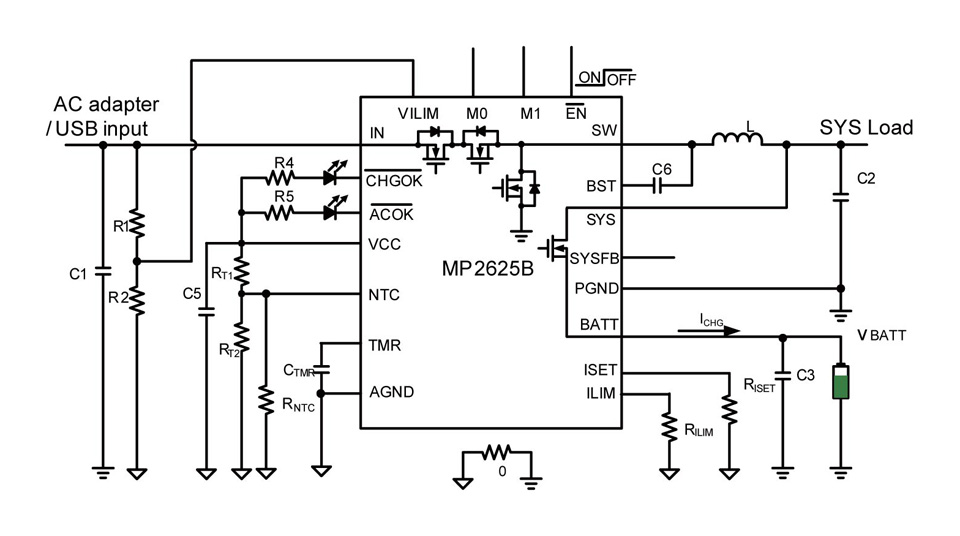

MP2625BGL-Z

2A, Switch-Mode Li-Ion Charger with NVDC Power Path Management

Features & Benefits

4V to 10V Operating Input Voltage
Smart Power Path Management
Five Control Loops: Input Current Limit, Input Voltage Limit, Constant Charge Current, Terminal Battery Control and Thermal Fold-Back.
1.6MHz Switching Frequency
Programmable Input Current Limit
Programmable Charge Current
Single Input for USB and AC adapter
Cover USB2.0 and USB3.0 Input Specification
Fully Integrated Power Switches
No External Blocking Diode and Sense Resistor Required
Charging Operation Indicator
Built-in Programmable Charging Timer
Thermal Limiting Regulation on Chip
Battery Temperature Monitor
Tiny Package Features Small Size

… and many more!

Parameters Description

Vbatt (max) (V)
4.2
Icharge (max) (A)
2
Battery Type
Li-Ion
Package (mm)
QFN-20 (3x4)
Series Cells
1
Grade
Catalog
Timer
No
Charge Status
No
Idis (A)
2.5

The MP2625 is a monolithic switch mode battery charger with power path management for single-cell Li-ion batteries in a wide range of tablet and other portable devices. It integrates a synchronous BUCK regulator to provide regulated voltage for powering the system output and at the same time charging the battery. This device supports both USB and high power DC adapter input. In USB mode, the input current limit can be programmed to 450mA or 825mA via the logic pins to cover the USB2.0 and USB3.0 specifications. When the adapter input is present, the input current can also be limited in order to avoid overloading of the DC adapter. Input current limit can be programmed up to 2A. The smart power path management allows MP2625 to regulate the system voltage for powering an external load and charging the battery independently and simultaneously. This allows immediate system operation even under missing or deeply discharged battery. When the input current limit is reached, the system load is satisfied in priority, then the charger will take the remaining current to charge the battery. Additionally, the smart power path control allows an internal connection from battery to the system in order to supplement additional power to the load in the event the system power demand increases over the input limited power or the input is removed. The MP2625 features high integration with all the power switches included inside. No external MOSFET, blocking diodes, or current sense resistor is req

Features & Benefits

4V to 14V Operating Input Voltage
Smart Power Path Management
Five Control Loops: Input Current Limit, Input Voltage Limit, Constant Charge Current, Terminal Battery Control and Thermal Fold-Back.
1.6MHz Switching Frequency
Programmable Input Current Limit
Programmable Charge Current
Single Input for USB and AC adapter
Cover USB2.0 and USB3.0 Input Specification
Fully Integrated Power Switches
No External Blocking Diode and Sense Resistor Required
Charging Operation Indicator
Built-in Programmable Charging Timer
Thermal Limiting Regulation on Chip
Battery Temperature Monitor
Tiny Package Features Small Size
