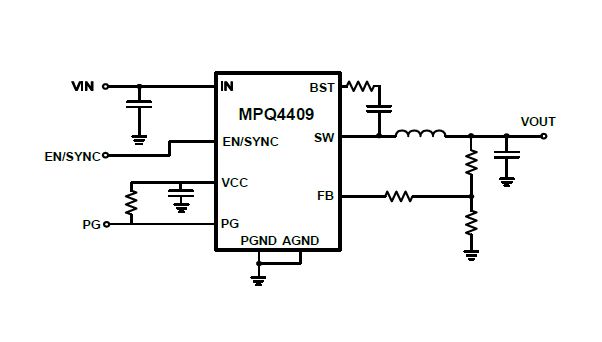

MPQ4409-AEC1
24V, 900mA, 2.2MHz, High-Efficiency, Synchronous Step-Down Converter, AEC-Q100 Qualified
Session textval
Session Titefor popup
Description
The MPQ4409 is a high-frequency, synchronous, rectified, step-down switch-mode converter with built-in power MOSFETs. The MPQ4409 offers a very compact solution that achieves 900mA of continuous output current, with excellent load and line regulation across a wide input supply range. The MPQ4409 uses synchronous mode operation for higher efficiency across the output current load range.
Current mode operation provides fast transient response and eases loop stabilization. Full protection features include over-current protection (OCP) and thermal shutdown.
The MPQ4409 requires a minimal number of readily available, standard external components. It is available in a space-saving QFN-13 (2.5mmx3mm) package.
-
Show more
Show less
Features & Benefits
- Wide 4V to 24V Operating Input Range
- 900mA Continuous Load Current
- 90mΩ/50mΩ Low RDS(ON) InternalPower MOSFETs
- High-Efficiency Synchronous Mode Operation
- Default 2.2MHz Switching Frequency
- 450kHz to 2.2MHz Frequency Sync
- Forced Continuous Conduction Mode (CCM)
- Internal Soft Start (SS)
- Power Good (PG) Indicator
- Over-Current Protection (OCP) with Valley-Current Detection and Hiccup Mode
- Thermal Shutdown
- Output Adjustable from 0.807V
- CISPR25 Class 5 Compliant
- Available in a QFN-13 (2.5mmx3mm) Package
- Available in a Wettable Flank Package
- Available in AEC-Q100 Grade 1
Active Part Numbers:
MPQ4409GQBE-AEC1-Z MPQ4409GQBE-AEC1-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
