- MPM3805
MPM3805
You have a basic account.A myMPS+ account is needed.
Upgrade to myMPS+Session textval
Session Titefor popup
Description
-
Show more
Show less
Features & Benefits
- Wide 2.5V to 6V Operating Input Range
- Fixed and Adjustable output from 0.6V
- 3mm x 2.5mm x 0.9mm QFN Package
- Total Solution Size 6mm x 3.8mm
- Up to 0.6A Output Current
- 100% Duty Cycle in Dropout
- Ultra Low IQ: 17µA
- EN and Power Good for Power Sequencing
- Cycle-by-Cycle Over-Current Protection
- Short Circuit Protection with Hiccup Mode

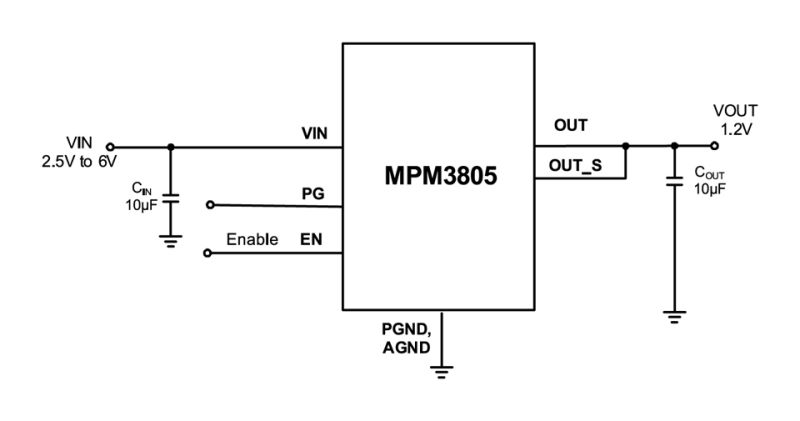

- Adjustable Output Only Needs 4 External Components - 2 Ceramic Capacitors and FB Divider Resistors
- Fixed Output only Needs Input and Output Capacitors

Active Part Numbers:
MPM3805GQB-P MPM3805GQB-Z MPM3805GQB-12-P MPM3805GQB-12-Z MPM3805GQB-18-P MPM3805GQB-18-Z MPM3805GQB-25-P MPM3805GQB-25-Z MPM3805GQB-33-P MPM3805GQB-33-Z
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
MPM3805 Resources
-
