MP4235
Session textval
Session Titefor popup

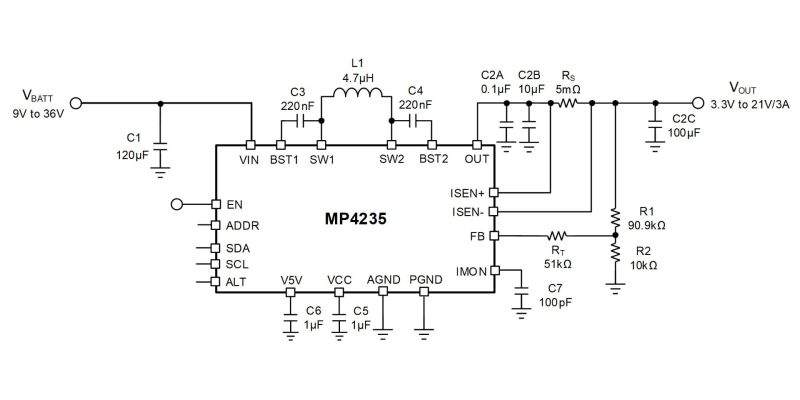

Description
The MP4235 is a synchronous, four-switch buck-boost converter with integrated MOSFETs. The device can deliver up to 6A of output current (IOUT) at certain input supply ranges with excellent efficiency.
The MP4235 is suitable for USB power delivery (PD) and wireless charging applications. It can work well with external PD or wireless charging controllers through the I2C interface.
The I2C interface and one-time programmable (OTP) memory provide flexibility for configurable parameters.
Fault condition protections include constant-current (CC) limiting, output and input over-voltage protection (OVP), and thermal shutdown (TSD).
The MP4235 requires a minimal number of readily available, standard external components, and is available in a small QFN-19 (4mmx5mm) package with wettable flanks.
-
Show more
Show less
Features & Benefits
- 6A Buck-Boost Converter with Four Integrated MOSFETs
- 3V to 36V Operating Input Voltage (VIN) Range, with 2.7V Falling Voltage
- 1V to 24V Output Voltage (VOUT) Range
- I2C-Configurable Reference Voltage (VREF) Range: 0.1V to 2.147V with 1mV Resolution
- Up to 98.14% Peak Efficiency
- Integrated 5V/60mA Low-Dropout (LDO) Regulator to Supply External Microcontroller Unit (MCU)
- Selectable Input or Output Constant-Current (CC) Limit with 5% Accuracy via Factory Trimming
- Accurate Output Current (IOUT) Monitor
- Selectable 280kHz, 420kHz, 600kHz, or 1MHz Switching Frequency (fSW) with Frequency Spread Spectrum (FSS)
- Selectable Automatic Pulse-Frequency Modulation (PFM) or Pulse-Width Modulation (PWM) Mode and Forced PWM Mode
- Configurable I2C Slave Address Supported by the ADDR Pin and I2C Register
- Line Drop Compensation
- I2C, Alert, and One-Time Programmable (OTP) Memory
- Enable (EN) Shutdown Passive Discharge
- Available in a QFN-19 (4mmx5mm) Package with Wettable Flanks
- Optimized Performance with MPS Inductor MPL-AY Series

Active Part Numbers:
MP4235GVE-xxxx-Z MP4235GVE-xxxx-P MP4235GVE-0000-Z MP4235GVE-0000-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
