- HF600-40
HF600-40
Session textval
Session Titefor popup

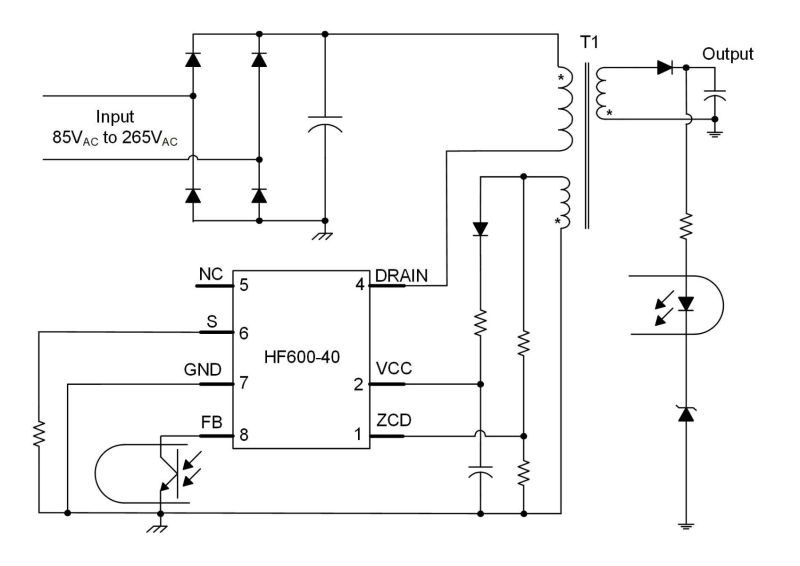

Description
The HF600-40 is a highly integrated, multi-mode flyback regulator that is suitable for high-performance and high-efficiency designs. The device adopts continuous conduction mode (CCM) or quasi-resonant (QR) mode. Unlike conventional QR flyback regulators, the HF600-40 provides frequency foldback to guarantee high efficiency across the entire load range.
The HF600-40 is a secondary-side regulation (SSR)-based primary regulator, which must work with secondary-side feedback circuitry. The device integrates high-voltage start-up circuits with an ultra-low quiescent current (IQ) in burst mode. As a result, power consumption under no load can be below 30mW.
The HF600-40 adopts the patented valley lock technique to restrain valley jumping from one to the other during operation, which can prevent audible noise. The device also adopts various pulse-frequency modulation (PFM) modes based on the input voltage (VIN), which can significantly enhance the output power (POUT) capacity for wide input applications.
The HF600-40 features advanced protections, including primary-sense output over-voltage protection (ZCD OVP), primary-sense output under-voltage protection (ZCD UVP), VCC over-voltage protection (VCC OVP), output overload protection (OLP), internal brown-in (B/I), short-circuit protection (SCP), current-sensing short/open protection (SSP/SOP), internal thermal shutdown (OTP), and under-voltage lockout (UVLO).
The HF600-40 is available in a PDIP8-7B package.
-
Show more
Show less
Features & Benefits
- Integrated 700V/850mΩ MOSFET
- Novel Patented Continuous Conduction Mode (CCM) or Quasi-Resonant (QR) Control to Eliminate Audible Noise
- Frequency Foldback Down to 25kHz at Light Loads
- Burst Mode for Low Standby Power Consumption
- Built-In, High-Voltage Start-Up Circuit
- Extremely Low Operating Current in Standby Mode (<30mW)
- Frequency Jittering for a Reduced EMI Signature
- Peak Current Mode Control, Line Compensation, and Leading Edge Blanking
- Under-Voltage Lockout (UVLO)
- VCC Over-Voltage Protection (OVP)
- Zero-Current Detection (ZCD) OVP
- ZCD Under-Voltage Protection (UVP)
- Overload Protection (OLP)
- Brown-In (B/I)
- Short-Circuit Protection (SCP)
- Current-Sensing Short/Open Protection (SSP/SOP)
- Over-Temperature Protection (OTP)
- Available in a PDIP8-7B Package

Active Part Numbers:
HF600GP-40-Z HF600GP-40-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
