MP28490

MP28490

NOT RECOMMENDED FOR NEW DESIGNS

5A, 30V, 420kHz Step-Down Converter with Power Good. Output Adjustable from 0.8V to 15V.

代替品

データシート

MP28490 continues to be in production for existing customers. Please consider this alternative for new designs:

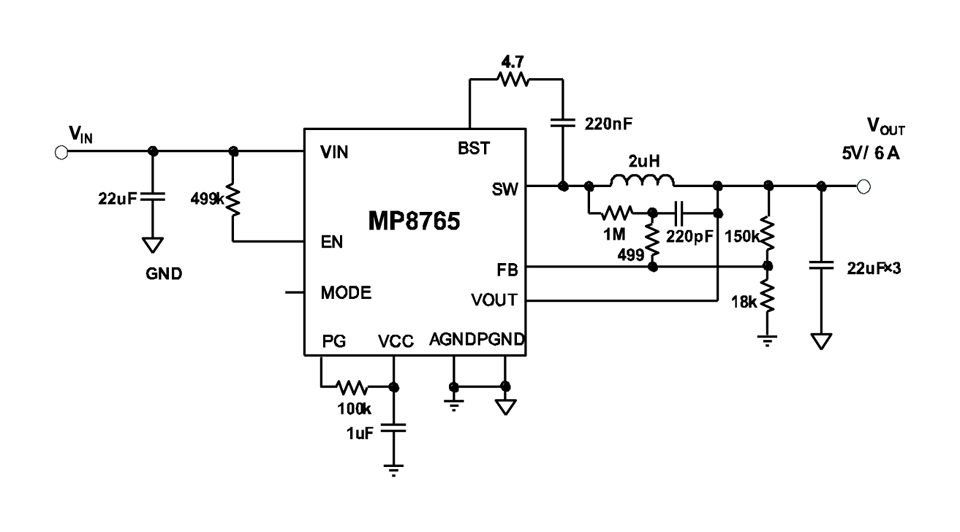

MP8765

ヒカップOCP、PWM / PFMモードピンおよび出力放電付き、24V、6A、高効率、同期整流ステップダウンコンバータ

Features & Benefits

5V〜24Vの広い動作入力範囲
6Aの連続出力電流
PFM / PWMモード選択可能
低RDS (ON) パワーMOSFET内蔵
独自のスイッチング損失低減技術
1%の基準電圧
7ms内部ソフトスタート
出力放電
500kHzのスイッチング周波数
ヒカップOCP保護とサーマルシャットダウン
自動再試行OVP保護
0.604V～5.5Vまで調整可能な出力

… and many more!

概要

The MP28490 is a monolithic step-down switch mode converter with a built in internal power MOSFET. It achieves 5A continuous output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown. The MP28490 requires a minimum number of readily available standard external components and is available in an 8-pin SOIC package with exposed pad.
