MP28262

MP28262

NOT RECOMMENDED FOR NEW DESIGNS

21V, 2A, 1.1MHz Synchronous Step-down Converter

ALTERNATIVE PART

NRFND Datasheet

MP28262 continues to be in production for existing customers. Please consider this alternative for new designs:

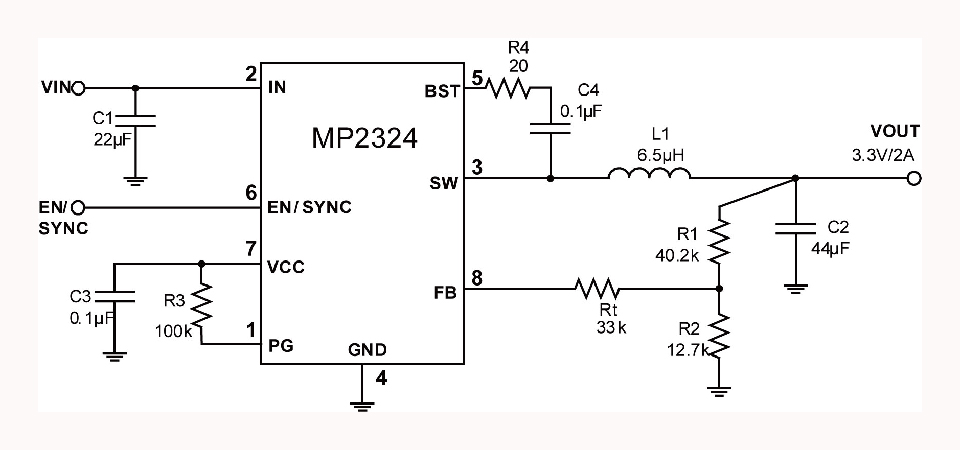

MP2324

2A, 24V, 500kHz, Synchronous Step-Down Converters With PG, Light Load Mode and Low Iq

Features & Benefits

Wide 4.5V to 24V Operating Input Range
120mO/50mO Low Rds(on) Internal Power MOSFETs
Low Quiescent Current
High Efficiency Synchronous Mode Operation
Fixed 500kHz Switching Frequency
Frequency Sync from 200kHz to 2MHz External Clock
Power Save Mode at light load
Internal Soft Start
Power Good Indicator
OCP Protection and Hiccup
Thermal Shutdown
Output Adjustable from 0.8V
Available in an 8-pin TSOT-23 package

… and many more!

概要

The MP28262 is a high frequency synchronous rectified step-down switch mode converter with built in internal power MOSFETs. It offers a very compact solution to achieve 2A continuous output current over a wide input supply range with excellent load and line regulation. The MP28262 operates at high efficiency over a wide output current load range. Current mode operation provides fast transient response and eases loop stabilization. Full protection features include OCP and thermal shut down. The MP28262 requires a minimum number of readily available standard external components and is available in a space saving 3mm x 4mm 14-pin QFN package.
