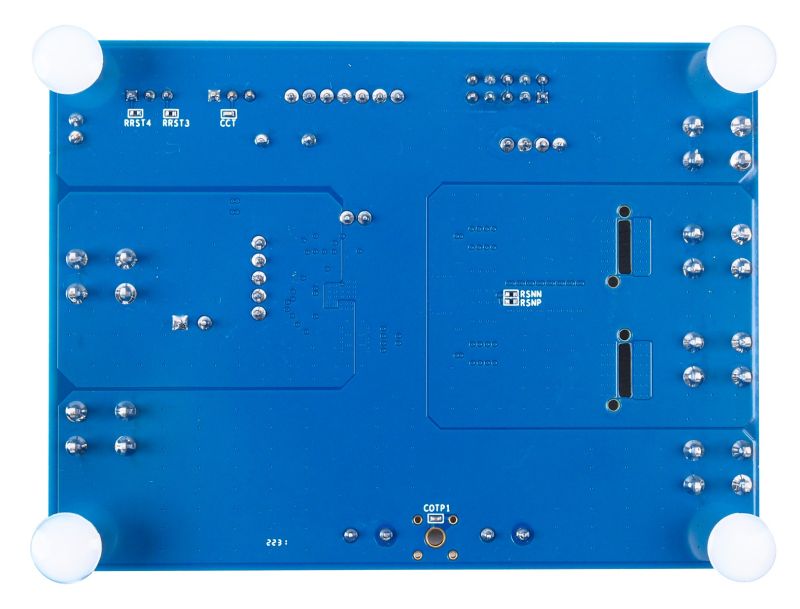

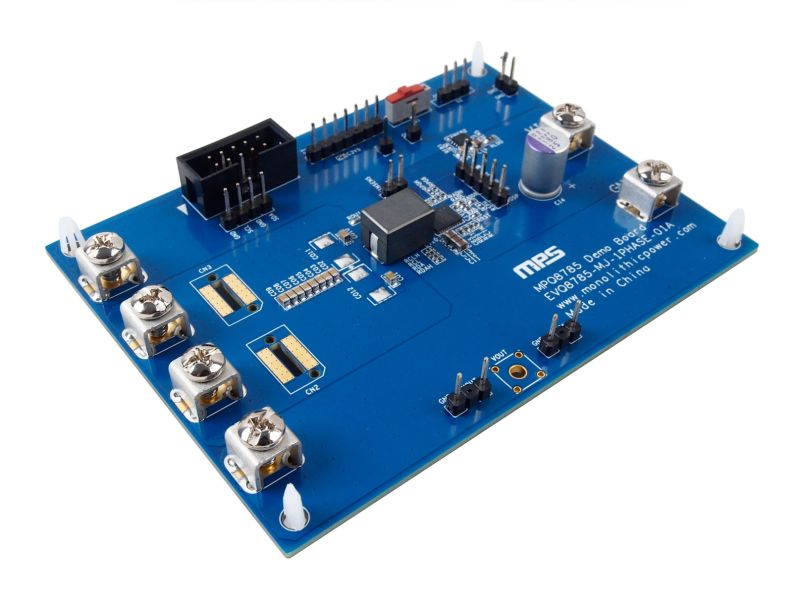

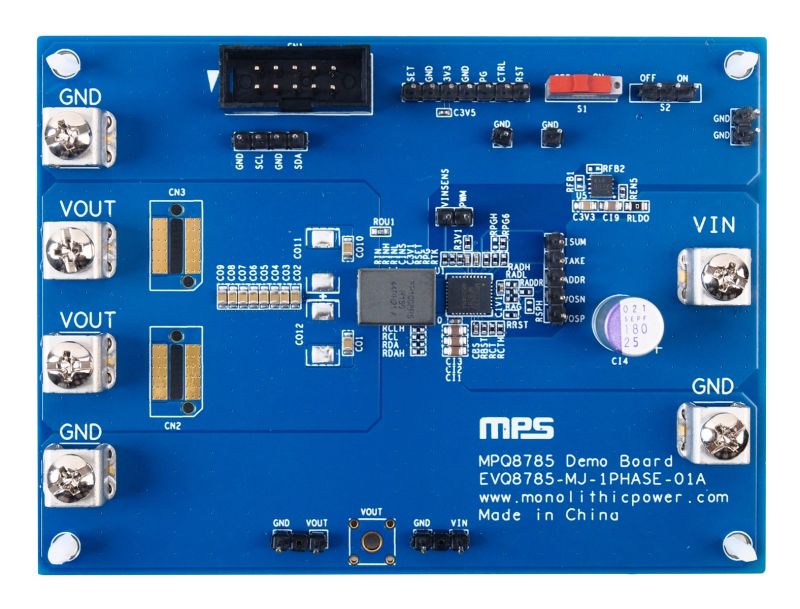

The EVQ8785-MJ-1PHASE-01A is an evaluation board designed to demonstrate the capabilities of the MPQ8785, a fully integrated, PMBus-compatible, high-frequency, synchronous buck converter. The MPQ8785 offers a very compact solution that achieves up to 40A of output current (IOUT) per phase, with excellent load and line regulation across a wide input supply voltage (VIN) range. The MPQ8785 achieves high efficiency across a wide IOUT load range. The PMBus interface provides the converter configurations and monitors key parameters.
The device adopts MPS’s proprietary, digital, multi-phase constant-on-time (MCOT) control to provide fast transient response and ease loop stabilization. The MCOT scheme also allows multiple MPQ8785 devices to be connected in parallel, with excellent current-sharing and phase interleaving for high-current applications.
Fully integrated protection features include over-current protection (OCP), over-voltage protection (OVP), under-voltage protection (UVP), and over-temperature protection (OTP).
The MPQ8785 requires a minimal number of readily available, standard external components, and is available in a TLGA-37 (5mmx6mm) package.
もっと見る少なく表示
アカウントにログイン
Your email must be verified before you can log in. A message with a link to complete the verification process has been sent to your email address.
3.1V to 16V Input Voltage (VIN) with External 3.3V VCC Bias
40A of Continuous Output Current (IOUT)
Phase Redundancy to Ensure Uninterrupted Operation
Lossless and Accurate On-Die Current-Sensing with Auto-Matching
Accurate Current Balance Control in Multi-Phase Operation
Quiet SwitcherTM Technology (QSTTM) to Mitigate Switching Noise
Fault Recording (BBOX) to Ease Failure Analysis
Automatic PMBus Address Assignment to Provide Auxiliary Phase Data Reading
Adaptive Multi-Phase Constant-On-Time (MCOT) Control for Ultra-Fast Transient Response
Stable with Zero-ESR Output Capacitors
0.5% Reference Voltage (VREF) across 0°C to 85°C Junction Temperature (TJ) Range
1% VREF across -40°C to +125°C TJ Range
Output Voltage (VOUT) Adjustable from 0.35V to 0.9 x VIN, Up to 5.5V Max
VOUT, IOUT, VIN, and TJ Reporting
Built-In Multiple-Time Programmable (MTP) Memory to Store Custom Configurations with Cyclic Redundancy Check (CRC)/Check Sum
Configurable via the PMBus:
VOUT
IOUT Limit
Soft-Start Time
Selectable 300kHz Up to 2MHz Switching Frequency (fSW)
Over-Current Protection (OCP), Over-Voltage Protection (OVP), Under-Voltage Protection (UVP), and Over-Temperature Protection (OTP) with Options for Hiccup or Latch-Off Mode
