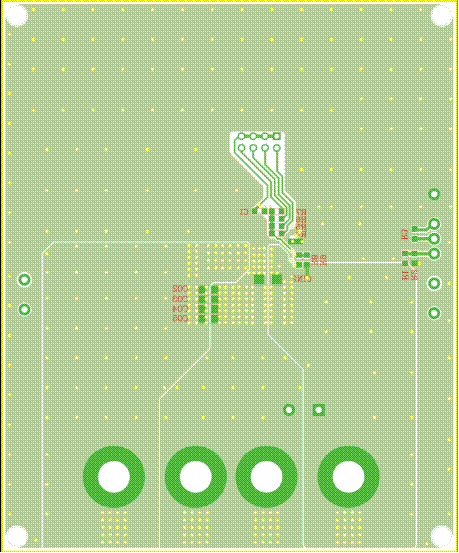

EVM3684-RU-00A

The EVM3684-RU-00A is used for demonstrating the performance of MPS’ MPM3684, a 15A step-down power module  with built-in power MOSFETs and power inductor.

High power efficiency over a wide load range is achieved by scaling down the switching frequency at light load to reduce the switching related loss by constant on time control. Over-Current-Protection, Over-Voltage Protection, Under-Voltage Protection, and thermal shutdown provide reliable operation.

MPM3684 is available in QFN 12x15x4mm package.
