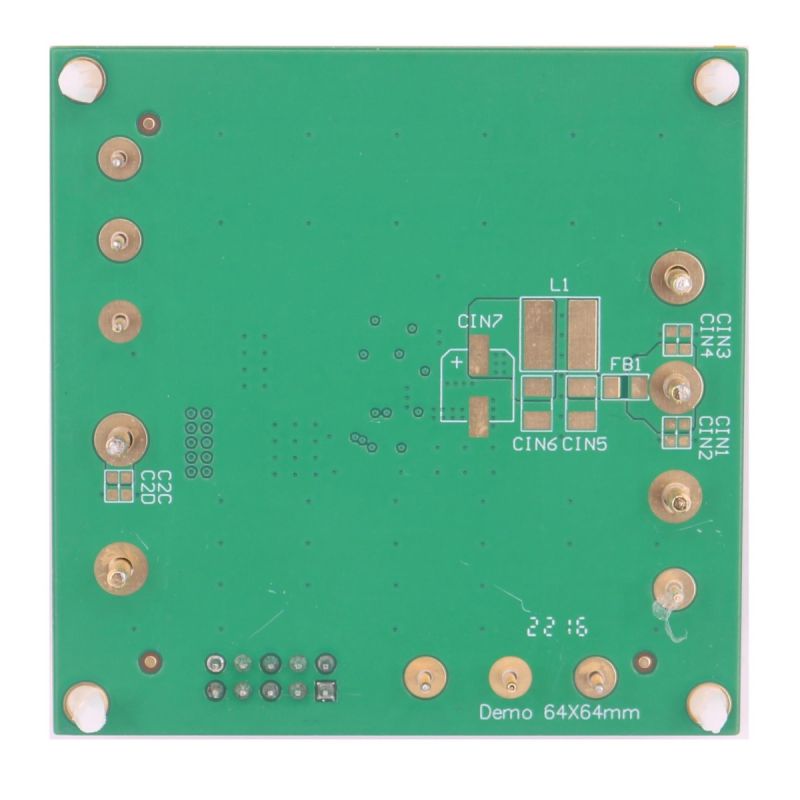

The EVL8883-Q-00A evaluation board is designed to demonstrate the capabilities of the MP8883, a high-frequency, synchronous, rectified step-down converter with an I2C control interface and multi-page one-time programmable (OTP) memory. The MP8883 can achieve up to 3A of continuous output current (IOUT) across a wide input voltage (VIN) supply range, with excellent load and line regulation.
The MP8883 is designed to be very versatile. The output voltage (VOUT) can be set between 0.8V and 12V via the I2C serial interface. The switching slew rate, switching frequency (fSW), enable (EN) control, and power-save mode can also be configured via the I2C. This allows users to optimize each output for the specific application requirements.
The MP8883 is available in a QFN-16 (3mmx3mm) package. It is recommended to read the MP8883 datasheet prior to making any changes to the EVL8883-Q-00A.
