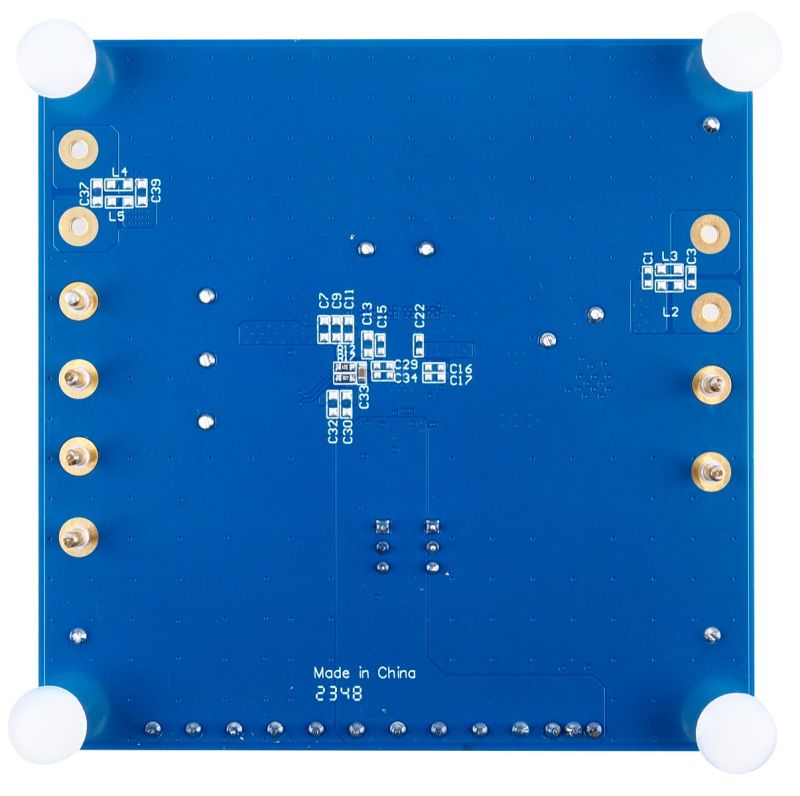

The EVL2761-VT-00A evaluation board is designed to demonstrate the capabilities of the MP2761, a buck-boost, narrow-voltage DC (NVDC) charger IC designed for applications with 2-cell to 4-cell series battery packs.
The MP2761 can accept a wide 4V to 22V operating input voltage (VIN) range to charge the battery and power the load connected on SYS. The device also supplies a wide 4V to 21V voltage at the IN pin in source mode, which is compliant with USB power delivery (PD) specifications.
When input power (PIN) is present, the EVL2761-VT-00A charges the battery with a maximum 6A of charge current (ICHG). It can also supply voltage at the input when source mode is enabled. In source mode, the output current (IOUT) is limited to 6A.
The MP2761 is available in a TQFN-30 (4mmx5mm) package.
