Description
The MP2005 is a micropower, ultra low-dropout LDO linear regulator. It has a 1.0V to 5.5V input voltage range and can regulate the output voltage from as low as 0.5V. The MP2005 can supply up to 800mA of load current with a typical dropout voltage of 90mV. It requires a bias supply (2.7V to 5.5V) separate from VIN to run the internal reference and LDO drive circuitry. The output current comes directly from the input voltage supply for high efficiency regulation. The 0.5V internal reference voltage allows the output to be programmed to a wide range of voltages (0.5V to 4V). A low bias current of 100µA makes the MP2005 ideal for use in battery-powered applications. The bias supply VBIAS can be directly applied from the battery while VIN is powered from the high efficiency buck regulator (or other secondary supply). This reduces output noise and the size of the decoupling capacitor. Other features of MP2005 include thermal overload and current limit protection, stability with ultra low ESR ceramic capacitors as low as 1μF, and fast transient response. The MP2005 is available in a 8-pin QFN (2mm x 3mm) package.
-
Show more
Show less
Features & Benefits
- Wide 1.0V to 5.5V Input Voltage Range
- Stable with 1μF Ceramic Capacitor
- Ultra-Low Dropout (ULDO) voltage: 90mV@800mA
- 2% Accurate Output Voltage
- Adjustable Output Range of 0.5V to 4V
- High PSRR
- 65dB at 1KHz
- 48dB at 1MHz
- Better Than 0.0005%/mA Load Regulation
- Stable With Low-ESR Output Capacitors
- Low 100μA Ground Current
- Internal Thermal Protection
- Current Limit Protection
- 1µA Typical Quiescent Current at Shutdown

Active Part Numbers:
MP2005DD-LF-P MP2005DD-LF-Z MP2005DD-LF MP2005XN
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
MP2005 Resources
-
REFERENCE DESIGN
WIFIREFERENCE DESIGNMPS works closely with Qualcomm to create power solutions for all their WiFi products supporting 802.11ax including WiFi6 standards with 2.4GHz/5GHz/6GHz bands The MPS components on these reference designs are carefully selected to meet price and performance objectives of these designs. Please contact your regional MPS contact or use the displayed link below for assistance
-
APPLICATION
NETWORK-ATTACHED STORAGE (NAS)APPLICATIONNetwork-attached storage (NAS) is a data storage option that is quickly growing in popularity. A NAS system is a centralized storage server that is connected to a network and able to be accessed by any authorized user within the network. These systems provide convenience and flexibility by being able to be physically stored and maintained on-site, as well as the ability to have their storage scale...
-
APPLICATION
MOBILE PROJECTORSAPPLICATIONMobile projectors are becoming an increasingly popular part of consumer entertainment systems. Consumers have come to expect long battery life, and a broad range of input and connectivity options as part of a satisfying portable viewing experience. These systems must offer high resolution and brightness displays with exceptional audio quality and a user-friendly interface — all while maintaining h...
-
APPLICATION
IP NETWORK CAMERASAPPLICATIONIP network cameras are quickly gaining traction over traditional analog security camera networks. Most IP network cameras serve the same function as analog security cameras but do not require local storage capacity and are connected to a users LAN network. Because of this, they are a popular part of smart home systems and security. Ever-growing user expectations and increasing concern about both d...
-
APPLICATION
RAID & HBA CARDSAPPLICATIONTodays computers require RAID and HBA cards that can seamlessly manage storage and network connectivity. The need for reliable, secure connections and storage is only growing with IoT and the popularity of smart devices. RAID and HBA cards must offer higher bandwidth and density and secure functionality to increase capabilities, such as networking, processing, or storage for end consumers. Our br...
-
APPLICATION
USB TYPE-CAPPLICATIONUSB Type-C, also known as USB-C, is the latest improvement to gain popularity for fast data transfers and effective power delivery. This small, convenient connector shape makes it easy for consumers to charge devices and transfer data. As USB Type-C is being included with more and more mobile devices, it is set to replace its larger USB 2.0 predecessor. These connectors function as crucial element...
-
REFERENCE DESIGN
ZYNQ ULTRASCALE+ MPSOC DISCRETE PMIC POWER SOLUTIONREFERENCE DESIGNThis is a power solution for AMD Xilinx Zynq UltraScale+ MPSoC’s XCZU3EG using discrete PMICs and LDOs. This solution meets the tight regulation of each rail in a small footprint.
-
REFERENCE DESIGN
ZYNQ ULTRASCALE + MPSOC PMIC MODULE POWER SOLUTIONREFERENCE DESIGNThis is a power solution for AMD Xilinx Zynq UltraScale+ MPSoC’s XCZU3EG using PMIC modules and LDOs. This solution meets the tight regulation of each rail in a small footprint.
-
REFERENCE DESIGN
VERSAL AI EDGE (AUTOMOTIVE) FULL POWER MANAGEMENT REFERENCE DESIGNREFERENCE DESIGN -
REFERENCE DESIGN
VERSAL AI EDGE (AUTOMOTIVE) –M, H DEVICES REFERENCE DESIGNREFERENCE DESIGN -
REFERENCE DESIGN
ARTIX ULTRASCALE+ AU10P/15P MINIMUM RAILS – HIGHEST POWER REFERENCE DESIGNREFERENCE DESIGN -
REFERENCE DESIGN
ZU1/2/3 MINIMUM RAILS HIGHEST POWERREFERENCE DESIGN -
REFERENCE DESIGN
ARTIX ULTRASCALE+ AU20P/25P MINIMUM RAILS – LOWEST COSTREFERENCE DESIGN -
REFERENCE DESIGN
ARTIX ULTRASCALE+ AU10P/15P MINIMUM RAILS – SMALLEST SIZEREFERENCE DESIGN -
REFERENCE DESIGN
ZU1/2/3 FULL POWER MANAGEMENT – SMALLEST SIZEREFERENCE DESIGN -
REFERENCE DESIGN
SPARTAN 7 PMIC SOLUTION WITH POWER SEQUENCING FOR HIGH POWER APPLICATIONS (4-12VIN)REFERENCE DESIGNThis reference design is intended for powering AMD Xilinx Spartan7 family of FPGAs (S6 - S100). This PMIC based solution combines a small footprint with good efficiency and tight regulation for a low cost solution. The internal sequencer ensures power up and power down sequencing requirements. MP5470 PMIC has 4x bucks, Vin range 6.5V to 16V, I2C support and available in a 3x4mm QFN package. ...
-
REFERENCE DESIGN
SPARTAN 7 SMALLEST SIZE MODULE SOLUTION (HIGH POWER APPLICATIONS)REFERENCE DESIGNThis reference design is intended for powering AMD Xilinx Spartan7 family of FPGAs (S6 - S100). This PMIC Module based solution combines a small footprint with good efficiency and tight regulation for a low cost solution. The internal sequencer ensures power up and power down sequencing requirements. MPM54304 has 4x bucks, Vin range of 4V to 16V, I2C support and is available in a 7mmx7mm LGA packa...
-
REFERENCE DESIGN
VU57P ULTRASCALE+ EXTENDED PORTFOLIO SMALLEST SIZE POWER MANAGEMENT REFERENCE DESIGNREFERENCE DESIGN -
REFERENCE DESIGN
VU57P ULTRASCALE+ EXTENDED PORTFOLIO HIGHEST SIZE POWER MANAGEMENT REFERENCE DESIGNREFERENCE DESIGN -
REFERENCE DESIGN
ZYNQ ULTRASCALE+ MPSOC REFERENCE DESIGN FOR 3V-6V BATTERY APPLICATIONSREFERENCE DESIGN -
REFERENCE DESIGN
ZYNQ ULTRASCALE+ MPSOC REFERENCE DESIGN FOR 6V-16V BATTERY APPLICATIONSREFERENCE DESIGN -
REFERENCE DESIGN
ZYNQ ULTRASCALE+ MPSOC 8 RAIL DISCRETE POWER MANAGEMENT REFERENCE DESIGNREFERENCE DESIGNThis is a scalable design for powering the AMD Xilinx Zynq UltraScale+ MPSoC family (ZU2 to ZU19). This discrete solution combines a small footprint with excellent efficiency and tight regulation. An external sequencer meets power up and power down sequencing requirements.
-
REFERENCE DESIGN
HIGH POWER SOLUTION FOR VIRTEX ULTRASCALEREFERENCE DESIGN -
REFERENCE DESIGN

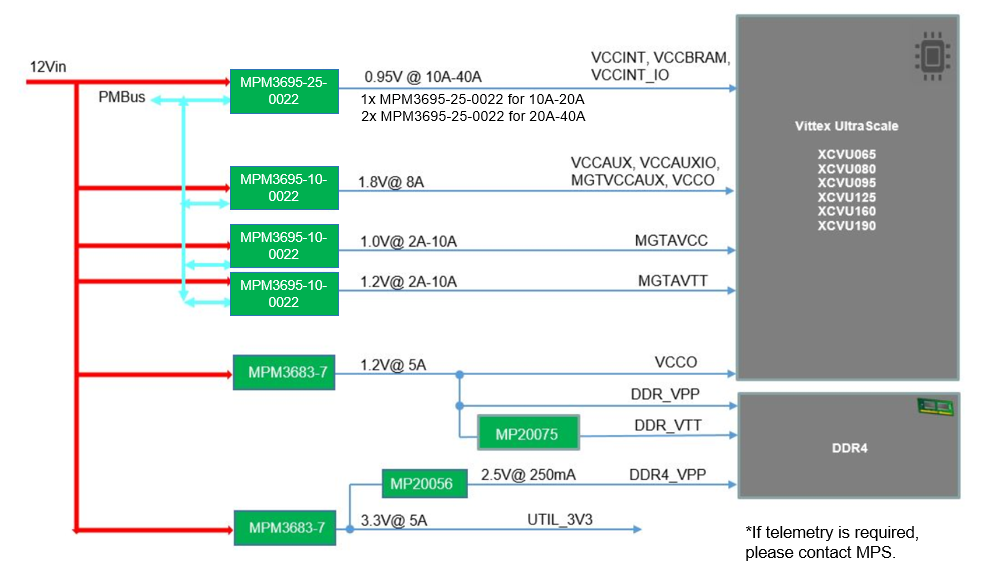

LOW TO MEDIUM POWER SOLUTION FOR VIRTEX ULTRASCALEREFERENCE DESIGN -
REFERENCE DESIGN

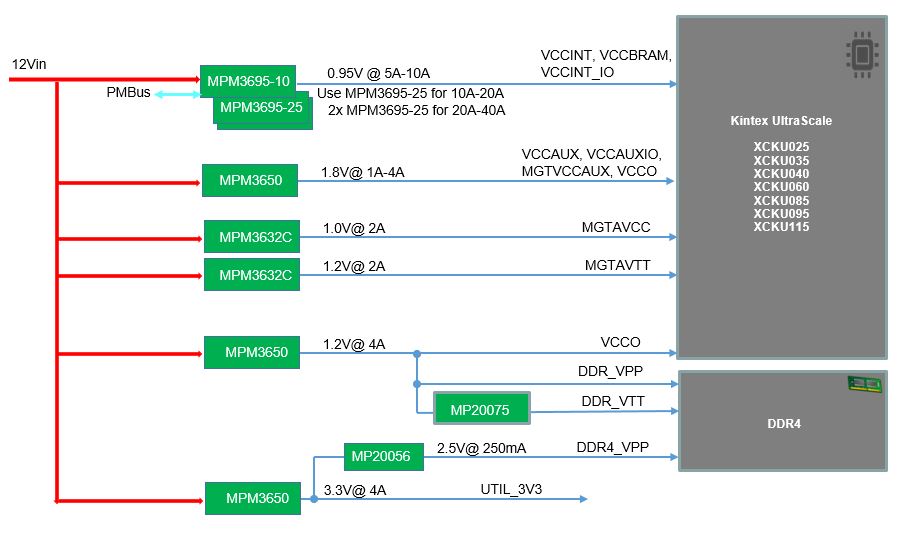

SCALABLE POWER SOLUTION FOR KINTEX ULTRASCALEREFERENCE DESIGN
