MP6619

5.4V to 28V, 5A, H-Bridge Motor Driver

Datasheet

Description

The MP6619 is an H-bridge motor driver that operates from a supply voltage up to 28V and delivers a motor current up to 5A. The MP6619 is ideally suited to drive a brushed DC motor.

The MP6619 also has cycle-by-cycle current limiting. Full protection features include over-current protection (OCP), input over-voltage protection (OVP), under-voltage lockout (UVLO), and
thermal shutdown.

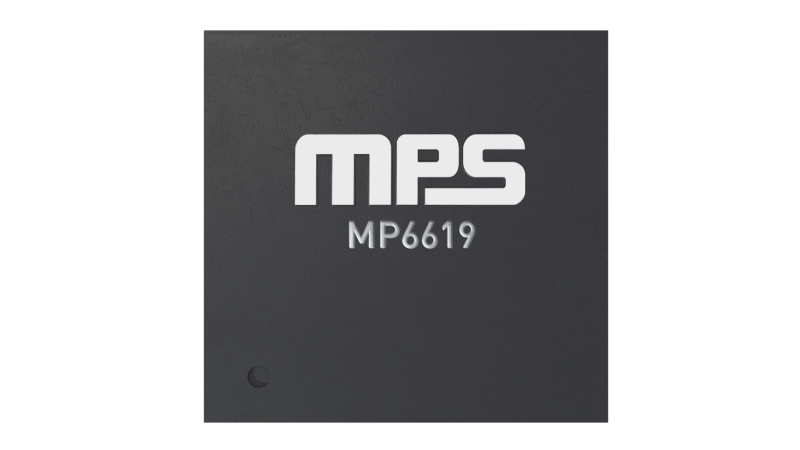

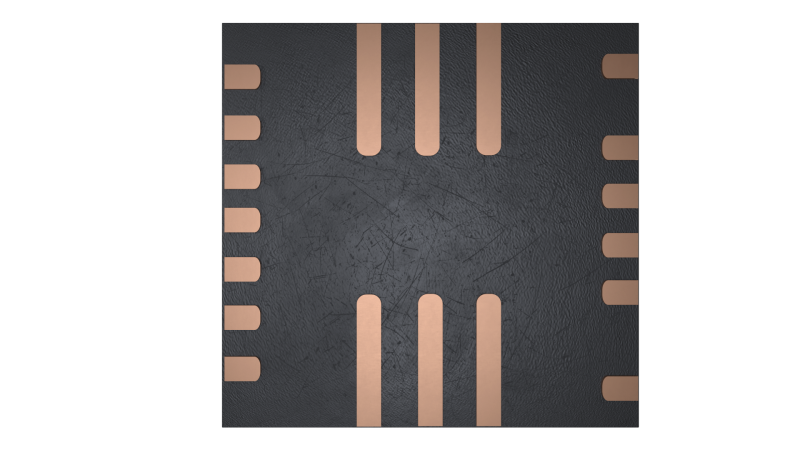

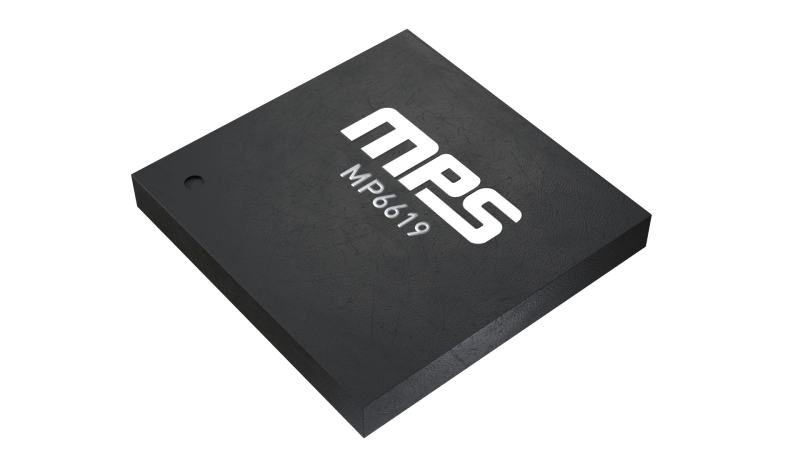

The MP6619 is available in a QFN-19 (3mmx3mm) package.

Advantages Include:

Fast response
Cycle-by-cycle current limiting
65mΩ low RDS(ON)
Robust protection functions and fault indication

Features & Benefits

Wide 5.4V to 28V Operating Input Range
Up to 5A Peak Output Current
Internal H-Bridge Driver
Cycle-by-Cycle Current Limiting
65mΩ RDS(ON) for Each Half-Bridge MOSFET
100% Duty Cycle Operation of H-Bridge
1μA Shutdown Mode
Output Short-Circuit Protection (SCP)
Input Over-Voltage Protection (OVP)
Under-Voltage Lockout (UVLO)
Over-Temperature Shutdown
Fault Indication Output
Available in a QFN-19 (3mmx3mm) Package

Active Part Numbers:

MP6619GQ-P MP6619GQ-Z
