Description
The MPQ6519 is a monolithic, step-down current-source driver for applications that require accurate and fast current-response control. The MPQ6519 achieves up to 5A of output current with excellent load and line regulation over a wide input supply range.
The four integrated MOSFET H-bridge controls provide a fast dynamic load response and an ultra-high efficiency solution. For ease of use, the output polarity can be controlled by pulling MODE high or low. By setting the full-scale output current through an external resistor, the output current can be dimmed by the PWM input signal from 0% to 100% of the full-scale current range.
Full protection features include open-load protection, load-short protection, over-current protection (OCP), over-temperature protection (OTP), and input over-voltage protection (OVP).
The MPQ6519 is available in a QFN-19 (4mmx4mm) package.

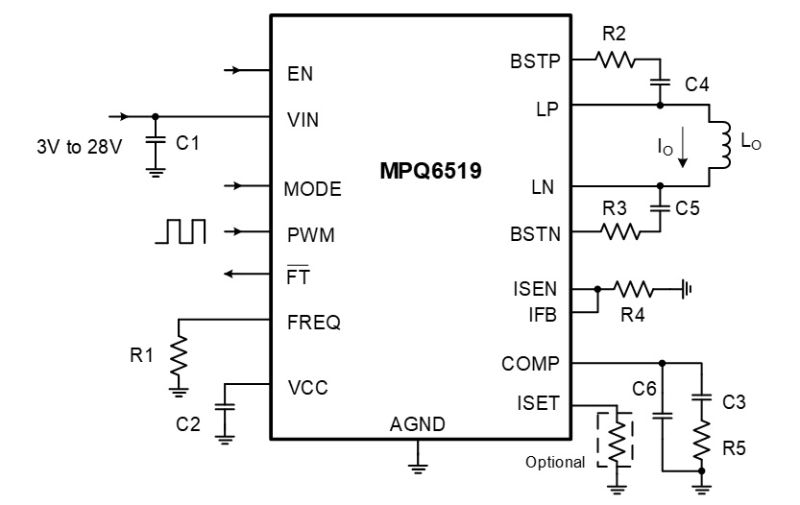

Advantages Include:
- Wide 3V to 28V operating input range, up to 5A output current
- Configurable full-scale current, up to 94% efficiency
- Low 130mΩ HS-FET and LS-FET on resistance
- Protection features: short-circuit protection (SCP), over-current protection (OCP), over-temperature protection (OTP), over-voltage protection (OVP)
- Available in AEC-Q100 Grade 1
-
Show more
Show less
Features & Benefits
- H-Bridge Current Regulator:
- Wide 3V to 28V Operating Input Range
- Up to 5A Output Load Current
- ±2% Accuracy at Full-Scale Reference
- 65mΩ RDS(ON) for Each H-Bridge MOSFET
- 100% Duty Cycle Operation
- 30kHz to 300kHz Configurable Switching Frequency (fSW)
- 20kHz to 100kHz PWM Input for Current Regulation
- Programmable Full-Scale Current:
- Up to 94% Efficiency
- Selectable Current Polarity Mode
- Auto-Disabled Switching via Pulse-Width Modulation (PWM) Input Detection
- Protection Features and Package:
- OCP, SCP, OVP, OTP, and Open-Load Protection
- Available in a QFN-19 (4mmx4mm) Package
- Available in AEC-Q100 Grade 1
Active Part Numbers:
MPQ6519GR-AEC1-Z MPQ6519GR-AEC1-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
