MP6550A
Active Part Numbers:
MP6550AGG-Z MP6550AGG-P
Meaning of P & Z
Related Products

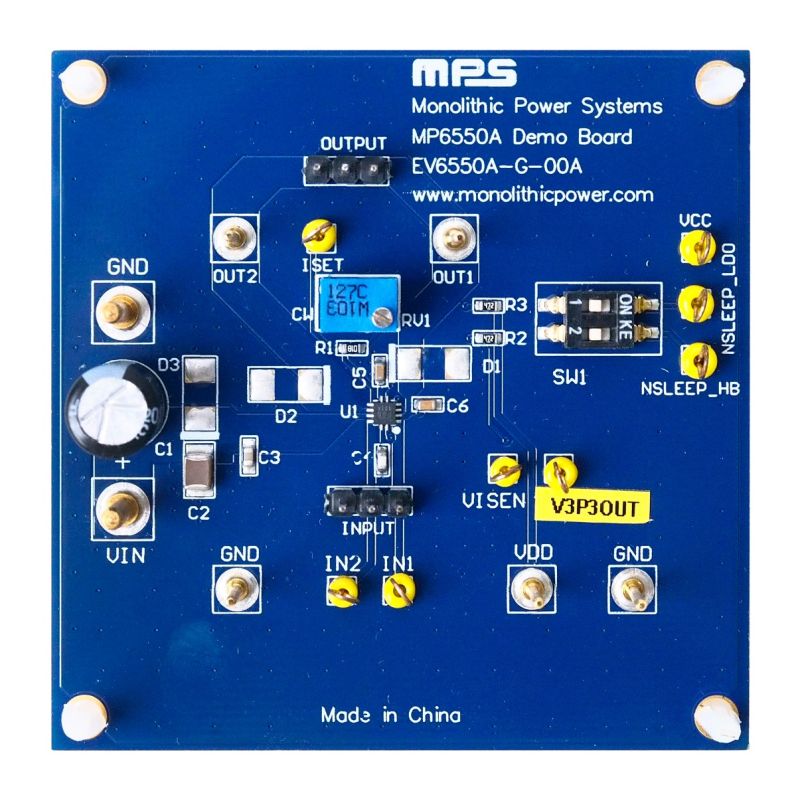

EV6550A-G-00A 1.8V to 22V, 2A, H-Bridge Motor Driver Evaluation Board
The EV6550A-G-00A is an evaluation board designed to demonstrate the capabilities of the MP6550A, an H-bridge motor driver. The device is typically used to drive a brushed DC motor. It operates from a 1.8V to 22V input supply voltage (VIN), and can achieve up to 2A of motor output current (IOUT).
The MP6550A features a pulse-width modulation (PWM) interface that is compatible with industry-standard devices. A very low standby circuit current can be achieved when the device is disabled.
The MP6550A is available in a QFN-12 (2mmx2mm) package.

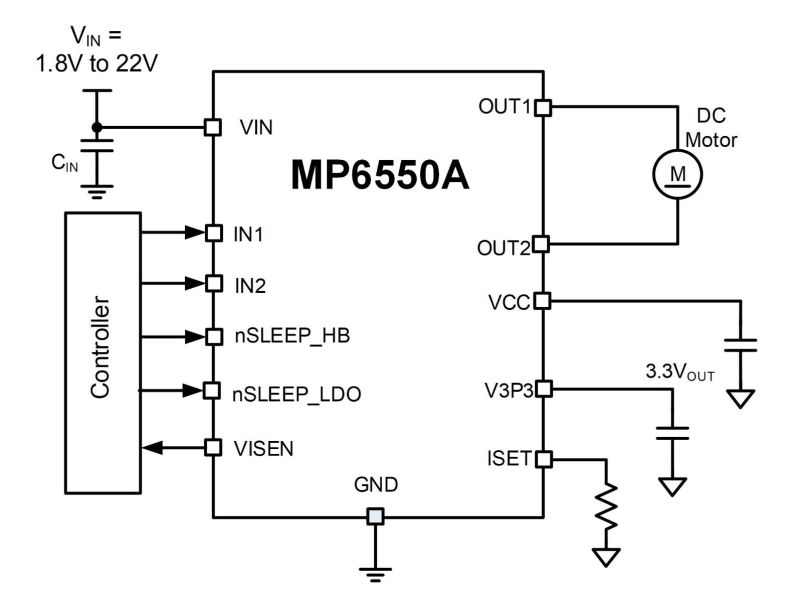

1.8V to 22V, 2A, H-Bridge Motor Driver
