1.8V to 22V, 2A, H-Bridge Motor Driver Evaluation Board

Description

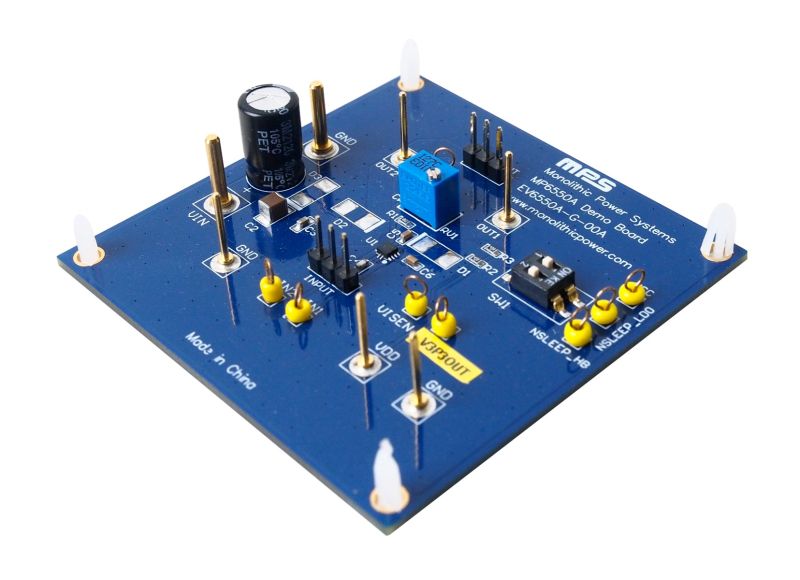

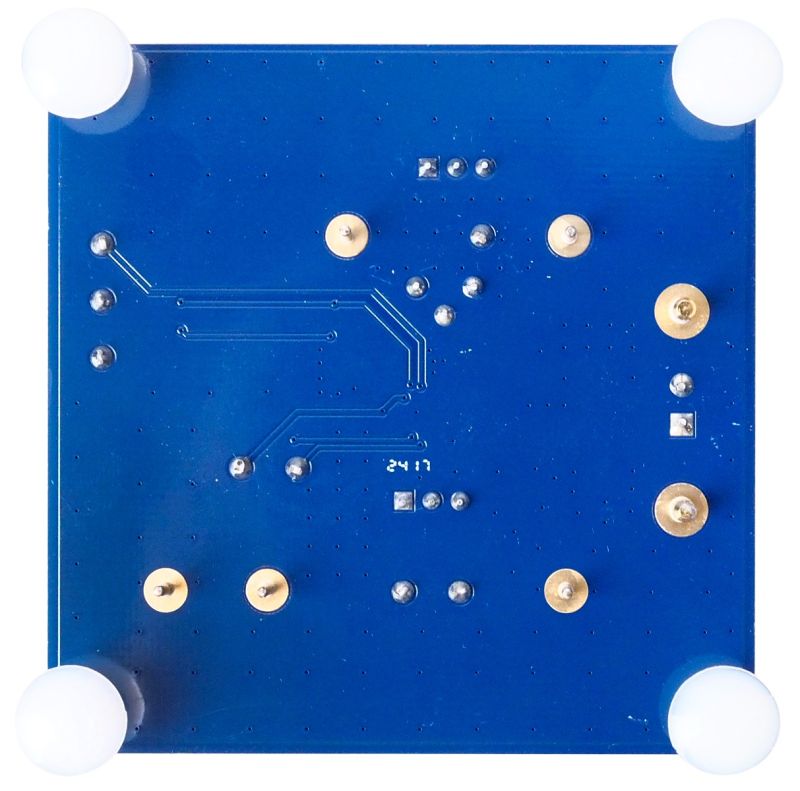

The EV6550A-G-00A is an evaluation board designed to demonstrate the capabilities of the MP6550A, an H-bridge motor driver. The device is typically used to drive a brushed DC motor. It operates from a 1.8V to 22V input supply voltage (V_IN), and can achieve up to 2A of motor output current (I_OUT).

The MP6550A features a pulse-width modulation (PWM) interface that is compatible with industry-standard devices. A very low standby circuit current can be achieved when the device is disabled.

The MP6550A is available in a QFN-12 (2mmx2mm) package.

Product Evaluated

Features & Benefits

Wide 1.8V to 22V Operating Input Voltage (V_IN) Range
2A of Continuous Driver Current
MOSFET On Resistance (R_DS(ON)): High-Side MOSFET (HS-FET) + Low-Side MOSFET (LS-FET) = 240mΩ
Cycle-by-Cycle Current Regulation/Limit
Built-In 3.3V Reference Output
Pulse-Width Modulation (PWM) Input
Interface Compatible with Industry-Standard Devices, Up to 100kHz
Low Standby Circuit Current
Thermal Shutdown
Internal Charge Pump
Cycle-by-Cycle Over-Current Protection (OCP)
Short-Circuit Protection (SCP)
Available in a QFN-12 (2mmx2mm) Package

Active Part Numbers:

EV6550A-G-00A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$50.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
