MP1930

Max 75V, 10A, Integrated Half-Bridge Power Stage in a QFN-26 (7mmx7mm) Package

Datasheet

Shopping Cart

Order

Overview
Related Products
Design Resources
Technical Forum
Quality
Order

MP1930

MP1930

Max 75V, 10A, Integrated Half-Bridge Power Stage in a QFN-26 (7mmx7mm) Package

Datasheet

Description

The MP1930 is an integrated gate driver with two N-channel MOSFETs. It can achieve a high switching frequency (f_SW) and high efficiency due to optimal dead time (DT) control and reduced parasitic inductance.

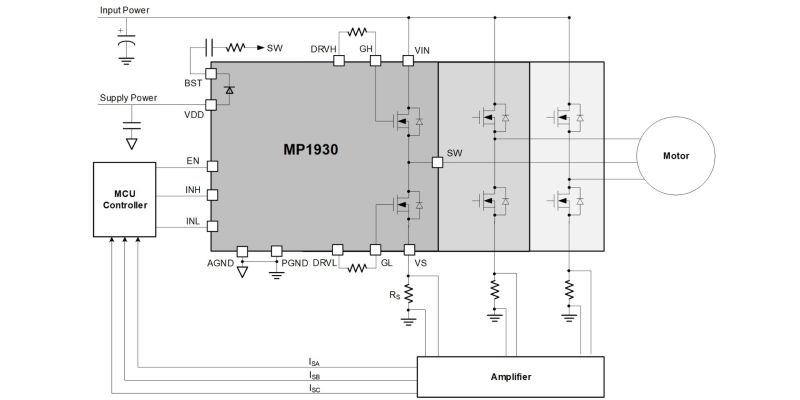

The MP1930 can be used as a motor driver power stage and DC/DC power converter, reducing space significantly.

The MP1930 is available in a QFN-26 (7mmx7mm) package.

Features & Benefits

Recommended 75V Maximum Input Voltage (V_IN)
Simple Logic Interface
Up to 10A of Continuous Output Current (I_OUT)
Transistor-to-Transistor Logic (TTL)-Compatible Input
On-Chip Bootstrap (BST) Diode
Under-Voltage Lockout (UVLO) for Both the High-Side (HS) and Low-Side (LS) Pre-Drivers
Quiescent Current (I_Q) Below 130μA
Available in a QFN-26 (7mmx7mm) Package

Active Part Numbers:

MP1930GQN-Z MP1930GQN-P

Meaning of P & Z

Related Products

EV1930-QN-01A 10A, 75V, Integrated Half-Bridge Evaluation Board

The EV1930-QN-01A evaluation board is designed to demonstrate the capabilities of the MP1930, an integrated gate driver with one half-bridge consisting of two N-channel MOSFETs.

The EV1930-QN-01A operates from a maximum 75V power input voltage (V_IN) and 18V supply voltage (V_DD). The MP1930 can deliver up to 10A of continuous output current (I_OUT). The driving logic signals are generated by an external controller.

$50.00
+ tax

Design Resources

Symbol, Footprint & 3D Model

30+ more formats Show more

Show more

Cad Symbols

Symbols (36)

Cad Footprints

Footprint (34)

Cad 3D Models

3D Models (15)

Buy direct from MPS

Standard Pricing

In stock

MP1930GQN-Z MP1930GQN-P

Package: QFN-26 (7x7)

2,500 per Reel

Buy Now Price $1.91 1K

Quantity Unit Price
1

$3.74
10

$2.84
100

$2.35
250

$2.23
500

$2.16
1K

$1.91

Special Pricing Available for
Larger Quantities Quote

In stock now: 50,000

Order now, up to 50,000 estimated to ship by 16 Jul, 2025

Lead Time For Additional Quantities

Additional quantities estimated to ship by 31 Oct, 2025

Arrives 3-4 business days. Shipping only $5 per order.

MPS Pay: Pay by Invoice Net30 Terms Learn More

Create myMPS+ account for Free Samples
