MP6543A

12V, 2A, Three-Phase Power Stage with HS and LS Inputs

Datasheet

Description

The MP6543 family of products are all three-phase brushless DC motor drivers. They integrate three half-bridges, consisting of six N-channel power MOSFETs, along with pre-drivers, gate drive power supplies, and current-sense amplifiers.

The MP6543 has ENABLE and PWM inputs for each ½-H-bridge. The MP6543A has separate high-side and low-side inputs, while the MP6543B has Hall-element inputs. Otherwise, they are similar. References to the MP6543 in this document apply to the other parts, unless otherwise noted.

The MP6543 is able to deliver up 2A continuously (depending on thermal and PCB conditions), with the adjustable over-current protection threshold. It uses an internal charge pump to generate the gate drive supply voltage for the high-side MOSFETs, and a trickle-charge circuit to maintain sufficient gate drive voltage to operate at 100% duty cycle.

Internal safety features include thermal shutdown, under-voltage lockout (UVLO), and over-current protection (OCP).

The MP6543, MP6543A, and MP6543B are available in a 24-pin, 3mmx4mm QFN package with an exposed thermal pad.

Features & Benefits

3V to 12V Operating Supply Voltage
Three Integrated Half-Bridge Drivers
2A Continuous Output Current
MOSFET On Resistance: 110mΩ per FET
MP6543: ENBL & PWM Inputs
MP6543A: LS & HS Inputs
MP6543B: Hall-Signal Inputs
Built-In 3.3V, 100mA LDO Regulator
Internal Charge Pump Supports 100% Duty Cycle Operation
Automatic Synchronous Rectification
Under-Voltage Lockout (UVLO) and Thermal Shutdown Protection
Over-Current Protection (OCP) with Adjustable Threshold
Integrated Bidirectional Current-Sense Amplifiers
Available in a QFN-24 (3mmx4mm)e

Active Part Numbers:

MP6543AGL-P MP6543AGL-Z

Meaning of P & Z

Evaluation Tools

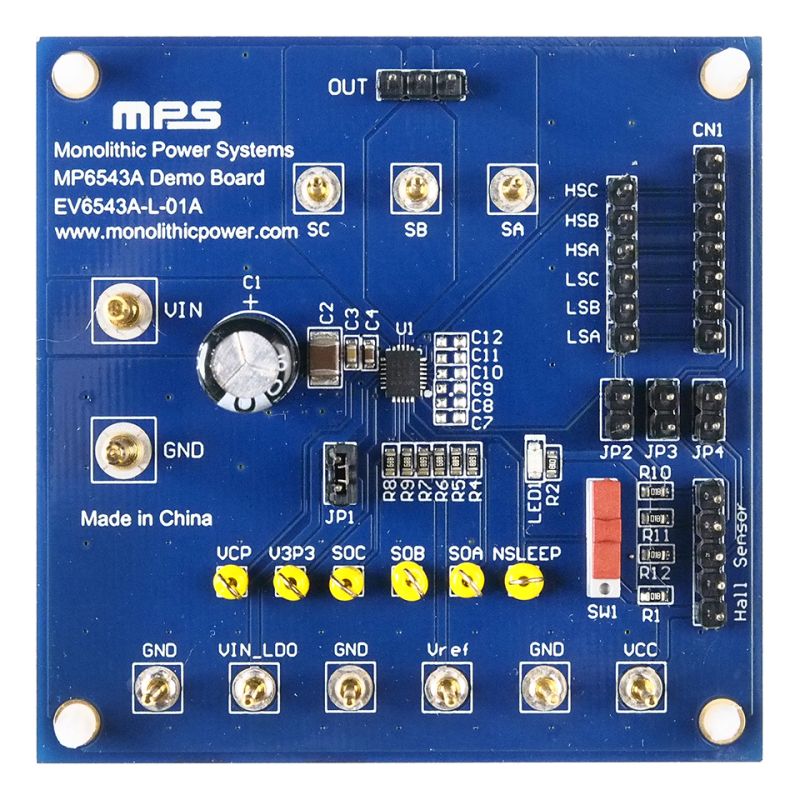

EV6543A-L-01A Evaluation Kit 3V to 12V, LS & HS Input, Three-Phase Brushless DC Motor Driver Evaluation Board

The EV6543A-L-01A is an evaluation board for the MP6543AGL, a three-phase, brushless DC motor driver.

The EV6543A-L-01A operates from a maximum 12V supply voltage. It integrates three half-bridges consisting of six N-channel power MOSFETs. The rotor position information is provided by the Hall sensors assembled in the motor. The driving control signals are generated by an external controller, such as an MCU or FPGA.

$60.00
+ tax
