MP6924A
Fast Turn-Off, CCM/DCM Compatible, Dual LLC Synchronous Rectifier with lmproved Noise Immunity
Session textval
Session Titefor popup
- Pout (max) (W) (Recommended)400
- TypeController
- fsw (max) (kHz)500
- Drain Rating180
- Iop (mA)16
- Min On Time (ns)1100
- Iq (mA)4.6
- Turn-On Threshold (mV)-230
- Light-Load FunctionYes
- GradeCatalog
- Package (mm)SOIC-8
- VCC (min) (V)4.2
- VCC (max) (V)35
- Turn-Off Threshold (mV)35
- Turn-On Delay (ns)190
- Power Range DefinedNo
- Vbr (V)180
- Active PFCNo
- IsolatedYes
- Isolated LLCYes
- Isolated FlybackNo
- Non-IsolatedNo
- Secondary Synchronous RectificationYes
- Internal MOSFETNo
- Low Side RectificationYes
- Regular MOSFETYes
- MOSFET with large QgYes
- Discrete DriveYes
- Single ChannelNo
- Dual ChannelYes
- Ideal DiodeNo
- Recommended fsw (kHz)200
- High Side RectificationNo

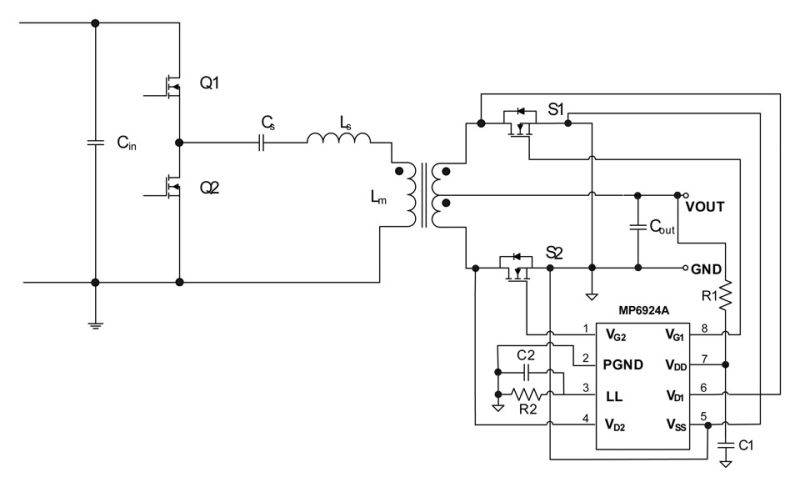

The MP6924A is a dual, fast turn-off, intelligent rectifier for synchronous rectification in LLC resonant converters. The IC drives two N-channel MOSFETs, regulates their forward voltage drop to Vfwd (about 29mV), and turns the MOSFETs off before the switching current goes negative.
The MP6924A has a light-load function to latch off the gate driver under light-load conditions, limiting the current to 175μA. The MP6924A’s fast turn-off enables both continuous conduction mode (CCM) and discontinuous conduction mode (DCM).
The MP6924A requires a minimal number of readily available, standard external components, and is available in an SOIC-8 package.
-
Show more
Show less
Features & Benefits
- Works with Standard and Logic Level MOSFETs
- Compatible with Energy Star
- Fast Turn-Off Total Delay of 35ns
- Wide 4.2V to 35V VDD Operating Range
- 175µA Low Quiescent Current in Light-Load Mode
- Supports CCM, CrCM, and DCM Operation
- Supports High-Side and Low-Side Rectification
- Available in an SOIC-8 Package
Active Part Numbers:
MP6924AGS-P MP6924AGS-Z
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
