MA736

MA736

8-Bit to 12.5-Bit, 3μs Low-Latency, Ultra-Small, Contactless Digital Angle Sensor

Datasheet

Parameters Description

Output Format
SPI
Resolution (bits)
8 to 12.5
Sensor Position
End-of-Shaft and Side-Shaft
Latency (µs)
3
Magnetic Field (min) (mT)
30
fcutoff (Hz)
95, 380, 95000
Vin (min) (V)
3
Vin (max) (V)
3.6
Isupply (mA)
11
Temperature Range (°C)
-40 to +125
Package (mm)
UTQFN-14 (2x2)
Grade
Catalog

The MA736 is a MagAlpha digital angle sensor that detects the absolute angular position of a permanent magnet, typically a diametrically magnetized cylinder on a rotating shaft. Its ultra-small UTQFN package makes it an ideal solution for space-constrained applications. Fast data acquisition and processing provide accurate angle measurements from static angle measurement to high-speed rotation. The digital filtering is adjustable to optimize control loop performance when used in servo motor applications.

This sensor supports a wide range of magnetic field strengths and spatial configurations. Both end-of-shaft and side-shaft (off-axis mounting) configurations are supported.

The MA736 detects the strength of the magnetic field, and includes configurable thresholds that can be used for diagnostic purposes. An on-chip, non-volatile memory (NVM) provides storage for configuration parameters, such as the reference zero-angle and magnetic field detection thresholds. It is also possible to configure the MA736 with volatile registers without accessing the NVM.

The MA736 is available in a UTQFN-14 (2mmx2mm) package.

Features & Benefits

Configurable 8-Bit to 12.5-Bit ±3σ Resolution Absolute Angle Encoder
3μs of Latency at Constant Rotation Speed
SPI Serial Interface for Digital Angle Readout and Chip Configuration
Configurable Magnetic Field Strength Detection for Diagnostic Checks
Non-Volatile Memory (NVM) Read/Write Command Extends Memory Life

3.3V, 11mA Supply Current

-40°C to +125°C Operating Temperature Range

0rpm to 60,000rpm Rotation

Interrupt Out when Angle Change Is Detected

Available in an Ultra-Small UTQFN-14 (2mmx2mm) Package

Active Part Numbers:

MA736GGU-Z MA736GGU-P

Meaning of P & Z

Related Products

EVKT-MagAlpha-MagDiff The EVKT-MagAlpha-MagDiff is a MagAlpha communication kit that connects to the sensor test boards (TMBA) and rotary knob kit, and requires Macom App Software.

The EVKT-MagAlpha-MagDiff is a communication kit for the MagAlpha and MagDiff magnetic position sensor family. The EVKT-MagAlpha-MagDiff offers a seamless connection and operation with all MagAlpha and MagDiff test boards (TBMA).

The EVKT-MagAlpha-MagDiff kit contains a microcontroller (MCU) board, two flat ribbon cables, and a USB cable. It provides an easy and convenient way to read the sensor’s angle and read/write to all configuration registers. Using this kit, it is also possible to compute and configure the angle correction table to further improve the sensor accuracy.

$75.00
+ tax

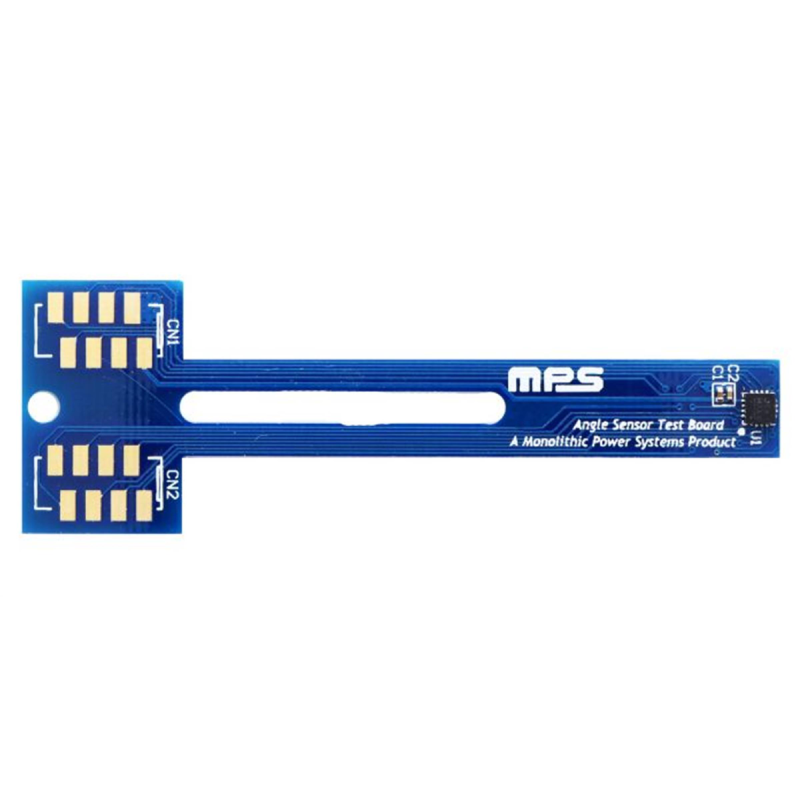

TBMA736-Q-LT-00A
