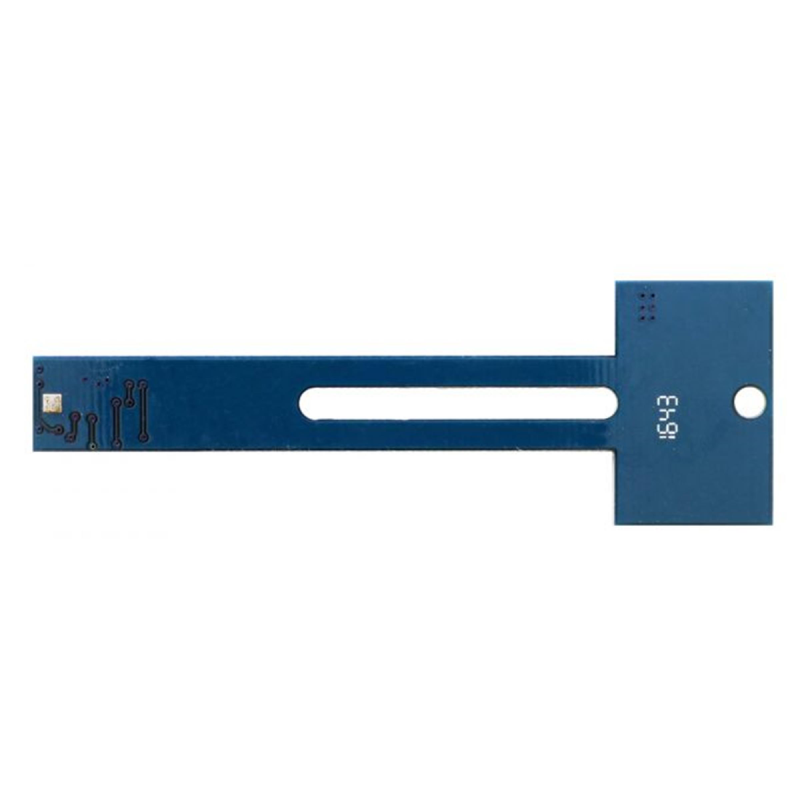

The TBMA736-Q-LT-00A is the long evaluation board for the MA736 MagAlpha magnetic position sensor. The sensor is mounted on the edge of the board, and can therefore be used in both side-shaft and end-of-shaft configurations.

The TBMA736-Q-LT-00A test board is compatible with the MACOM evaluation kit and EVKT-MagAlpha-MagDiff, offering seamless connection and operation of the MA736 MagAlpha magnetic position sensor. In addition, the TBMA736-Q-LT-01A allows users to evaluate MagAlpha functionalities and performances with their own set-up.

The TBMA736-Q-LT-00A only includes the assembled board with the sensor and decoupling capacitors and connectors. It does not include connectors for certain board types.
