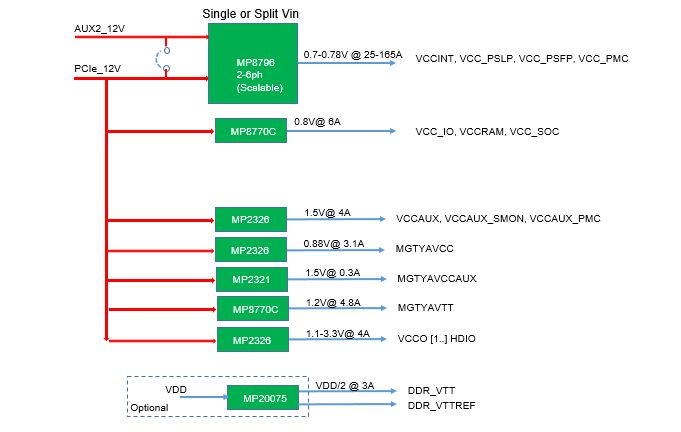

VERSAL ACAP Highest Efficiency 8 Power Rail Reference Design

REFERENCE DESIGN

Design Files:

Test Report

For more information on reference designs

Response within 2 business days

EVREF0105A

MPS Products

Part Number	Quantity	Description
MP8796	1	Request Information
MP8770C	2	3V to 17V, 8A, Synchronous Step-Down Converter with Forced CCM
MP2326	3	4A, 19V, 40µA IQ, High Efficiency, Step-Down Converter with PG and External SS
MP20075	1	3A, DDR Termination Regulator
MP2321	1	19V, 2A, 40µA IQ, High-Efficiency, Constant-On-Time, Step-Down Converter in a QFN (2mmx3mm) Package
EVREF0105A	1	The EVREF0105A Evaluation Board is designed to demonstrate the capabilities of MPS’ highest efficiency Power reference design solution for Xilinx Versal ACAP
