Spartan-7 PMIC Solution with Power Sequencing for High Power Applications (5Vin)

REFERENCE DESIGN

Design Files:

For more information on reference designs

Response within 2 business days

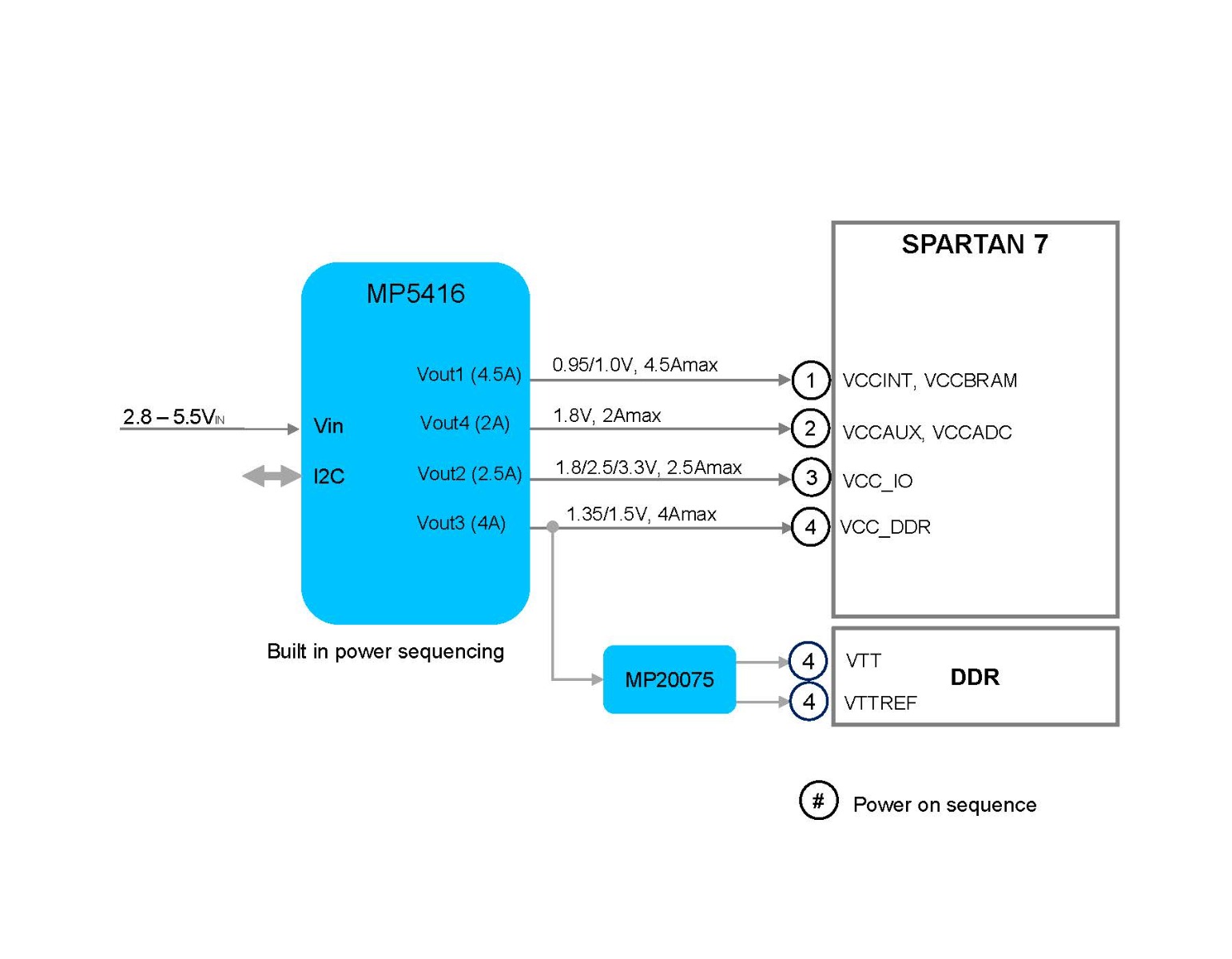

This reference design is intended for powering AMD Xilinx Spartan7 family of FPGAs (S6 - S100). This PMIC based solution combines a small footprint with good efficiency and tight regulation for a low cost solution. The internal sequencer ensures power up and power down sequencing requirements MP5416 PMIC with 4x bucks, 5x LDOs Vin 2.8V to 5.5V I2C support QFN-28 (4mmx4mm) Cost effective Small Footprint: 0.55 sq inches. Minimum External Components Flexible Power Up/Down Sequencing High Efficiency Regulators Adjustable Switching Frequency.
