MPQ2128-AEC1

MPQ2128-AEC1

NOT RECOMMENDED FOR NEW DESIGNS

2.5V-to-6V Input, 3MHz, 1A Synchronous, Step-Down Converter with AEC-Q100 qualification

ALTERNATIVE PART

NRFND Datasheet

MPQ2128-AEC1 continues to be in production for existing customers. Please consider this alternative for new designs:

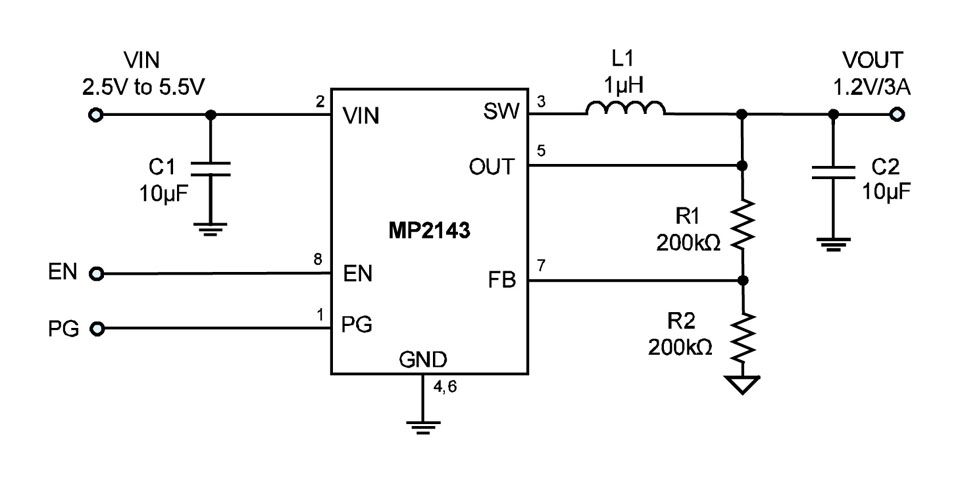

MPQ2143

Industrial Grade, 3A, 5.5V, 1.2MHz, 40μA I_Q, COTSynchronous Step-Down Switcher AEC-Q100 Qualified

Features & Benefits

Guaranteed Industrial/Automotive Temp
Wide 2.5V-to-5.5V Operating Input Range
Output Voltage as Low as 0.6V
100% Duty Cycle in Dropout
Up to 3A Output Current
Low IQ: 40µA
80mΩ and 40mΩ Internal Power MOSFET Switches
Default 1.2MHz Switching Frequency
EN and Power-Good for Power Sequencing
Cycle-by-Cycle Over-Current Protection
Auto Discharge at Power Off
Short-Circuit Protect with Hiccup Mode
Stable with Low-ESR Output Ceramic Capacitors
Available in a TSOT23-8 Package
Available in AEC-Q100 Grade 1

… and many more!

概要
