MP28313

MP28313

NOT RECOMMENDED FOR NEW DESIGNS

2A, 16V, 340KHz Synchronous Rectified Step-Down Converter

ALTERNATIVE PART

NRFND Datasheet

MP28313 continues to be in production for existing customers. Please consider this alternative for new designs:

MP1496S

2A, 16V, 500kHz, Step-Down Converter with external SS

Features & Benefits

Wide 4.5V to 16V Operating Input Range
150mΩ/70mΩ Low-RDS(ON) Internal Power MOSFETs
Proprietary Switching-Loss–Reduction Technique
High-Efficiency Synchronous Mode Operation
Fixed 500kHz Switching Frequency
Can Synchronize with a 300kHz-to-2MHz External Clock
Externally Programmable Soft-Start
OCP Protection and Hiccup
Thermal Shutdown
Output Adjustable Starting from 0.8V
Available in an 8-pin TSOT23 Package

… and many more!

概要

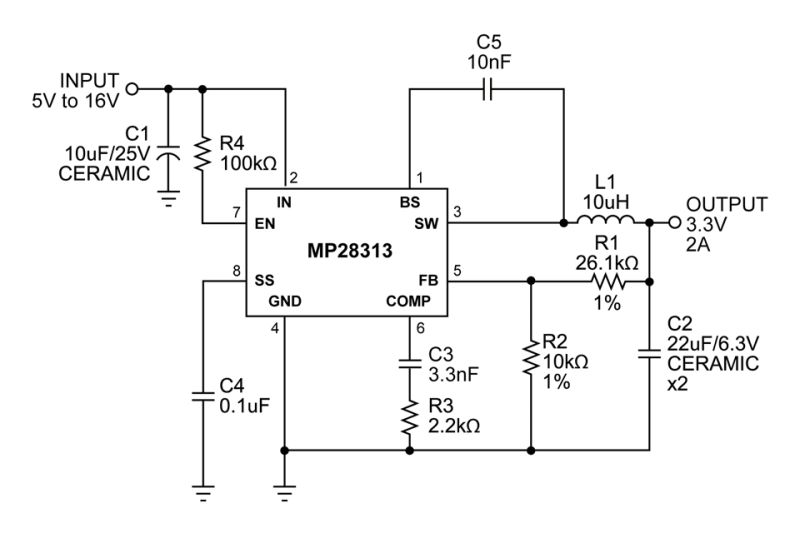

The MP28313 is a monolithic synchronous buck regulator. The device integrates 130mΩ MOSFETS that provide 2A continuous load current over a wide operating input voltage of 5V to 16V. Current mode control provides fast transient response and cycle-by-cycle current limit. An adjustable soft-start prevents inrush current at turn-on. Shutdown mode drops the supply current to 1μA. This device, available in an 8-pin SOIC package, provides a very compact system solution with minimal reliance on external components.
